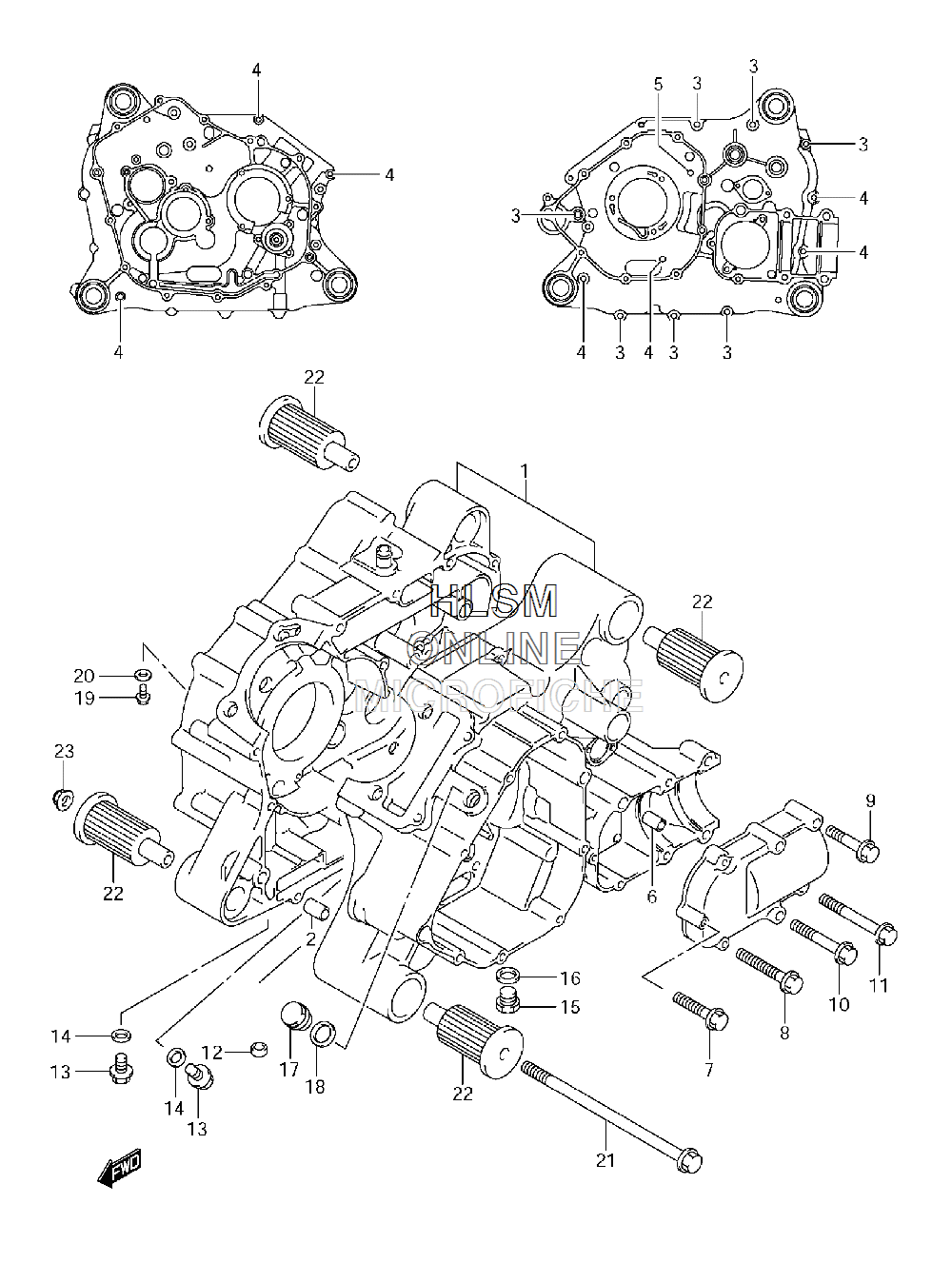

CRANKCASE для Suzuki LT-F250 Ozark 250 - 2008 года выпуска
-
№АртикулНазвание
-
111301-05821 CRANKCASE SET (INC 2-11)CRANKCASE SET (INC 2-11)
-
204211-11189 PIN (10.4X13X18)PIN (10.4X13X18)
-
301547-0640B BOLTBOLT
-
401547-0655B BOLTBOLT
-
501547-0665B BOLTBOLT
-
604211-11189 PIN, SEC CASEPIN, SEC CASE
-
701547-0630B BOLT, SEC CASEBOLT, SEC CASE
-
801547-0640B BOLT, SEC CASEBOLT, SEC CASE
-
901550-0850B BOLT, SEC CASEBOLT, SEC CASE
-
1001550-0860B BOLT, SEC CASEBOLT, SEC CASE
-
1101550-0870B BOLT, SEC CASEBOLT, SEC CASE
-
1211329-09410 JET, OIL GALLERY MISSIONJET, OIL GALLERY MISSION
-
1301550-0610B PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1409168-06018 GASKETGASKET
-
1501550-1016B PLUG, OIL GALLERYPLUG, OIL GALLERY
-
1609168-10002 GASKETGASKET
-
1709247-14015 PLUG, TDCPLUG, TDC
-
1809168-14002 GASKETGASKET
-
1909247-12104 PLUG, OIL DRAINPLUG, OIL DRAIN
-
2009168-12002 GASKETGASKET
-
2109103-10278 BOLTBOLT
-
2211651-05G01 BUSH, ENGINE MTGBUSH, ENGINE MTG
-
2309159-10115 NUTNUT
