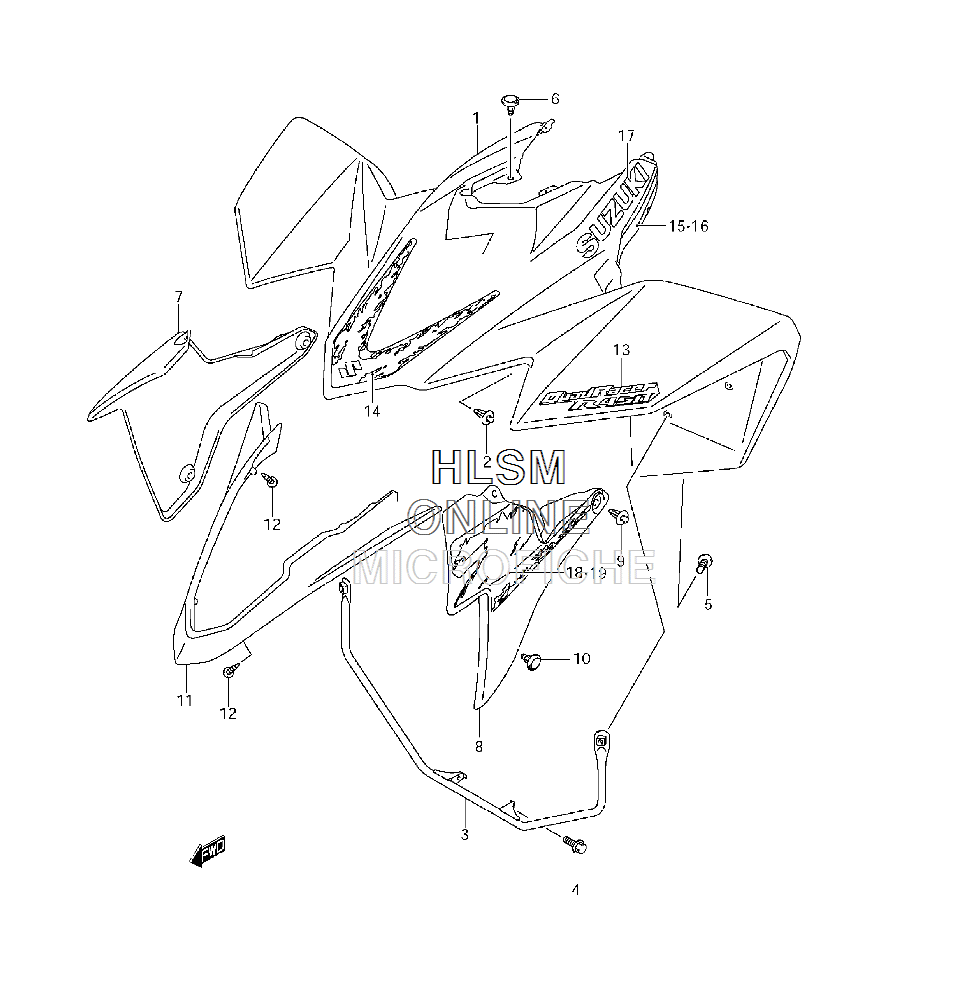

FENDER - FRONT для Suzuki LT R450Z QuadRacer R450 Limited Edition - 2008 года выпуска
-
№АртикулНазвание
-
153111-45G00-019 FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
209409-08335 CLIPCLIP
-
353210-45G00 BRACKET, FRONT FENDERBRACKET, FRONT FENDER
-
401550-0812A BOLTBOLT
-
509139-06152 SCREWSCREW
-
609409-08327 CLIPCLIP
-
753112-45G00-019 COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
853122-45G00-019 COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
909409-07333 CLIPCLIP
-
1009409-08327 CLIP, LOWERCLIP, LOWER
-
1153119-45G00-019 COVER, HEADLAMP (BLACK)COVER, HEADLAMP (BLACK)
-
1203541-0516A SCREWSCREW
-
1368151-45G10-EUT EMBLEM, ''450''EMBLEM, ''450''
-
1468155-45G60-EUR TAPE, FRONTTAPE, FRONT
-
1568155-45G70-ANS TAPE, REAR RIGHT HANDTAPE, REAR RIGHT HAND
-
1668156-45G70-ANS TAPE, REAR LEFT HANDTAPE, REAR LEFT HAND
-
1768661-29F00-BJB EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
-
1868155-45G80-ANS TAPE, SIDE COVER RIGHT HANDTAPE, SIDE COVER RIGHT HAND
-
1968156-45G80-ANS TAPE, SIDE COVER LEFT HANDTAPE, SIDE COVER LEFT HAND
