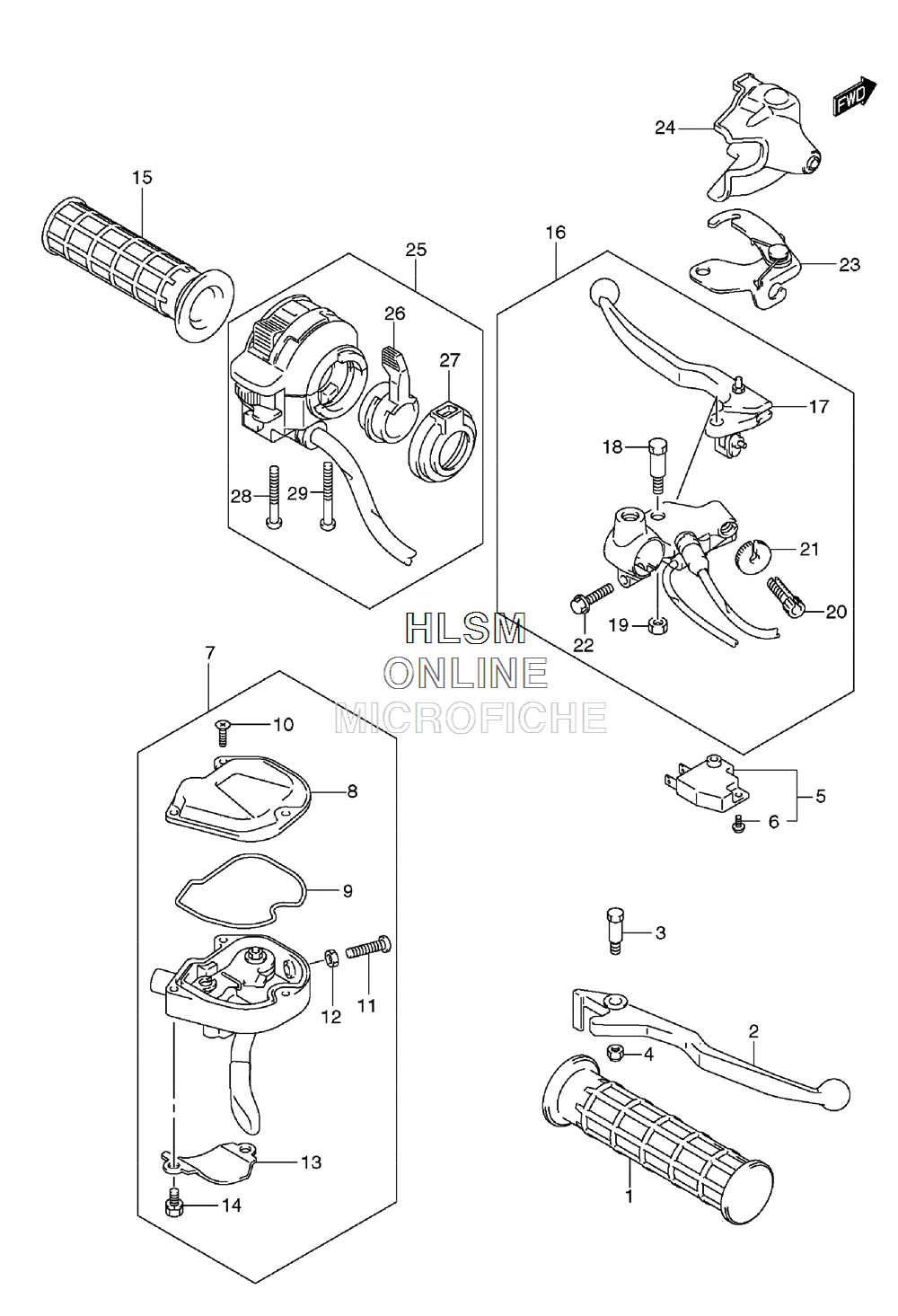

HANDLEBAR - LEVERS / SWITCHES для Suzuki LT-A400F KingQuad 400AS 4x4 Auto - 2009 года выпуска
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257421-39D20 LEVER, BRAKELEVER, BRAKE
-
357431-04F00 BOLT, PIVOTBOLT, PIVOT
-
457433-09F00 NUTNUT
-
557460-17C11 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
657465-17C00 SCREWSCREW
-
757100-27H01 CASE ASSY, THROTTLE (INC 8-14)CASE ASSY, THROTTLE (INC 8-14)
-
857121-27H00 CAPCAP
-
957157-27H00 GASKETGASKET
-
1057128-07G00 SCREWSCREW
-
1102112-0520B SCREWSCREW
-
1208310-0005B NUTNUT
-
1357126-07G00 HOLDERHOLDER
-
1457127-07G00 BOLT, HOLDERBOLT, HOLDER
-
1557211-21G10 GRIPGRIP
-
1657501-27H00 LEVER ASSY, REAR BRAKE (INC 17-22)LEVER ASSY, REAR BRAKE (INC 17-22)
-
1757620-27820 LEVERLEVER
-
1857431-09F00 BOLT, PIVOTBOLT, PIVOT
-
1908319-2106B NUTNUT
-
2057441-08C00 ADJUSTER, WIREADJUSTER, WIRE
-
2157442-08C00 NUT, WIRENUT, WIRE
-
2201547-0620B BOLTBOLT
-
2357790-38FA0 STOPPER, BRAKE LEVERSTOPPER, BRAKE LEVER
-
2457541-38FA0 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
2537400-27H00 SWITCH ASSY, LEFT HAND (INC 26-29)SWITCH ASSY, LEFT HAND (INC 26-29)
-
2637571-19B01 LEVER, CHOKELEVER, CHOKE
-
2737576-19B01 COVER, CHOKECOVER, CHOKE
-
2802112-05407 SCREWSCREW
-
2902112-05457 SCREWSCREW
