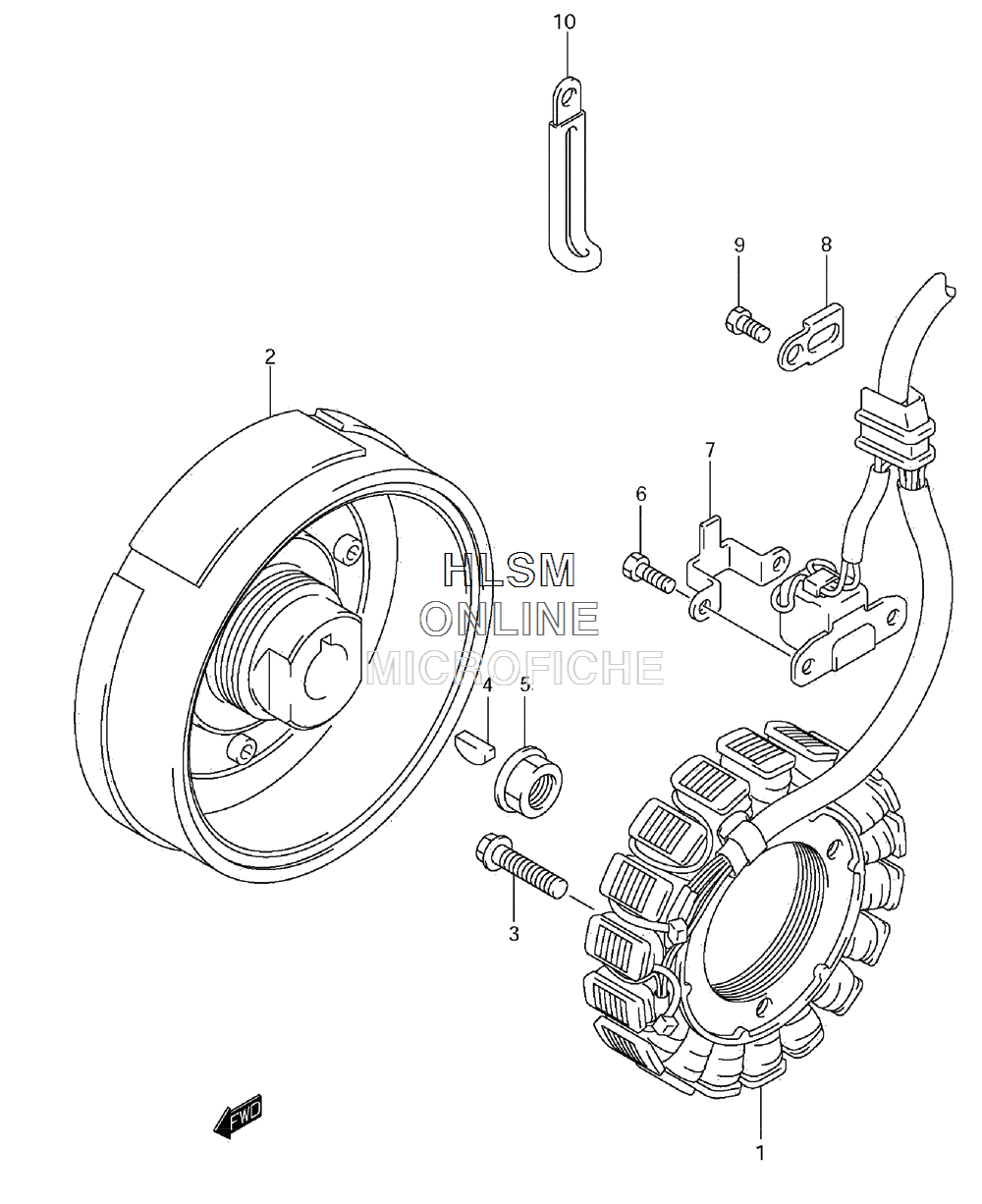

MAGNETO для Suzuki LT-A400FC KingQuad 400AS 4x4 Auto (Camo) - 2009 года выпуска
-
№АртикулНазвание
-
132101-27H00 STATOR ASSYSTATOR ASSY
-
232102-27H00 ROTOR ASSYROTOR ASSY
-
301547-0625B BOLT, MAGNETOBOLT, MAGNETO
-
408341-31059 KEY, MAGNETOKEY, MAGNETO
-
531792-18A00 NUT, MAGNETO ROTORNUT, MAGNETO ROTOR
-
609100-05019 BOLT, SENSOR (5X10)BOLT, SENSOR (5X10)
-
731497-45000 CLAMP, MAGNETO NO.1CLAMP, MAGNETO NO.1
-
832371-32E00 CLAMP, MAGNETO NO.2CLAMP, MAGNETO NO.2
-
909100-05019 BOLT, CLAMP NO.2 (5X10)BOLT, CLAMP NO.2 (5X10)
-
1009404-06433 CLAMP, MAGNETO NO.3 (L:80)CLAMP, MAGNETO NO.3 (L:80)
