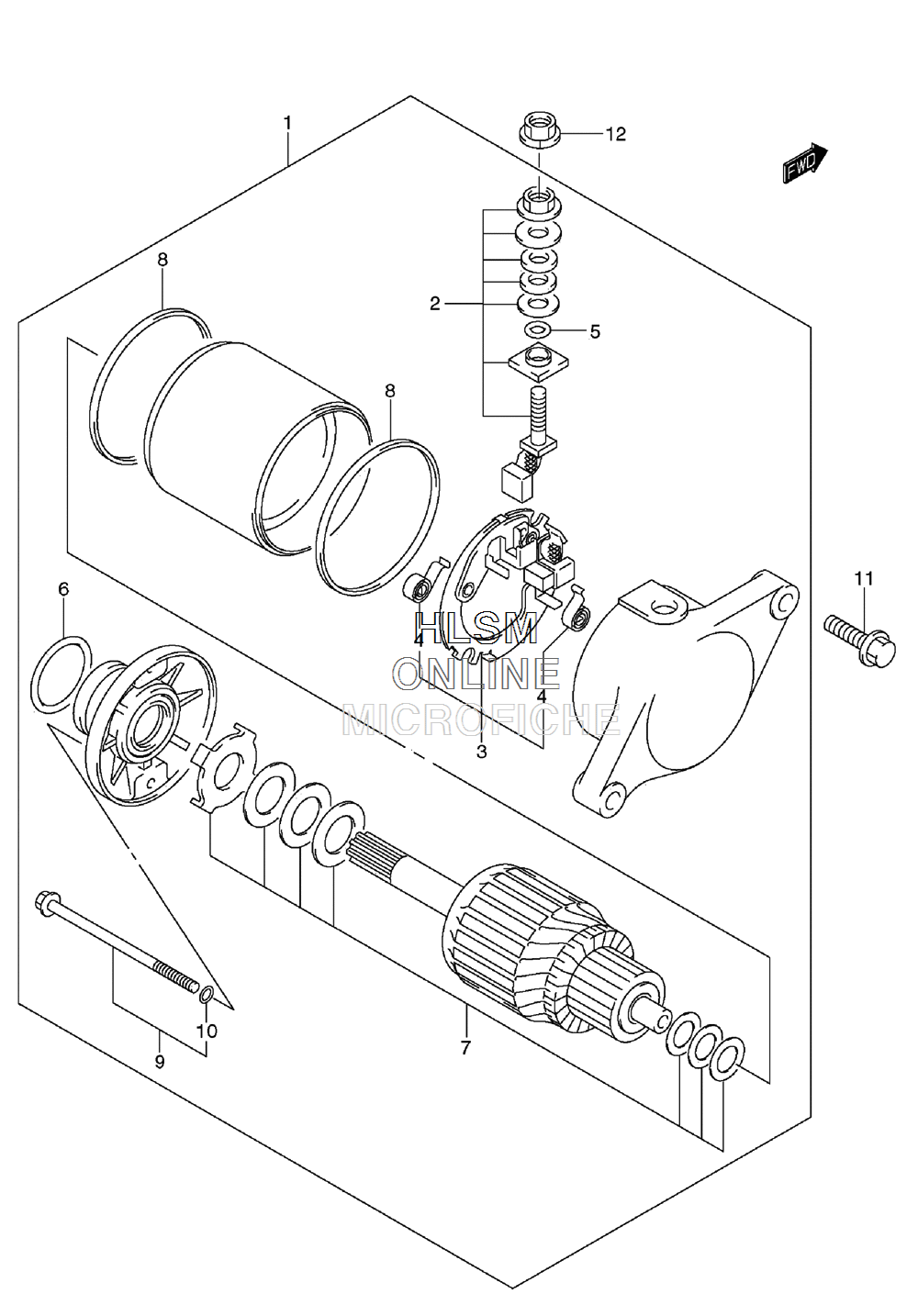

STARTING MOTOR для Suzuki LT-F400FC KingQuad 400FS 4x4 (Camo) - 2009 года выпуска
-
№АртикулНазвание
-
131100-38F00 MOTOR ASSY, STARTING (INC 2-10)MOTOR ASSY, STARTING (INC 2-10)
-
231130-13E00 BRUSH TERMINAL SETBRUSH TERMINAL SET
-
331132-13E00 BRUSH HOLDER SET (INC 4)BRUSH HOLDER SET (INC 4)
-
431135-31300 SPRING, BRUSHSPRING, BRUSH
-
531143-49040 O RINGO RING
-
609280-24003 O RINGO RING
-
731170-19B10 WASHER SETWASHER SET
-
831264-13E00 O RINGO RING
-
931280-13E00 BOLT (INC 10)BOLT (INC 10)
-
1031156-13E00 O RINGO RING
-
1109103-06212 BOLT, STARTING MOTOR (6X25)BOLT, STARTING MOTOR (6X25)
-
1208361-3506A NUT, STARTING MOTORNUT, STARTING MOTOR
