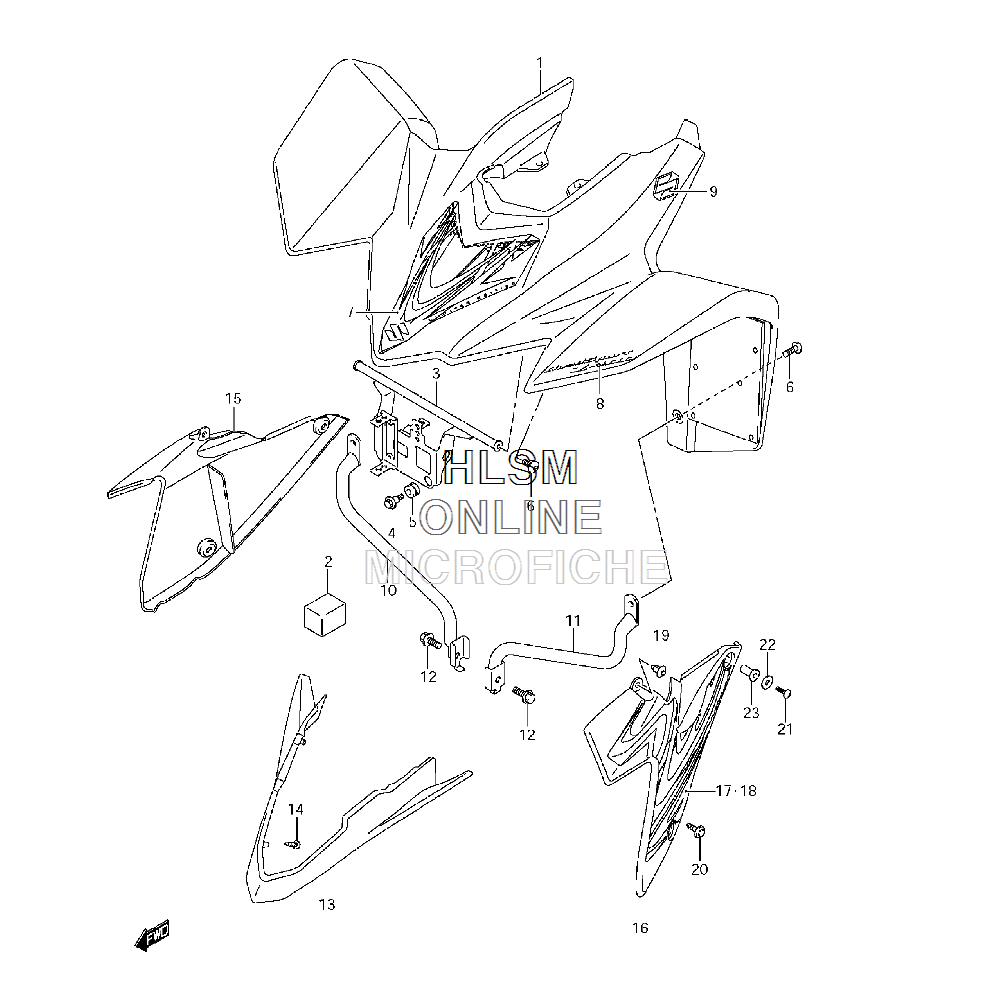

FENDER - FRONT для Suzuki LT-Z400Z QuadSport Z400 Limited - 2009 года выпуска
-
№АртикулНазвание
-
153111-33H00-YT9 FENDER, FRONT (RED)FENDER, FRONT (RED)
-
244558-33H00 CUSHION, GUARDCUSHION, GUARD
-
347410-33H00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
409111-06092 BOLTBOLT
-
509320-08068 CUSHIONCUSHION
-
609139-06158 SCREWSCREW
-
768155-33HA0-GVF TAPE, FRONTTAPE, FRONT
-
868151-33H00-CEU EMBLEM, FRONT LEFT HANDEMBLEM, FRONT LEFT HAND
-
968151-33HA0-GVK EMBLEM, REAREMBLEM, REAR
-
1053210-33H00 BRACKET, FENDER RIGHT HANDBRACKET, FENDER RIGHT HAND
-
1153220-33H00 BRACKET, FENDER LEFT HANDBRACKET, FENDER LEFT HAND
-
1209103-08431 BOLTBOLT
-
1353119-45G00-019 COVER, HEADLAMP (BLACK)COVER, HEADLAMP (BLACK)
-
1403541-0516A SCREWSCREW
-
1553112-33H00-019 COVER, SIDE RIGHT HAND (BLACK)COVER, SIDE RIGHT HAND (BLACK)
-
1653122-33H00-019 COVER, SIDE LEFT HAND (BLACK)COVER, SIDE LEFT HAND (BLACK)
-
1768155-33HB0-GVM TAPE, RIGHT HANDTAPE, RIGHT HAND
-
1868156-33HB0-GVM TAPE, LEFT HANDTAPE, LEFT HAND
-
1909409-07333 CLIP, UPPERCLIP, UPPER
-
2009409-08327 CLIP, LOWERCLIP, LOWER
-
2102142-0520B SCREWSCREW
-
2209160-05046 WASHERWASHER
-
2309159-05045 NUTNUT
