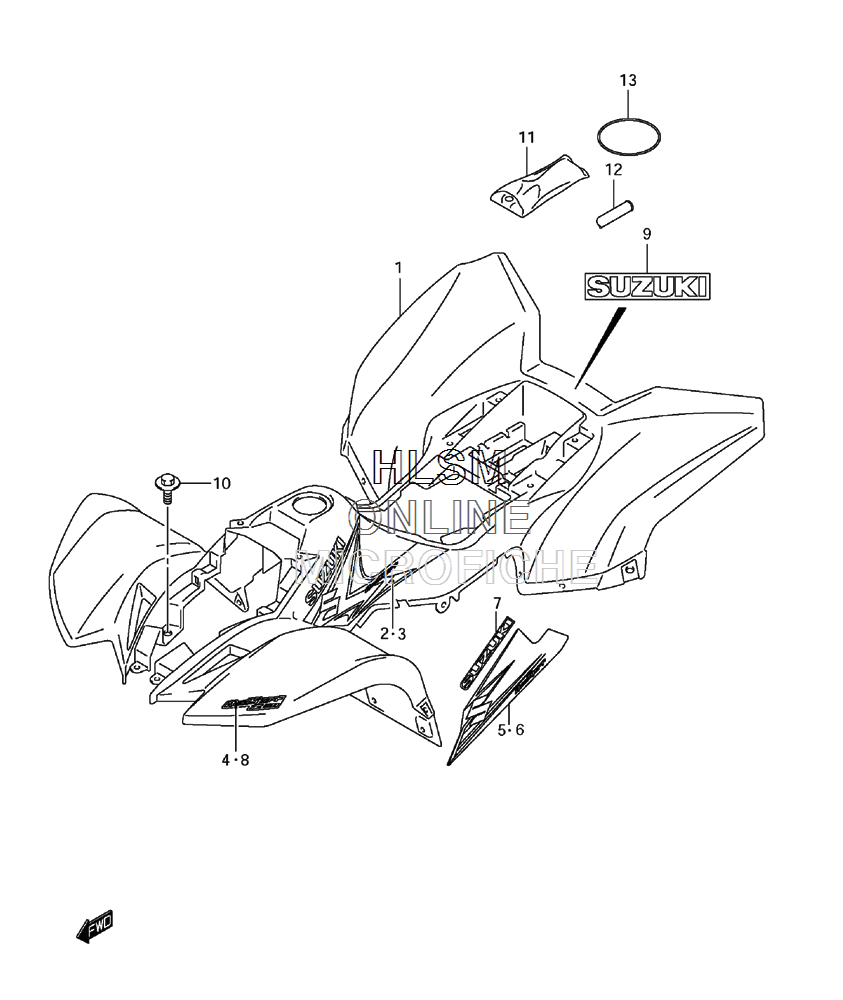

FRAME CENTER COVER для Suzuki LT-Z50 QuadSport Z50 - 2009 года выпуска
-
№АртикулНазвание
-
147311-43G00-YU1 COVER, FRAME CENTER (YELLOW)COVER, FRAME CENTER (YELLOW)
-
147311-43G00-30H COVER, FRAME CENTER (WHITE)COVER, FRAME CENTER (WHITE)
-
568135-43G50-GTE TAPE, CENTER RIGHT HAND (FOR YU1)TAPE, CENTER RIGHT HAND (FOR YU1)
-
568135-43G50-GTF TAPE, CENTER RIGHT HAND (FOR 30H)TAPE, CENTER RIGHT HAND (FOR 30H)
-
668145-43G50-GTE TAPE, CENTER LEFT HAND (FOR YU1)TAPE, CENTER LEFT HAND (FOR YU1)
-
668145-43G50-GTF TAPE, CENTER LEFT HAND (FOR 30H)TAPE, CENTER LEFT HAND (FOR 30H)
-
768131-43G10-8YM EMBLEM, SIDE (FOR YU1)EMBLEM, SIDE (FOR YU1)
-
768131-43G10-GY8 EMBLEM, SIDE (FOR 30H)EMBLEM, SIDE (FOR 30H)
-
868131-43G00-FVJ EMBLEM, FRONT LEFT HAND (FOR YU1)EMBLEM, FRONT LEFT HAND (FOR YU1)
-
868131-43G00-DCP EMBLEM, FRONT LEFT HAND (FOR 30H)EMBLEM, FRONT LEFT HAND (FOR 30H)
-
968721-09A00-GY8 EMBLEM, ''SUZUKI'' (FOR YU1)EMBLEM, ''SUZUKI'' (FOR YU1)
-
968721-09A00-8YM EMBLEM, ''SUZUKI'' (FOR 30H)EMBLEM, ''SUZUKI'' (FOR 30H)
-
1009111-06081 BOLT, CENTERBOLT, CENTER
-
1109800-21004 TOOL ASSYTOOL ASSY
-
1296200-18A02 GAUGE ASSY, AIRGAUGE ASSY, AIR
-
1309280-85003 O-RINGO-RING
