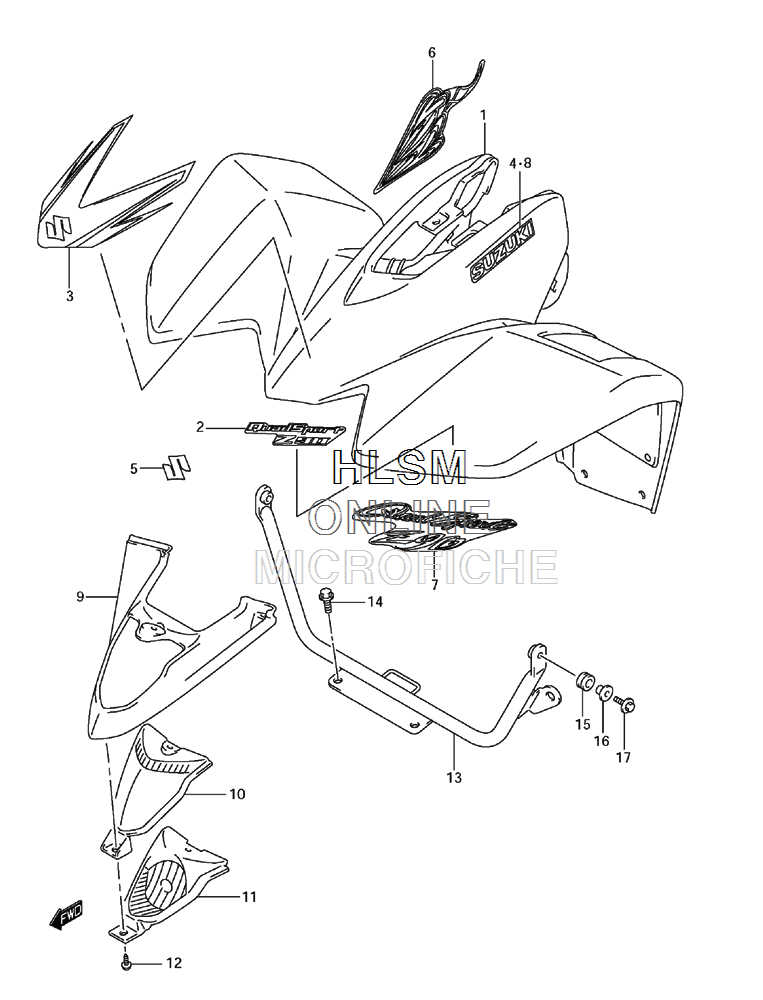

FENDER - FRONT для Suzuki LT-Z90 QuadSport Z90 Special Edition - 2009 года выпуска
-
№АртикулНазвание
-
153111-08H00-019 FENDER, FRONT (BLACK)FENDER, FRONT (BLACK)
-
568151-03B10-CT5 EMBLEM, ''S''EMBLEM, ''S''
-
668155-08HD0-GJN TAPE, FRONT RIGHT HANDTAPE, FRONT RIGHT HAND
-
768151-08HB0-GFT EMBLEM, FRONT LEFT HANDEMBLEM, FRONT LEFT HAND
-
868131-43G10-CT5 EMBLEM, ''SUZUKI''EMBLEM, ''SUZUKI''
-
953118-08H00-019 COVER, CENTER (BLACK)COVER, CENTER (BLACK)
-
1053119-08H00 COVER, LENSCOVER, LENS
-
1153117-08H00 HOLDER, LENSHOLDER, LENS
-
1203241-0516B SCREWSCREW
-
1353210-08H00 BRACE, FRONT FENDERBRACE, FRONT FENDER
-
1401550-0812B BOLTBOLT
-
1509320-09016 CUSHIONCUSHION
-
1609169-06062 WASHERWASHER
-
1701550-0620A BOLTBOLT
