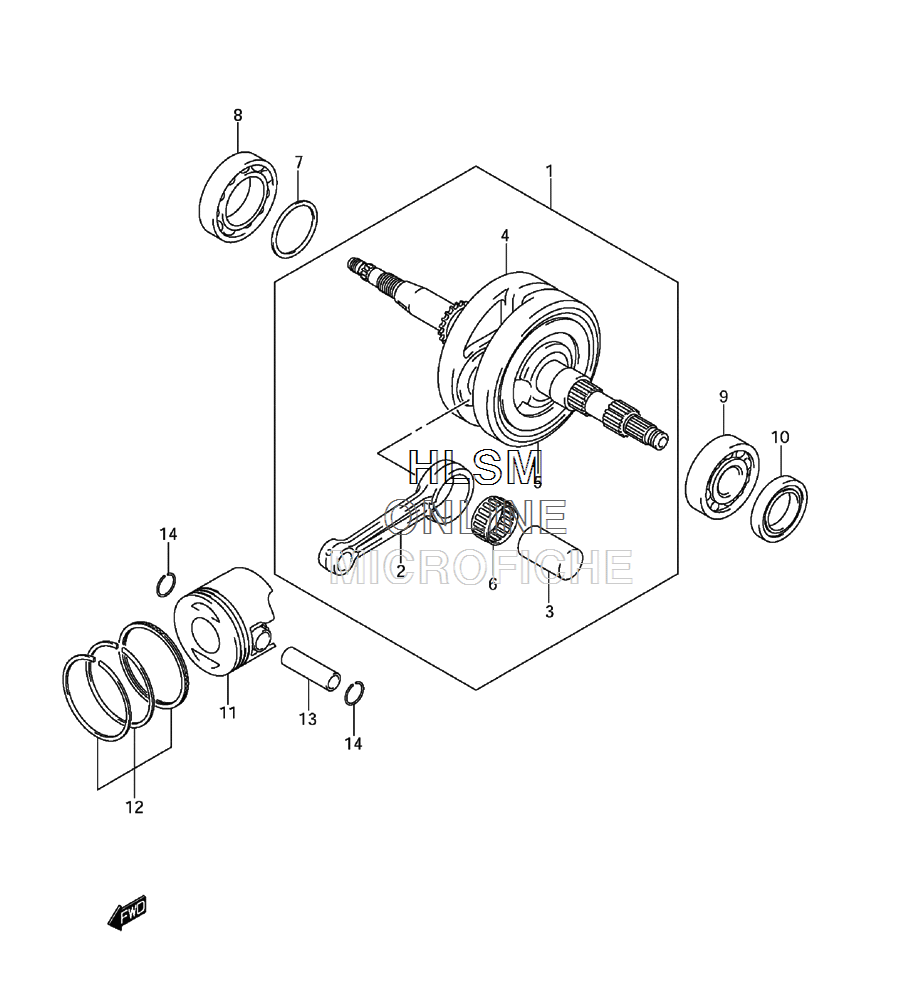

CRANKSHAFT W/ PISTON для Suzuki LT-Z90 QuadSport Z90 - 2009 года выпуска
-
№АртикулНазвание
-
112200-08H00 CRANKSHAFT ASSY (INCL. 2-6)CRANKSHAFT ASSY (INCL. 2-6)
-
212161-08H00-0C0 CONN RODCONN ROD
-
312210-33G00 PIN, CRANKPIN, CRANK
-
412221-08H00 CRANKSHAFT, RIGHT HANDCRANKSHAFT, RIGHT HAND
-
512260-33G00 CRANKSHAFT, LEFT HANDCRANKSHAFT, LEFT HAND
-
609263-28029-0B0 BEARING, (28X34X16.8)BEARING, (28X34X16.8)
-
709181-35101 SHIM (35X42X0.50)SHIM (35X42X0.50)
-
709181-35025 SHIM (35X42X0.55)SHIM (35X42X0.55)
-
709181-35103 SHIM (35X42X0.60)SHIM (35X42X0.60)
-
709181-35026 SHIM (35X42X0.65)SHIM (35X42X0.65)
-
709181-35104 SHIM (35X42X0.70)SHIM (35X42X0.70)
-
709181-35105 SHIM (35X42X0.75)SHIM (35X42X0.75)
-
709181-35106 SHIM (35X42X0.80)SHIM (35X42X0.80)
-
709181-35107 SHIM (35X42X0.85)SHIM (35X42X0.85)
-
709181-35108 SHIM (35X42X0.90)SHIM (35X42X0.90)
-
709181-35109 SHIM (35X42X0.95)SHIM (35X42X0.95)
-
709181-35110 SHIM (35X42X1.00)SHIM (35X42X1.00)
-
709181-35113 SHIM (35X42X1.05)SHIM (35X42X1.05)
-
709181-35116 SHIM (35X42X1.10)SHIM (35X42X1.10)
-
709181-35118 SHIM (35X42X1.15)SHIM (35X42X1.15)
-
709181-35120 SHIM (35X42X1.20)SHIM (35X42X1.20)
-
709181-35123 SHIM (35X42X1.25)SHIM (35X42X1.25)
-
709181-35125 SHIM (35X42X1.30)SHIM (35X42X1.30)
-
809262-35063 BEARINGBEARING
-
909262-25122 BEARINGBEARING
-
1009283-25100 OIL SEALOIL SEAL
-
1112111-08H00-0F0 PISTONPISTON
-
1212140-08H00 RING SET, PISTONRING SET, PISTON
-
1312151-08H00 PIN, PISTONPIN, PISTON
-
1409381-14001 SNAP RINGSNAP RING
