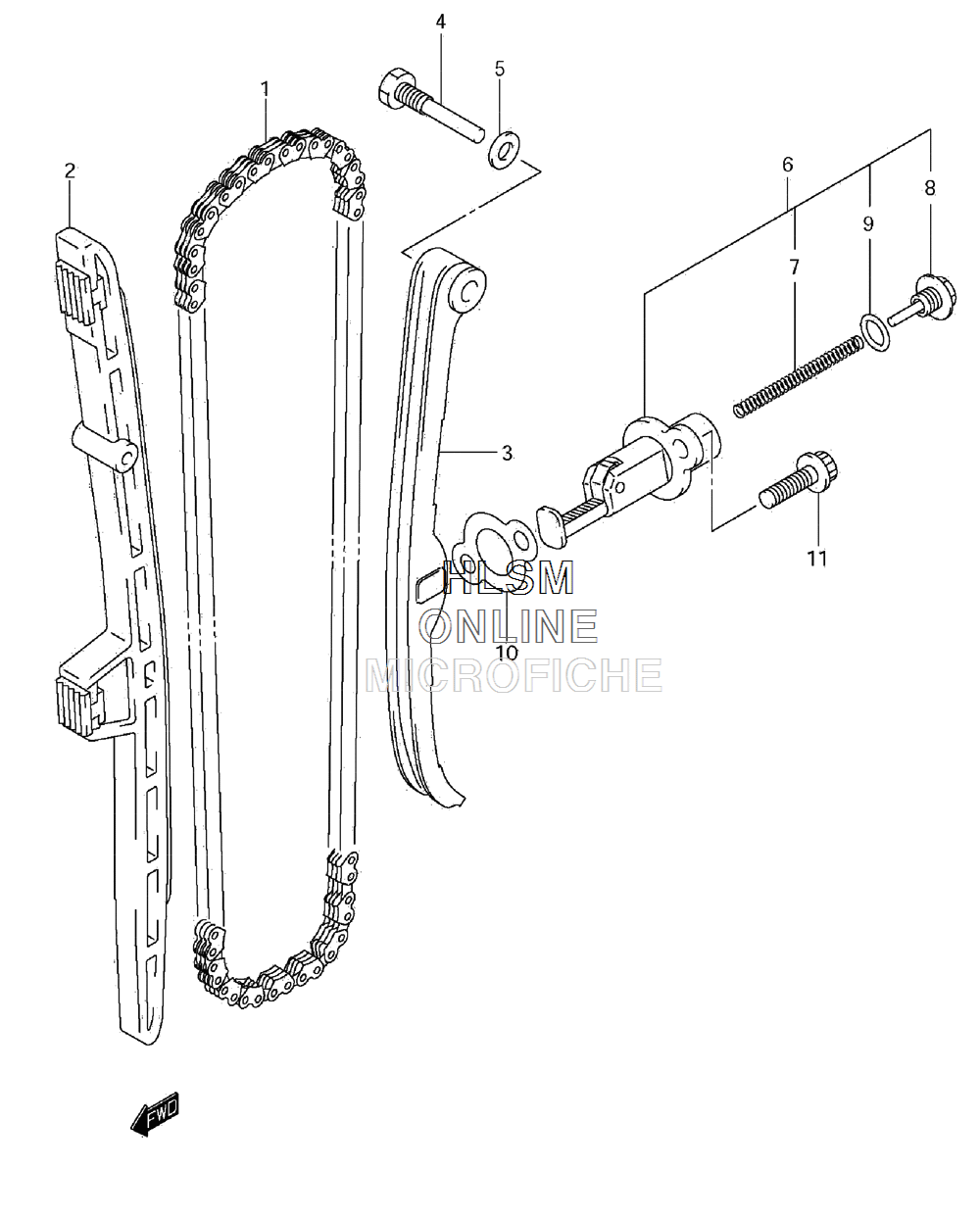

CAM CHAIN для Suzuki LT-A400FU KingQuad - 2010 года выпуска
-
№АртикулНазвание
-
112760-19B71 CHAIN, CAM (108LE)CHAIN, CAM (108LE)
-
212771-27H00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-14D10 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLTBOLT
-
509168-08016 WASHERWASHER
-
612830-29B11 ADJUSTER ASSY, TENSIONER (INC 7-9)ADJUSTER ASSY, TENSIONER (INC 7-9)
-
712833-29B00 SPRINGSPRING
-
812834-26B00 PLUGPLUG
-
912832-02A00 O RINGO RING
-
1012837-14D00 GASKET, ADJUSTERGASKET, ADJUSTER
-
1107120-0620A BOLTBOLT
