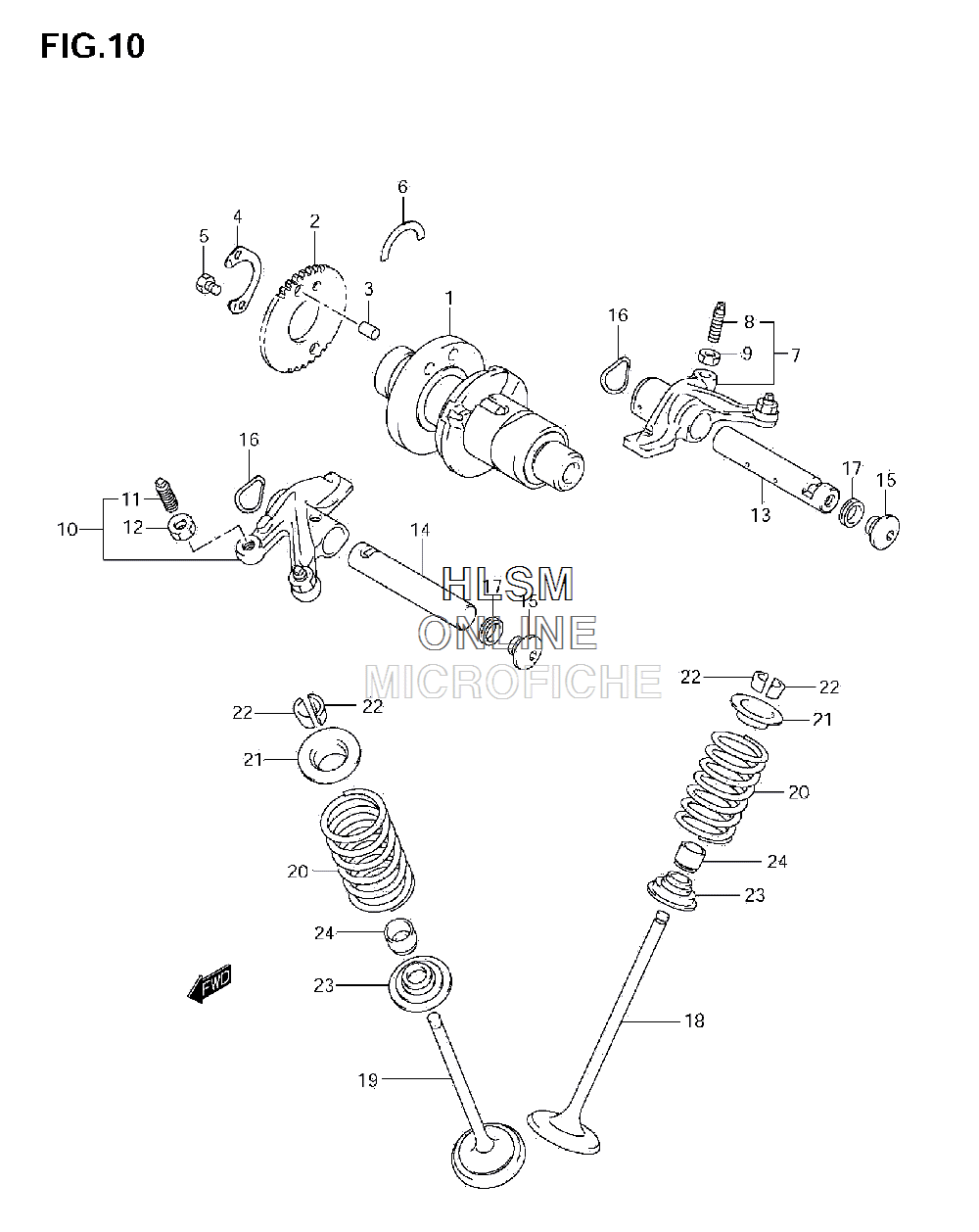

CAM SHAFT - W/ VALVES для Suzuki LT-A400F KingQuad 400FSi - 2011 года выпуска
-
№АртикулНазвание
-
112710-27H10 CAMSHAFTCAMSHAFT
-
212741-38F00 SPROCKET, CAM DRIVESPROCKET, CAM DRIVE
-
309261-05005 PINPIN
-
412747-44B00 WASHERWASHER
-
509100-06166 BOLT (6X10.5)BOLT (6X10.5)
-
609390-22002 C RINGC RING
-
712840-27H00 ARM, VALVE ROCKER INTAKE (INC 8-9)ARM, VALVE ROCKER INTAKE (INC 8-9)
-
812842-17C50 SCREWSCREW
-
912843-27A00 NUTNUT
-
1012850-27H00 ARM, VALVE ROCKER EXHAUST (INC 11-12)ARM, VALVE ROCKER EXHAUST (INC 11-12)
-
1112842-17C50 SCREWSCREW
-
1212843-27A00 NUTNUT
-
1312861-14D50 SHAFT, ROCKER ARM INTAKESHAFT, ROCKER ARM INTAKE
-
1412871-14D50 SHAFT, ROCKER ARM EXHAUSTSHAFT, ROCKER ARM EXHAUST
-
1509248-14012 PLUGPLUG
-
1609164-12018 WASHERWASHER
-
1709168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
1812911-14D10 VALVE, INTAKEVALVE, INTAKE
-
1912912-14D01 VALVE, EXHAUSTVALVE, EXHAUST
-
2012921-27H00 SPRING VALVESPRING VALVE
-
2112931-27A20 RETAINER, SPRINGRETAINER, SPRING
-
2212932-27A00 COTTER, VALVECOTTER, VALVE
-
2312933-81400 SEAT, SPRINGSEAT, SPRING
-
2409289-05011 OIL SEAL (5X10X9.7)OIL SEAL (5X10X9.7)
