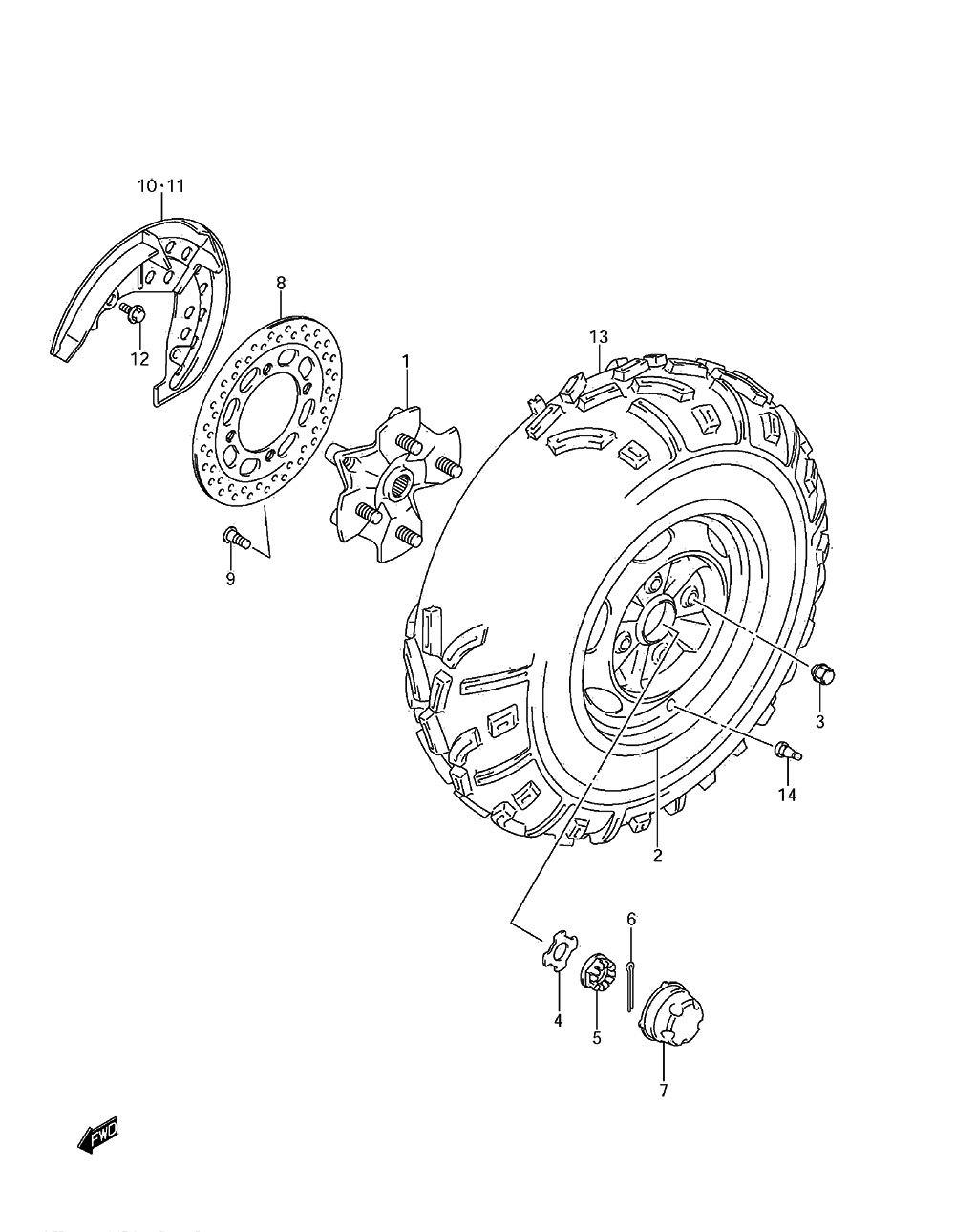

WHEEL - FRONT для Suzuki LT-A500XP KINGQUAD 500AXi POWER STEERING [L1 E28] - 2011 года выпуска

№

Артикул

Название
1

54110-31G00 HUB, FRONT WHEEL

HUB, FRONT WHEEL

16 970 ₽
2

55310-31G20-YSR RIM, FRONT WHEEL (12X6.0AT) (BLACK)

RIM, FRONT WHEEL (12X6.0AT) (BLACK)

3 880 500 ₽
2

55310-31G60-291 RIM, FRONT WHEEL (12X6.0AT) (BLACK)

RIM, FRONT WHEEL (12X6.0AT) (BLACK)

3 880 500 ₽
3

09159-10114 NUT

NUT

920 ₽
4

64723-09F00 WASHER, HUB

WASHER, HUB

1 980 ₽
5

09141-18010 NUT

NUT

1 840 ₽
6

04111-4035A COTTER PIN

COTTER PIN

240 ₽
7

54725-09F01 CAP, WHEEL CENTER

CAP, WHEEL CENTER

1 810 ₽
8

59211-31G20 DISC, FRONT BRAKE

DISC, FRONT BRAKE

6 430 ₽
9

09106-08160 BOLT (8X21)

BOLT (8X21)

650 ₽
10

59231-31G10 COVER, FRONT DISC RIGHT HAND

COVER, FRONT DISC RIGHT HAND

3 150 ₽
11

59431-31G10 COVER, FRONT DISC LEFT HAND

COVER, FRONT DISC LEFT HAND

3 150 ₽
12

09111-06085 BOLT (6X12)

BOLT (6X12)

820 ₽
13

55110-31G10 TIRE, FRONT (AT25X8-12)

TIRE, FRONT (AT25X8-12)

0 ₽
14

43130-24A00 VALVE ASSY, WHEEL RIM (TR412)

VALVE ASSY, WHEEL RIM (TR412)

1 600 ₽
