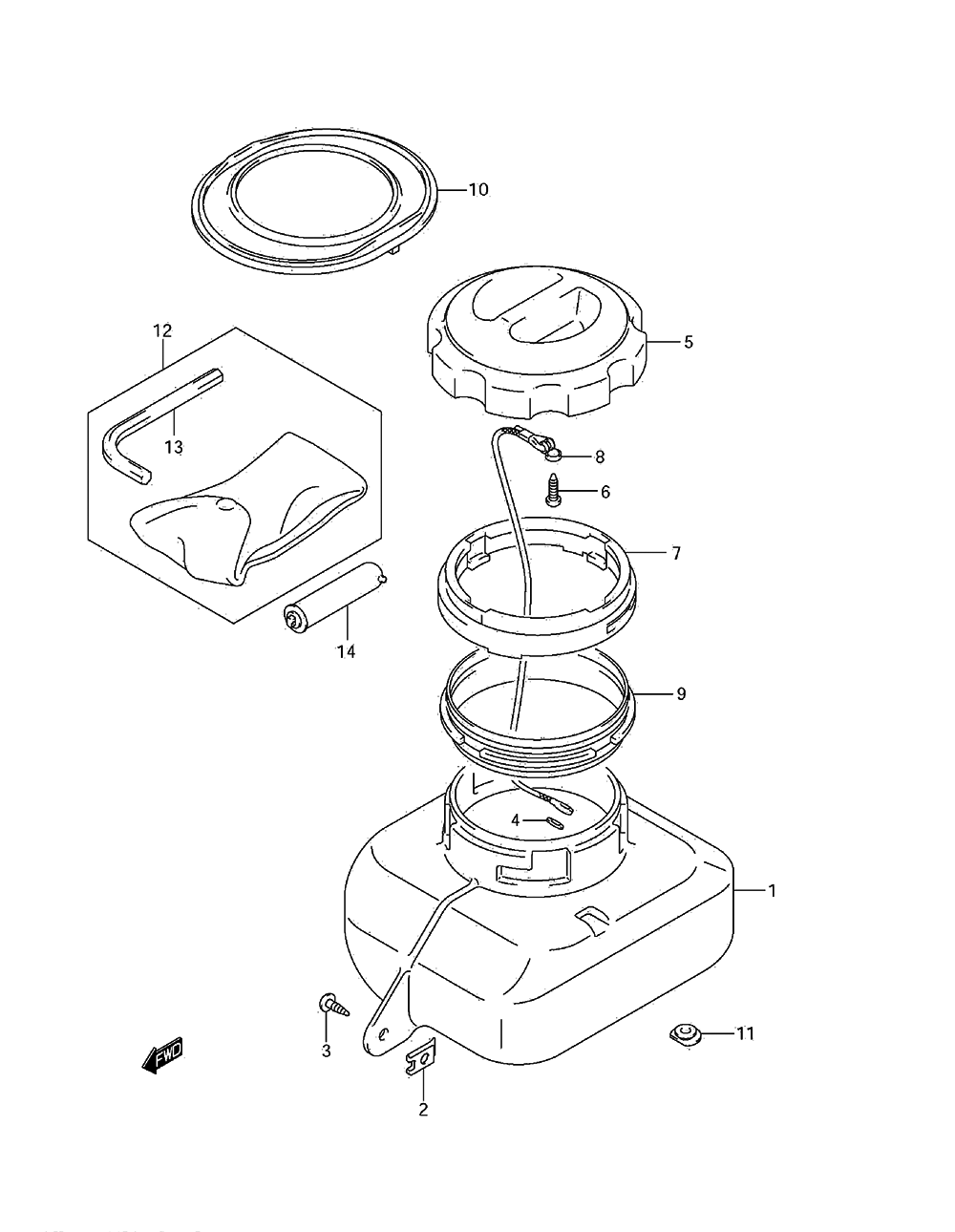

FRONT BOX для Suzuki LT-A500XP KINGQUAD 500AXi POWER STEERING [L1 E33] - 2011 года выпуска
-
№АртикулНазвание
-
192111-31G10 BODY, FRONT BOXBODY, FRONT BOX
-
209148-05038 NUTNUT
-
303541-0516A SCREWSCREW
-
409160-05013 WASHER (5.2X16X1)WASHER (5.2X16X1)
-
592112-31G00 LID, FRONT BOXLID, FRONT BOX
-
603511-0512B SCREWSCREW
-
792113-03G00 HOLDER, FRONT BOXHOLDER, FRONT BOX
-
892114-03G10 STOPPER, FRONT BOXSTOPPER, FRONT BOX
-
992141-31G00 CUSHION, FRONT BOXCUSHION, FRONT BOX
-
1092142-31G00 CUSHION, NO.1CUSHION, NO.1
-
1109250-10011 CAPCAP
-
1209800-21055 TOOL ASSYTOOL ASSY
-
1309816-00103 HEXAGON, SPANNER 4HEXAGON, SPANNER 4
-
1496200-18A02 GAUGE, AIRGAUGE, AIR
