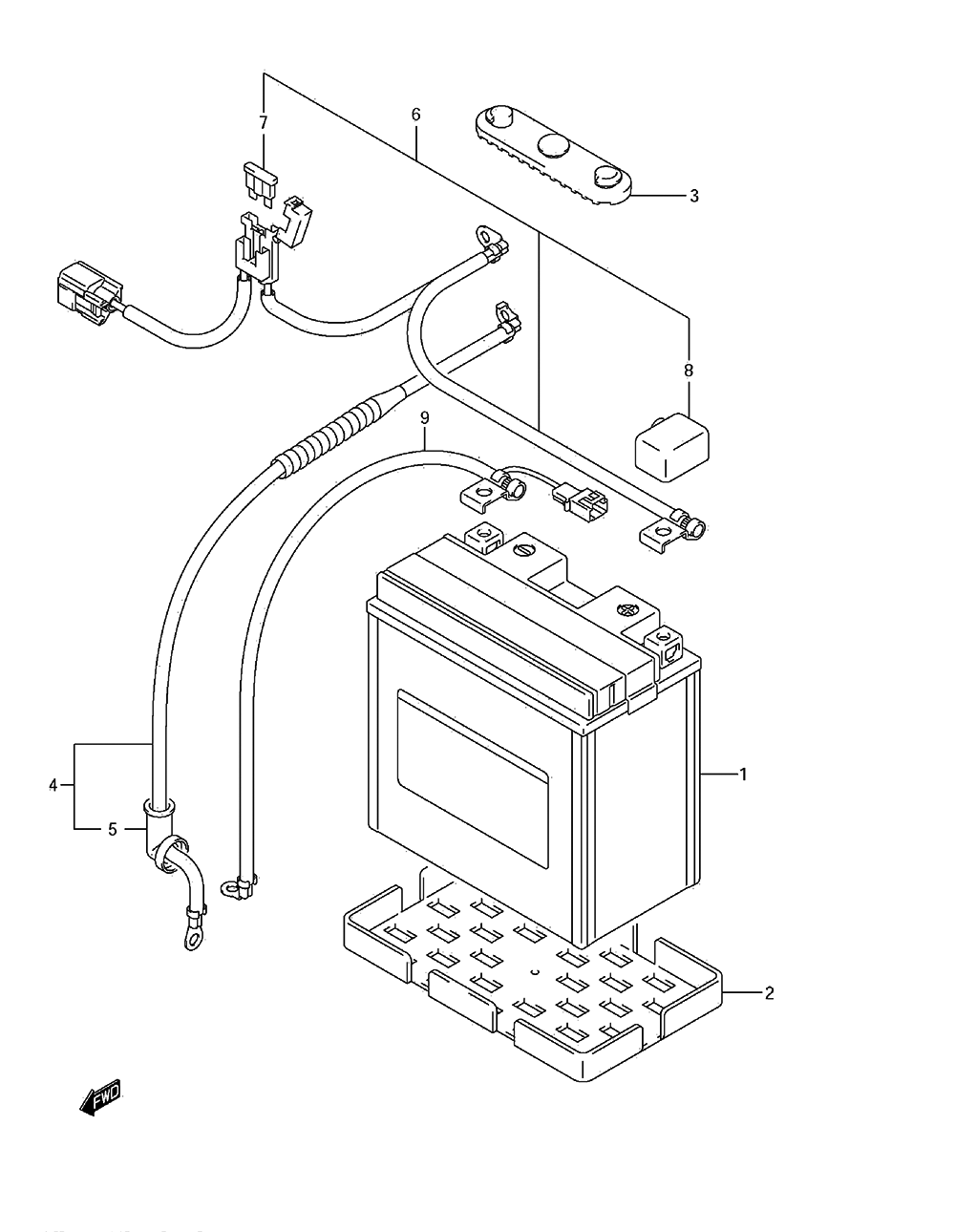

BATTERY для Suzuki LT-A500XPZ KINGQUAD 500AXi POWER STEERING (CAMO) [L1 E28] - 2011 года выпуска
-
№АртикулНазвание
-
133610-03G10 BATTERY ASSYBATTERY ASSY
-
233652-16G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
333652-07G00 PROTECTOR, BATTERYPROTECTOR, BATTERY
-
433810-11H00 WIRE, STARTER MOTORWIRE, STARTER MOTOR
-
531861-48B10 CAP, STARTER MOTOR LEADCAP, STARTER MOTOR LEAD
-
633820-31G10 WIRE, BATTERY PLUSWIRE, BATTERY PLUS
-
709481-40101 FUSE (40A)FUSE (40A)
-
833624-10D00 CAP, BATTERY PLUS TERMCAP, BATTERY PLUS TERM
-
933860-31G10 WIRE, BATTERY MINUSWIRE, BATTERY MINUS
