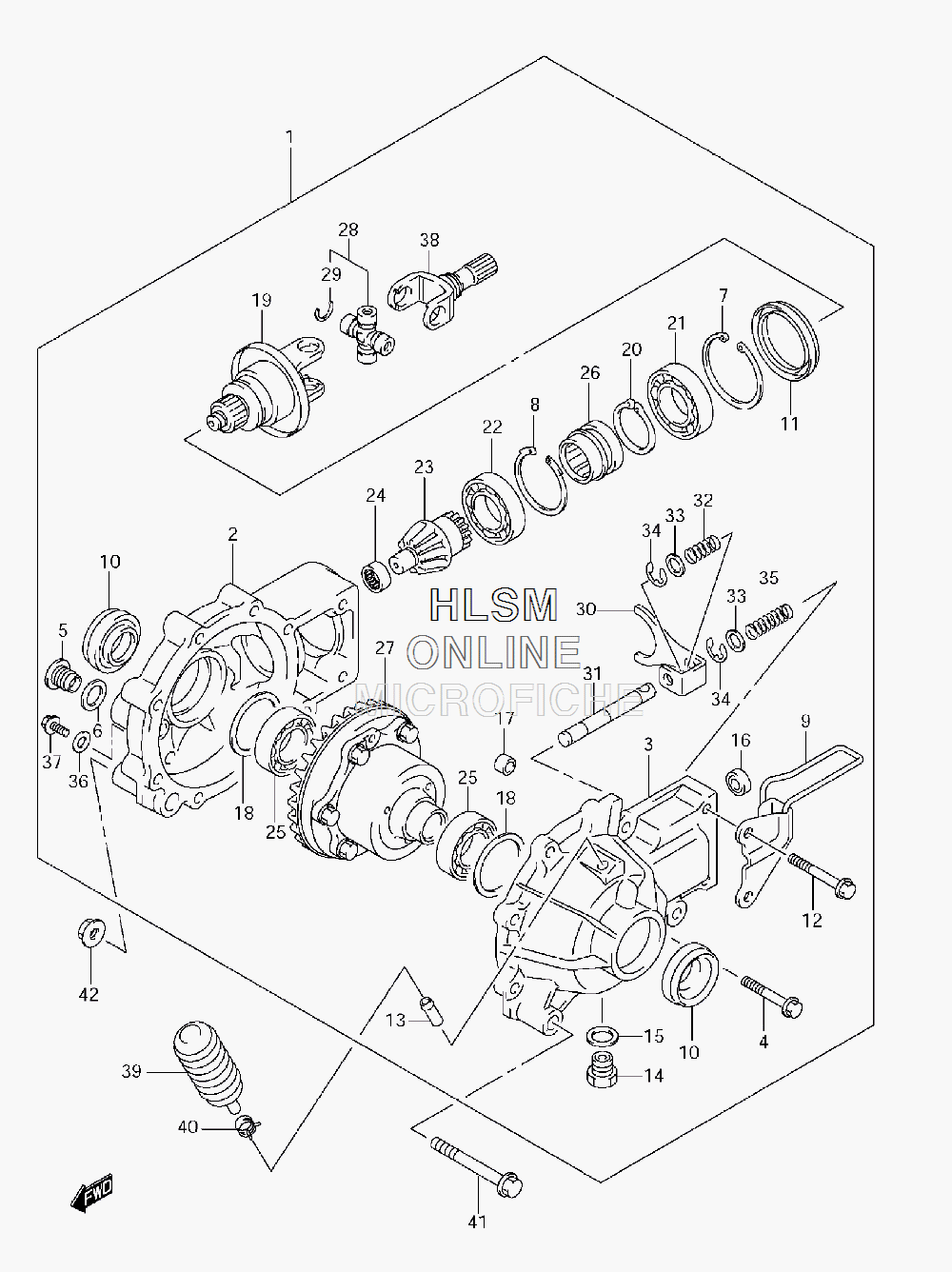

DIFFERENTIAL - FRONT для Suzuki LT-F400FZ KingQuad 400FSi (CAMO) - 2011 года выпуска
-
№АртикулНазвание
-
127400-38F50 CASE ASSY, FR DIFFERENTIAL (INC 2-38)CASE ASSY, FR DIFFERENTIAL (INC 2-38)
-
227451-38FB1 HOUSING, FINAL DRIVE FRONTHOUSING, FINAL DRIVE FRONT
-
327461-38FA1 COVER, FINAL DRIVE FRONTCOVER, FINAL DRIVE FRONT
-
427401-38FA1 BOLT (8X25)BOLT (8X25)
-
527409-38FA0 PLUGPLUG
-
627407-38FA0 WASHERWASHER
-
727403-38FA0 RING SNAPRING SNAP
-
827403-38FB0 RING SNAPRING SNAP
-
927951-38FA0 BRACKET ASSY, SHIFTBRACKET ASSY, SHIFT
-
1027406-38FD0 OIL SEALOIL SEAL
-
1127406-38FB0 OIL SEALOIL SEAL
-
1227401-38FB0 BOLT (8X50)BOLT (8X50)
-
1309364-08003 UNIONUNION
-
1427409-38FB0 PLUGPLUG
-
1527407-38FB0 WASHERWASHER
-
1627406-38FC0 OIL SEALOIL SEAL
-
1727404-31GA0 COLLARCOLLAR
-
1827445-38FA0 SHIM SETSHIM SET
-
1927130-03GA0 YOKE ASSYYOKE ASSY
-
2027403-38FC0 SNAP RINGSNAP RING
-
2127405-38FA0 BEARINGBEARING
-
2227405-38FB0 BEARINGBEARING
-
2327311-11HA0 PINION, DRIVEPINION, DRIVE
-
2427405-38FC0 BEARINGBEARING
-
2527405-38FD0 BEARINGBEARING
-
2627371-31GA0 SLEEVESLEEVE
-
2727320-27HA0 GEAR ASSYGEAR ASSY
-
2827200-19810 JOINT SETJOINT SET
-
2909380-20016 CIRCLIPCIRCLIP
-
3027941-38FA0 FORK, SHIFTFORK, SHIFT
-
3127921-38FA0 ROD, SHIFTROD, SHIFT
-
3227402-38FA0 SPRING, SHIFTSPRING, SHIFT
-
3327407-38FC0 WASHERWASHER
-
3427403-38FD0 E RINGE RING
-
3527402-38FB0 SPRING, RETURNSPRING, RETURN
-
3627407-38FD0 WASHERWASHER
-
3727409-38FC0 PLUGPLUG
-
3827151-27HA0 YOKE, SHAFT JOINTYOKE, SHAFT JOINT
-
3927491-38F00 CASE, BREATHERCASE, BREATHER
-
4009401-08411 CLIPCLIP
-
4109103-10148 BOLT (10X110)BOLT (10X110)
-
4208319-3110A NUTNUT
