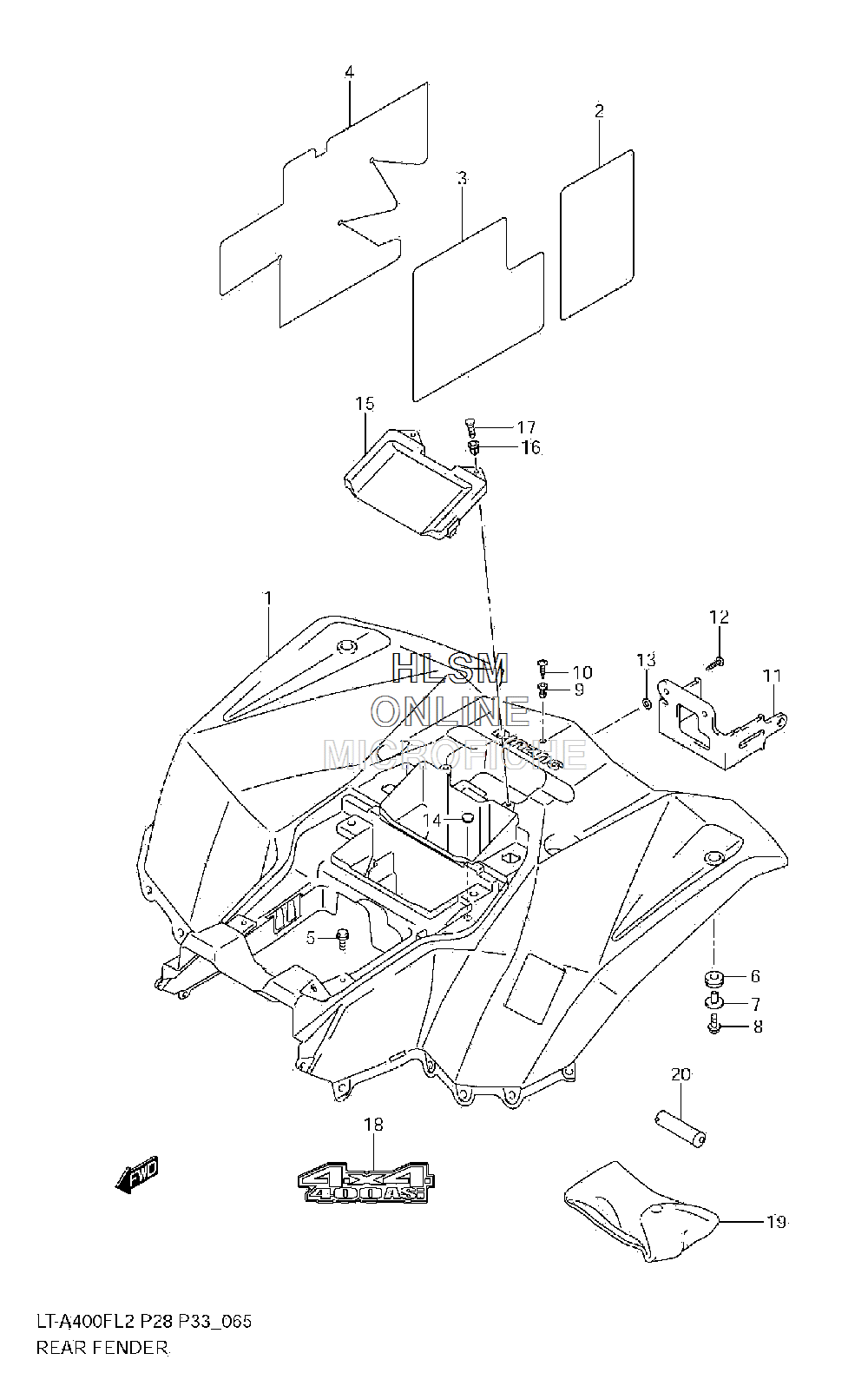

FENDER - REAR для Suzuki LT-A400FC KingQuad 400ASi 4x4 Auto (Camo) - 2012 года выпуска
-
№АртикулНазвание
-
163111-27H12-YVA FENDER, REAR (CAMOUFLAGE)FENDER, REAR (CAMOUFLAGE)
-
263122-27H10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
363123-27H10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
463124-27H10 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
509116-06006 BOLT (6X16)BOLT (6X16)
-
609320-11021 CUSHIONCUSHION
-
709169-06074 WASHERWASHER
-
801550-0625A BOLTBOLT
-
909159-05019 NUTNUT
-
1002142-0520B SCREWSCREW
-
1147413-27H00 PLATE, CDI UNITPLATE, CDI UNIT
-
1209229-04020 RIVETRIVET
-
1308322-0104A WASHERWASHER
-
1409250-08018 CAPCAP
-
1563112-27H00 COVER, REAR FENDERCOVER, REAR FENDER
-
1609409-08329 CLIPCLIP
-
1709409-08330 GROMMETGROMMET
-
1868171-27HE0-JLJ EMBLEMEMBLEM
-
1909800-21055 TOOL ASSYTOOL ASSY
-
2096200-18A02 GAUGE ASSY, AIRGAUGE ASSY, AIR
