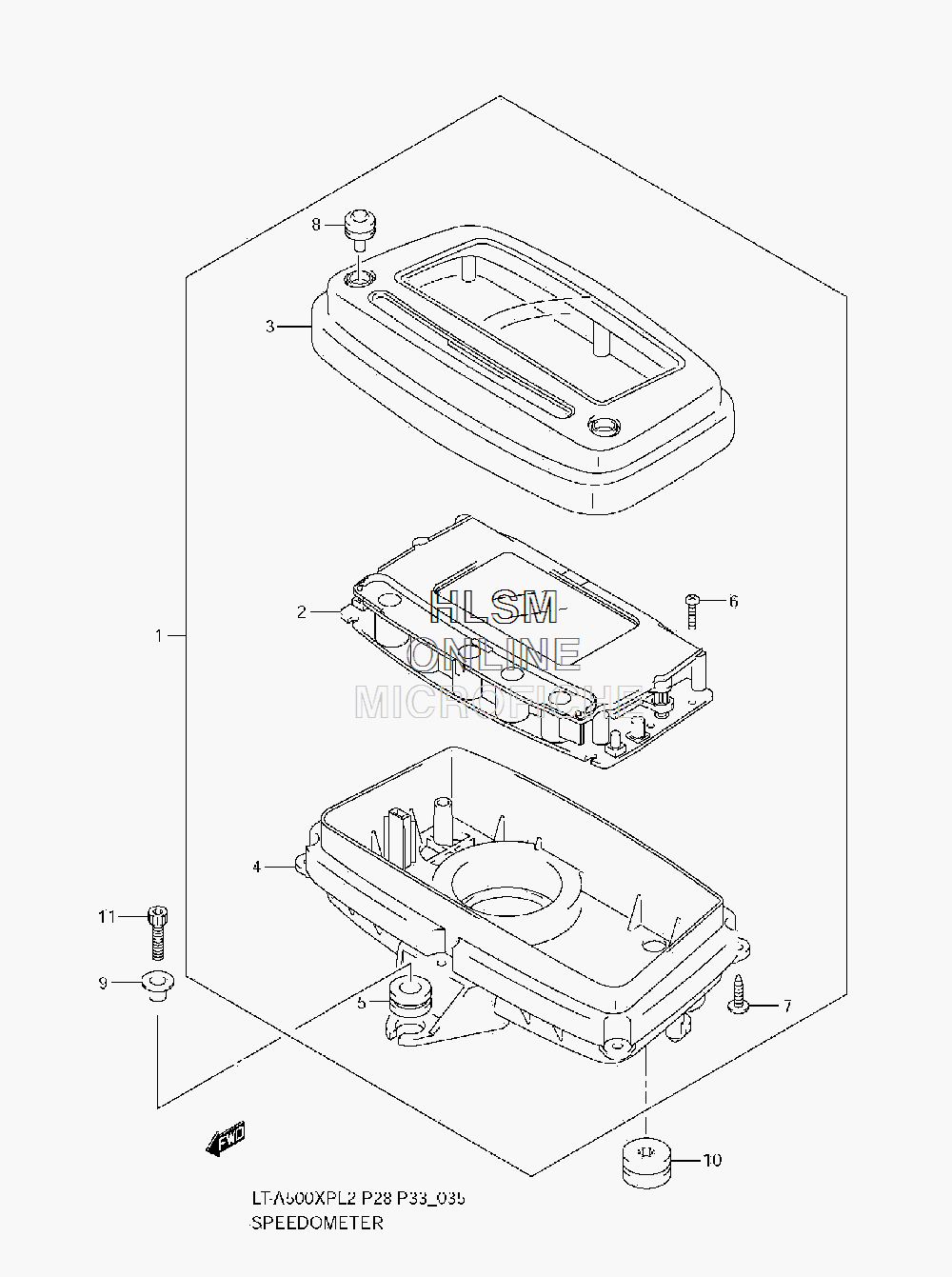

SPEEDOMETER для Suzuki LT-A500XP KingQuad 500AXi 4x4 Auto Power Steering - 2012 года выпуска
-
№АртикулНазвание
-
134100-11H60 SPEEDOMETER ASSY (INCL. 2-8)SPEEDOMETER ASSY (INCL. 2-8)
-
234120-11H50 SPEEDOMETERSPEEDOMETER
-
334150-31G30 CASE, UPPERCASE, UPPER
-
434111-31G30 CASE, LOWERCASE, LOWER
-
534995-31G30 CUSHION, METERCUSHION, METER
-
634147-31G30 SCREW (3X10)SCREW (3X10)
-
734149-31G30 SCREW (3X12)SCREW (3X12)
-
834124-31G30 SWITCH RUBBERSWITCH RUBBER
-
934187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
1034955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1107130-0520B BOLTBOLT
