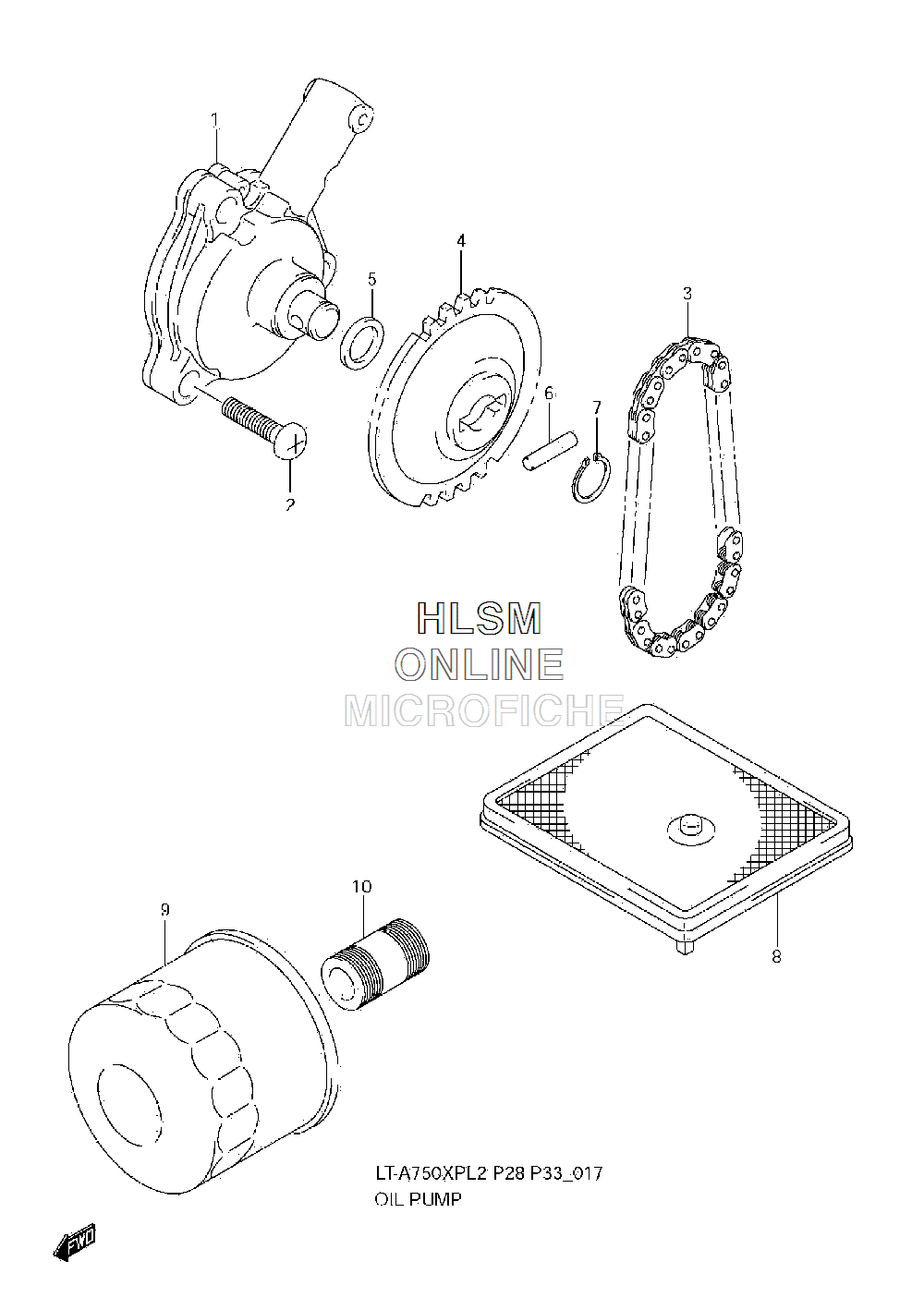

OIL PUMP для Suzuki LT-A750XPC KingQuad 750AXi 4x4 Auto Power Steering (Camo) - 2012 года выпуска
-
№АртикулНазвание
-
116400-31G00 PUMP ASSY, ENG OILPUMP ASSY, ENG OIL
-
209125-06035 SCREW (6X25)SCREW (6X25)
-
316310-31G00 CHAIN, OIL PUMP DRIVECHAIN, OIL PUMP DRIVE
-
416331-31G00 SPROCKET, OIL PUMP DRIVENSPROCKET, OIL PUMP DRIVEN
-
509181-10158 SHIM (10X18X0.5)SHIM (10X18X0.5)
-
609261-04009 PIN (4X15.8)PIN (4X15.8)
-
708331-3110A CIRCLIPCIRCLIP
-
816520-32E00 STRAINER, OILSTRAINER, OIL
-
916510-07J00 FILTER ASSY, ENGINE OILFILTER ASSY, ENGINE OIL
-
1016591-06B01 UNION, OIL FILTER STANDUNION, OIL FILTER STAND
