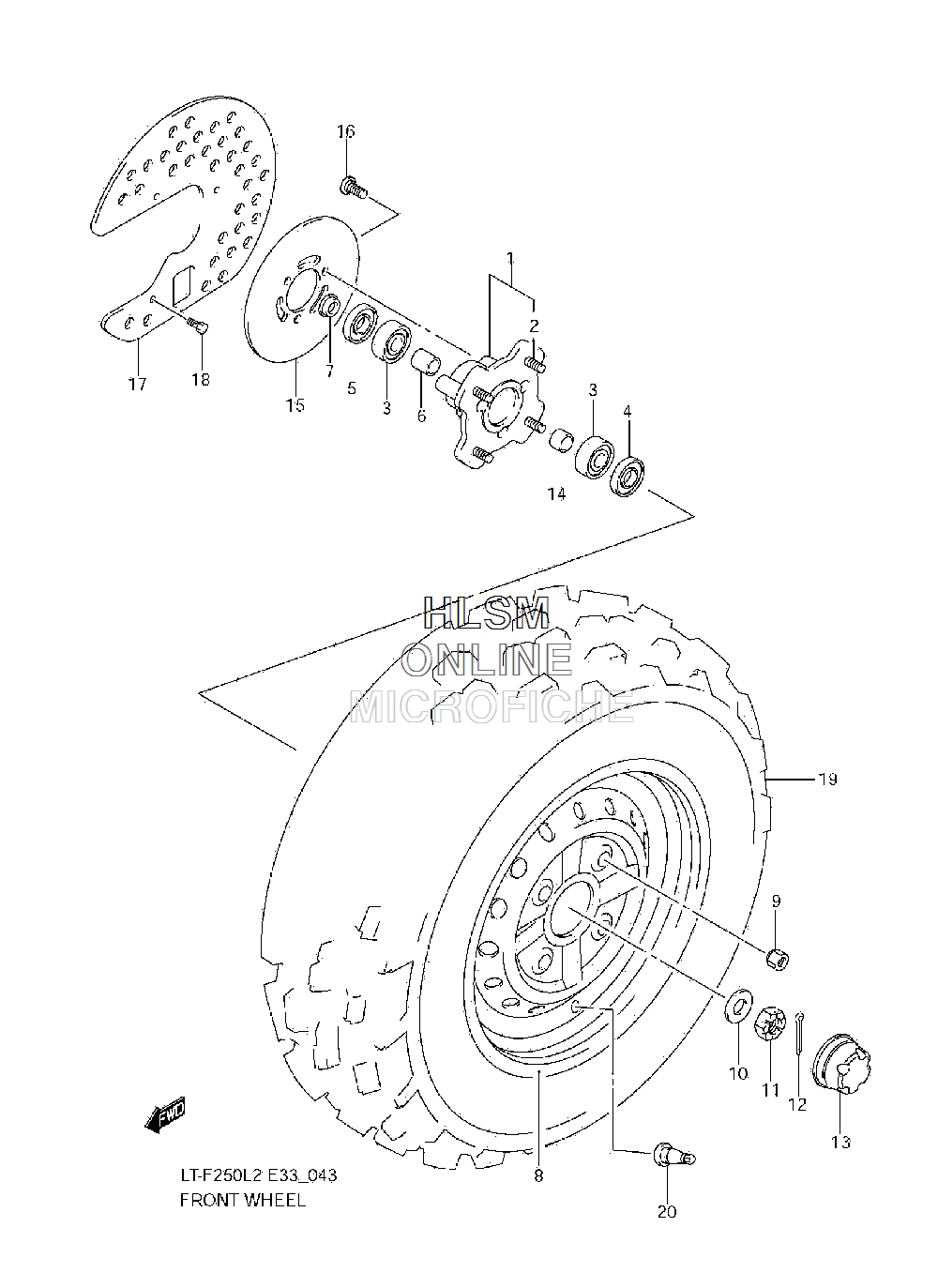

WHEEL - FRONT для Suzuki LT-F250 Ozark 250 - 2012 года выпуска
-
№АртикулНазвание
-
154110-05G10 HUB, FRONT WHEEL (INCL 2)HUB, FRONT WHEEL (INCL 2)
-
209119-10049-XC0 BOLT (10X30)BOLT (10X30)
-
308120-62037 BEARING (17X40X12)BEARING (17X40X12)
-
409284-22002 OIL SEAL (22.2X40X8)OIL SEAL (22.2X40X8)
-
509284-26002 OIL SEAL (26X42X8)OIL SEAL (26X42X8)
-
654731-05G00 SPACER, FRONT HUBSPACER, FRONT HUB
-
754741-05G00 SPACER, FRONT AXLESPACER, FRONT AXLE
-
855310-05G00-YL8 RIM, FRONT WHEEL (11X5.5AT) (SILVER)RIM, FRONT WHEEL (11X5.5AT) (SILVER)
-
909159-10114 NUT, WHEEL SETNUT, WHEEL SET
-
1008322-0116A WASHERWASHER
-
1108314-4016A NUT, HUBNUT, HUB
-
1204111-4035A PIN, COTTERPIN, COTTER
-
1354725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
1454741-189A0 SPACER, FRONT AXLESPACER, FRONT AXLE
-
1559211-05G00 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1609106-08155 BOLT (8X20)BOLT (8X20)
-
1759231-05G10 COVER, FRONT DISCCOVER, FRONT DISC
-
1809103-06285 BOLT (6X12)BOLT (6X12)
-
1955110-05G10 TIRE, FRONT (AT22X7-11)TIRE, FRONT (AT22X7-11)
-
2043130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
