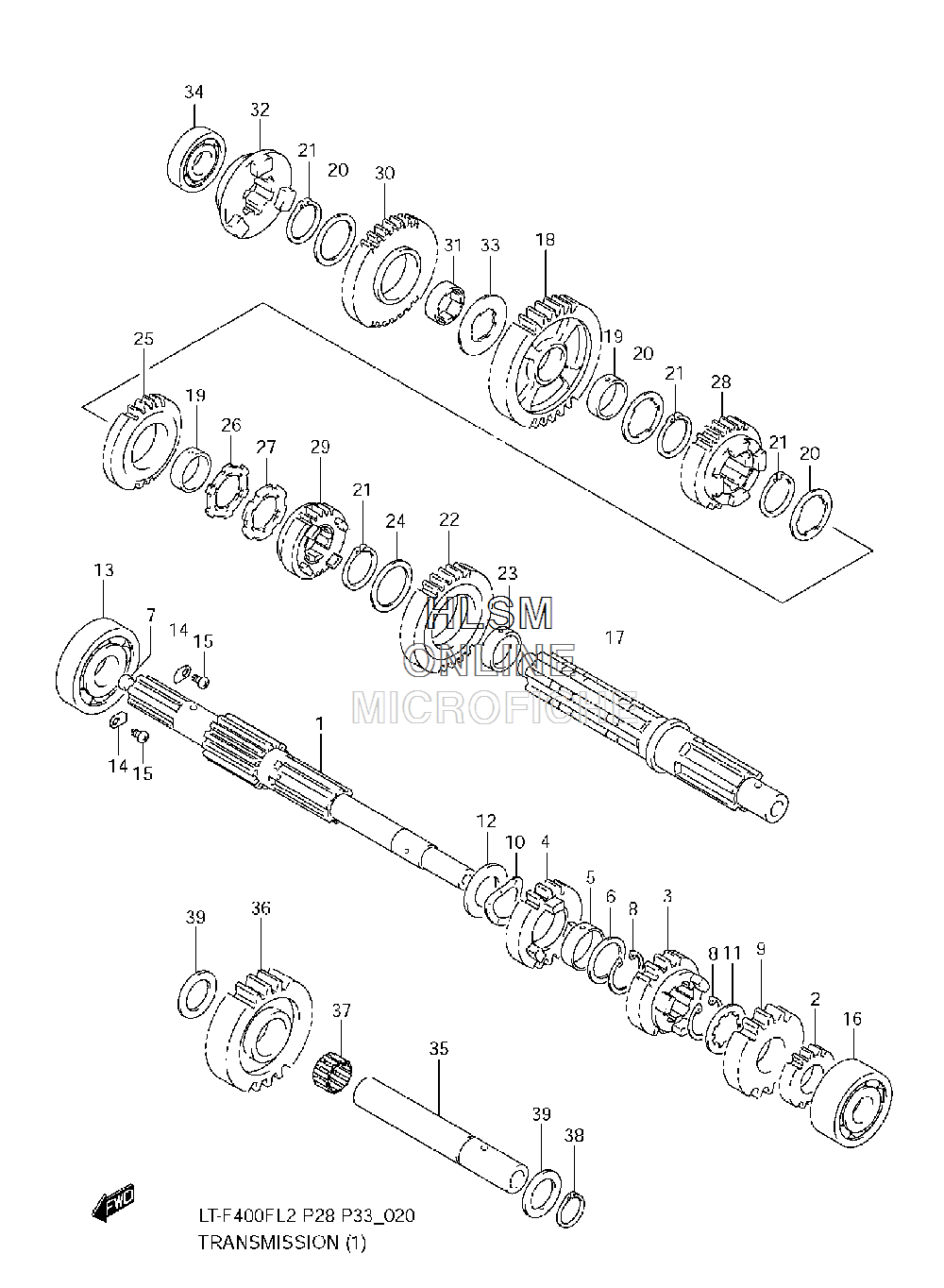

TRANSMISSION (1) для Suzuki LT-F400FC KingQuad 400FS 4x4 (Camo) - 2012 года выпуска
-
№АртикулНазвание
-
124121-38F51 COUNTERSHAFT NT:12COUNTERSHAFT NT:12
-
224221-18A00 GEAR, 2ND DRIVE NT:15GEAR, 2ND DRIVE NT:15
-
324231-18A02 GEAR, 3RD DRIVE NT:18GEAR, 3RD DRIVE NT:18
-
424241-18A10 GEAR, 4TH DRIVE NT:21GEAR, 4TH DRIVE NT:21
-
509300-22008 BUSH (22X26X9)BUSH (22X26X9)
-
609181-22167 SHIM (22X30X1)SHIM (22X30X1)
-
709241-10003 PLUG,10X4PLUG,10X4
-
809380-22006 4TH DRIVE GR CI4TH DRIVE GR CI
-
924251-18A03 GEAR, 5TH DRIVE NT:23GEAR, 5TH DRIVE NT:23
-
1009164-26002 WASHERWASHER
-
1109167-22011 DRIVEN GEAR WASHER (22.1X27X0.5)DRIVEN GEAR WASHER (22.1X27X0.5)
-
1209181-22015 WASHER (22X38X1)WASHER (22X38X1)
-
1309262-22018 BEARING (22X50X14)BEARING (22X50X14)
-
1424741-21A00 RETAINER, CENTER SHAFT BEARINGRETAINER, CENTER SHAFT BEARING
-
1509125-06122 SCREW (6X12)SCREW (6X12)
-
1609267-17002 BEARING (17X40X17.5)BEARING (17X40X17.5)
-
1724131-38F50 DRIVE SHAFTDRIVE SHAFT
-
1824311-18A02 GEAR, 1ST DRIVEN NT:37GEAR, 1ST DRIVEN NT:37
-
1924332-24510 BUSH, 3RD/4TH DRBUSH, 3RD/4TH DR
-
2009167-25016 LOCK WASHERLOCK WASHER
-
2109380-25003 CIRCLIPCIRCLIP
-
2224321-18A01 GEAR, 2ND DRIVEN NT:29GEAR, 2ND DRIVEN NT:29
-
2309300-25020 BUSH (25X29X8)BUSH (25X29X8)
-
2408211-25351 WASHER THRUSTWASHER THRUST
-
2524331-19B01 GEAR, 3RD DRIVEN NT:25GEAR, 3RD DRIVEN NT:25
-
2609169-25001 WASHERWASHER
-
2709167-25013 LOCK WASHERLOCK WASHER
-
2824341-18A02 GEAR, 4TH DRIVEN NT:23GEAR, 4TH DRIVEN NT:23
-
2924351-18A02 GEAR, 5TH DRIVEN NT:21GEAR, 5TH DRIVEN NT:21
-
3024571-38F60 GEAR, REVERSE DRIVEN NT:34GEAR, REVERSE DRIVEN NT:34
-
3124333-18A00 BUSH, REVERSE DRIVENBUSH, REVERSE DRIVEN
-
3224581-38F60 DOG, REVERSEDOG, REVERSE
-
3309167-25017 WASHERWASHER
-
3409262-17026 BEARING (17X35X10)BEARING (17X35X10)
-
3524551-38F70 SHAFT, REVERSE IDLESHAFT, REVERSE IDLE
-
3624561-05G02 GEAR, REVERSE IDLE NT:29GEAR, REVERSE IDLE NT:29
-
3709263-17001 BEARING (17X21X12.8)BEARING (17X21X12.8)
-
3808331-3117A CIRCLIPCIRCLIP
-
3909181-17195 SHIM (17X28X1)SHIM (17X28X1)
