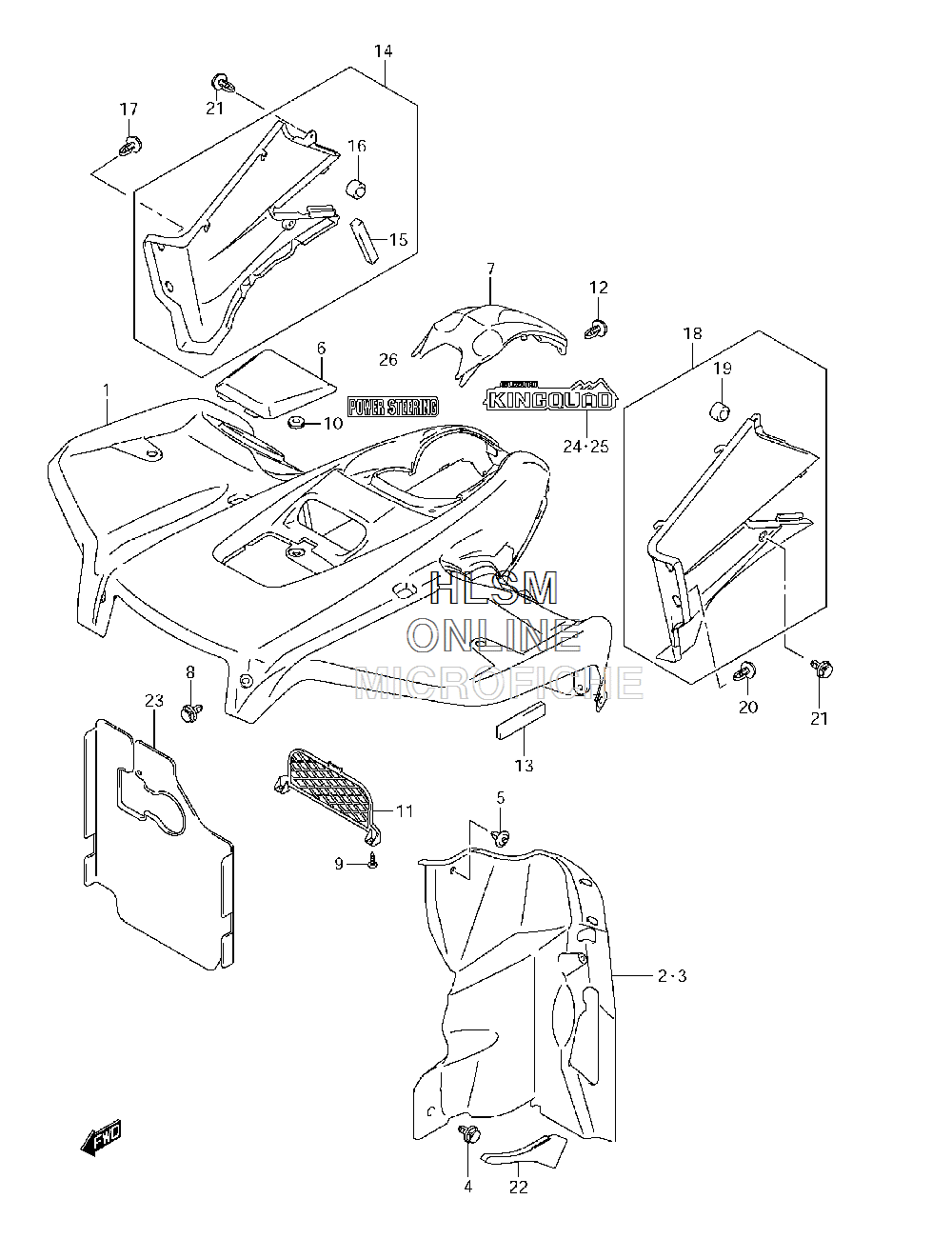

FENDER - FRONT (CANADA) для Suzuki LT-A750XPZ KingQuad 750AXi w/ Power Steering (CAMO/LTD METALLIC RED) - 2013 года выпуска
-
№АртикулНазвание
-
1-153111-31GC3-PHW FENDER, FRONT (TRUE TIMBER XD3)FENDER, FRONT (TRUE TIMBER XD3)
-
1-253111-31G50-PGR FENDER, FRONT (METALIC MAT ROYAL RED)FENDER, FRONT (METALIC MAT ROYAL RED)
-
253411-31G02 MUDFLAP, FENDER INNER RIGHTMUDFLAP, FENDER INNER RIGHT
-
353421-31G01 MUDFLAP, FENDER INNER LEFTMUDFLAP, FENDER INNER LEFT
-
409409-08335 CLIPCLIP
-
509409-07333 CLIPCLIP
-
6-153341-31GC1-PHW LID (TRUE TIMBER XD3)LID (TRUE TIMBER XD3)
-
6-253341-31G50-PGR LID (METALIC MAT ROYAL RED)LID (METALIC MAT ROYAL RED)
-
7-153119-31GC2-PHW FENDER, CENTER (TRUE TIMBER XD3)FENDER, CENTER (TRUE TIMBER XD3)
-
7-253119-31G50-PGR FENDER, CENTER (METALIC MAT ROYAL RED)FENDER, CENTER (METALIC MAT ROYAL RED)
-
809409-08335 CLIPCLIP
-
903241-0516A SCREWSCREW
-
1009320-08018 CUSHIONCUSHION
-
1153212-31G01 COVER, INNERCOVER, INNER
-
1209409-08335 CLIPCLIP
-
1353145-07G01 CUSHION, FENDER SIDECUSHION, FENDER SIDE
-
1453110-31G10-291 COVER, SIDE RH (BLACK)COVER, SIDE RH (BLACK)
-
1553146-05G00 ...CUSHION, COVER SIDE...CUSHION, COVER SIDE
-
1609321-10019 ...CUSHION...CUSHION
-
1709409-08335 CLIPCLIP
-
1853110-31G20-291 COVER, SIDE LH (BLACK)COVER, SIDE LH (BLACK)
-
1953146-05G00 .CUSHION, COVER SIDE.CUSHION, COVER SIDE
-
2009409-08335 CLIPCLIP
-
2109409-08335 CLIPCLIP
-
2253116-31G00 MUDGUARD, SIDE RHMUDGUARD, SIDE RH
-
2353117-31G00 COVER, CENTERCOVER, CENTER
-
2468151-31GC0-EFG EMBLEM, FRONT FENDER RIGHTEMBLEM, FRONT FENDER RIGHT
-
2568152-31GC0-EFG EMBLEM, FRONT FENDER LEFTEMBLEM, FRONT FENDER LEFT
-
2668151-31GD0-CT5 EMBLEM, POWER-STEERING (SILVER/BLACK)EMBLEM, POWER-STEERING (SILVER/BLACK)
