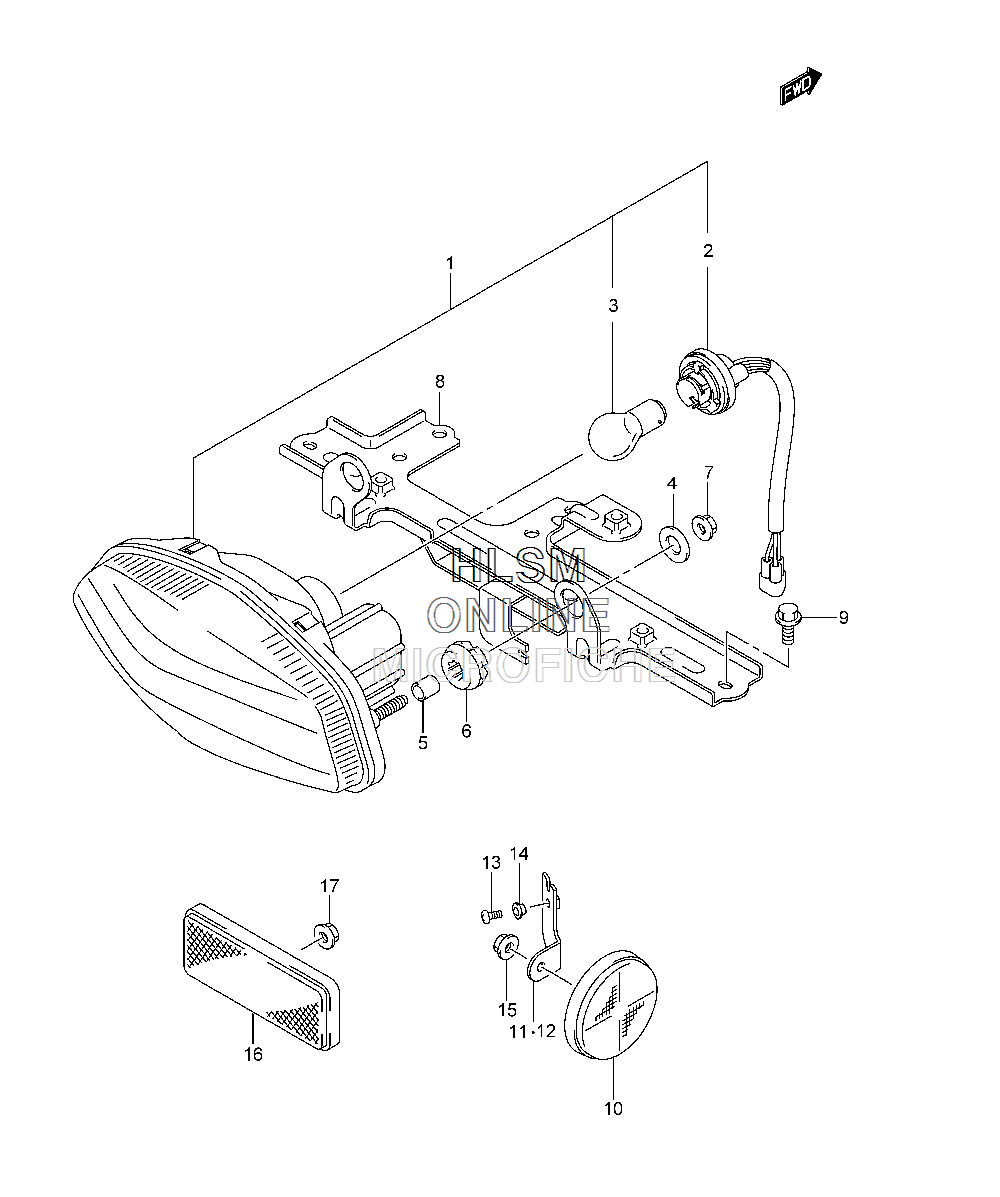

TAILLIGHT ASSY. (CANADA) для Suzuki LT-F400F KingQuad 400FSi (STANDARD COLORS) - 2013 года выпуска
-
№АртикулНазвание
-
135710-31G00 LAMP ASSY, REAR COMBINATIONLAMP ASSY, REAR COMBINATION
-
235718-03G30 ...SOCKET & BULB...SOCKET & BULB
-
309471-12128 ...BULB (12V,21/5W)...BULB (12V,21/5W)
-
409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
509180-06264 SPACER (6.5X9X10.5)SPACER (6.5X9X10.5)
-
609320-09018 CUSHIONCUSHION
-
708316-1006A NUTNUT
-
835720-27H30 BRACKET, REAR COMBINATION LAMBRACKET, REAR COMBINATION LAM
-
901550-0612A BOLTBOLT
-
1035970-14A20 REFLECTOR ASSY, REAR SIDEREFLECTOR ASSY, REAR SIDE
-
1135975-27H00 BRACKET, REAR SIDE REAR RIGHTBRACKET, REAR SIDE REAR RIGHT
-
1235976-27H00 BRACKET, REAR SIDE REAR LEFTBRACKET, REAR SIDE REAR LEFT
-
1309125-05073 SCREW (5X8)SCREW (5X8)
-
1409169-06071 WASHERWASHER
-
1508316-1005B NUTNUT
-
1635970-07F01 REFLECTOR ASSY, REARREFLECTOR ASSY, REAR
-
1708316-1005B NUTNUT
