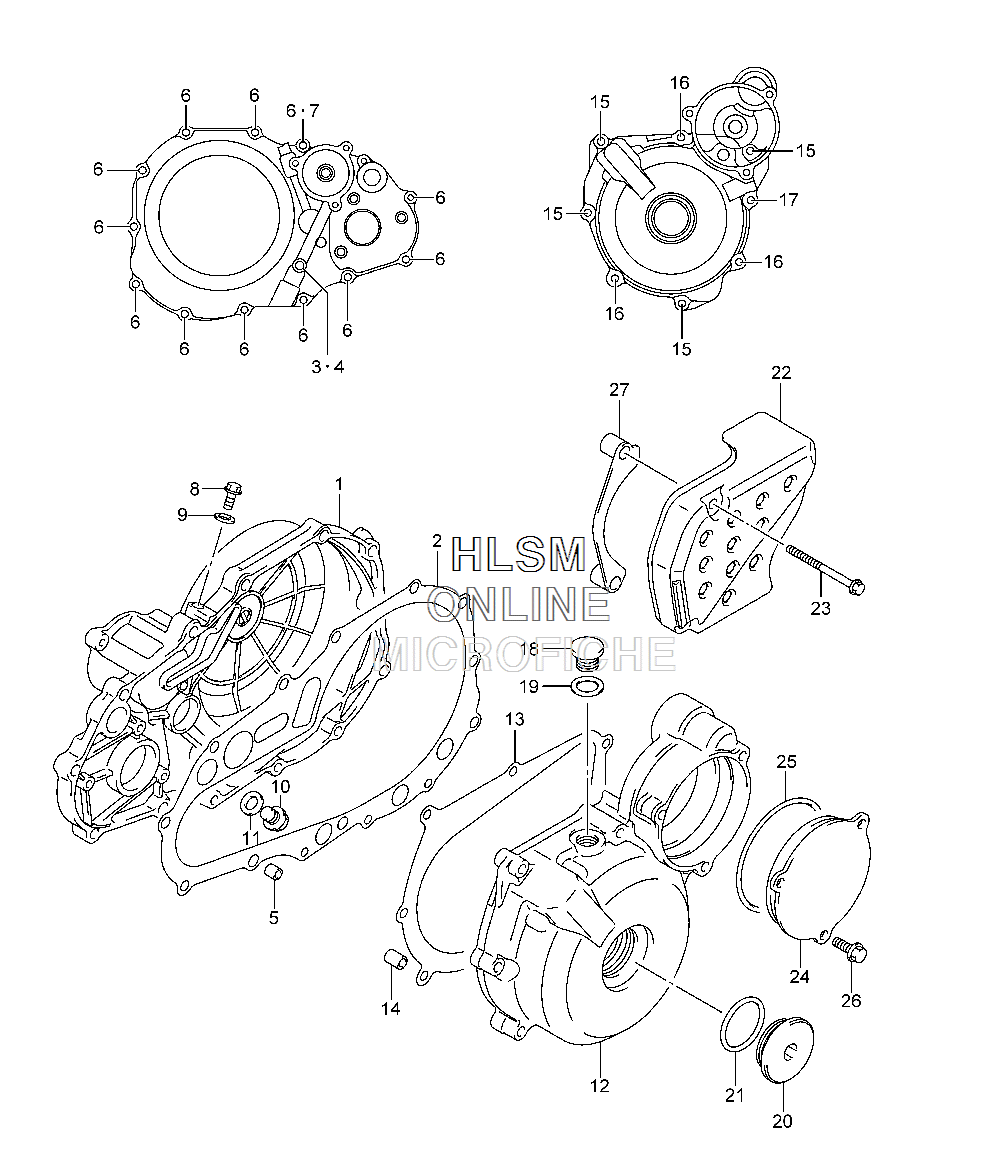

CRANKCASE COVER для Suzuki LT-Z400 QuadSport Z400 - 2013 года выпуска
-
№АртикулНазвание
-
111341-07G30 COVER, CLUTCHCOVER, CLUTCH
-
211482-07G10 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
309106-08140 BOLT (8X16)BOLT (8X16)
-
409168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
504211-09149 PINPIN
-
601547-0630A BOLTBOLT
-
709168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
801547-0612A BOLTBOLT
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1009247-12006 PLUG (12X10)PLUG (12X10)
-
1109168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1211351-07G20 COVER, MAGNETOCOVER, MAGNETO
-
1311483-07G10 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1404211-09149 PINPIN
-
1501547-0630A BOLTBOLT
-
1601547-0640A BOLTBOLT
-
1701547-0650A BOLTBOLT
-
1809247-14026 PLUG (14X12)PLUG (14X12)
-
1909168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
2009259-36016-20H PLUG (SILVER)PLUG (SILVER)
-
2109280-33004 O RING (D:3.1,ID:32.7)O RING (D:3.1,ID:32.7)
-
2211360-07G10 COVER, ENGINE SPROCKETCOVER, ENGINE SPROCKET
-
2301547-0660A BOLTBOLT
-
2411352-29F50 COVER, STARTER IDLE GEARCOVER, STARTER IDLE GEAR
-
2509280-71008 O RING (D:2.6,ID:67.1)O RING (D:2.6,ID:67.1)
-
2601547-0616A BOLTBOLT
-
2727640-07G00 PLATE, CHAIN GUIDEPLATE, CHAIN GUIDE
