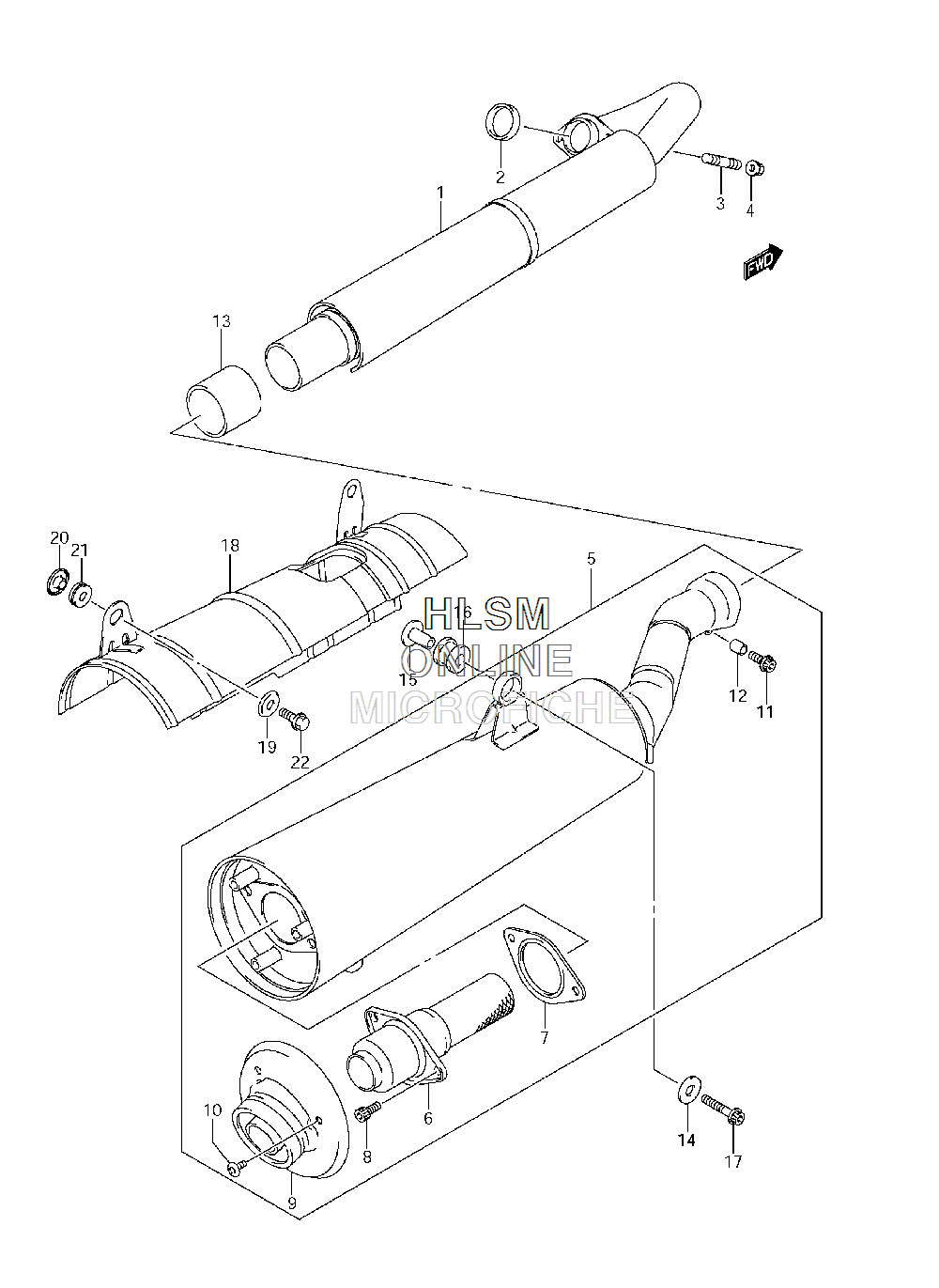

MUFFLER для Suzuki LTA-A750Z KingQuad 750AXi (STANDARD COLORS) - 2013 года выпуска
-
№АртикулНазвание
-
114100-31G60 PIPE ASSY, EXHPIPE ASSY, EXH
-
214181-29E02 GASKET, EXH PIPEGASKET, EXH PIPE
-
301421-0820A STUD BOLTSTUD BOLT
-
408319-3108A NUTNUT
-
514310-31G60 BODY, MUFFLERBODY, MUFFLER
-
614850-31G00 ...ARRESTER...ARRESTER
-
714773-31G02 ...GASKET...GASKET
-
807130-0612B ...BOLT...BOLT
-
914790-31G60 ...COVER, MUF TAIL...COVER, MUF TAIL
-
1009139-06027 ...SCREW (6X12)...SCREW (6X12)
-
1107120-0835B ...BOLT...BOLT
-
1214458-45G01 ...SPACER, CLAMP...SPACER, CLAMP
-
1314771-45G00 CONNECTOR, MUFFLER JTCONNECTOR, MUFFLER JT
-
1409160-08503 WASHER (8.5X30X2.3)WASHER (8.5X30X2.3)
-
1509180-08152 SPACER (8.6X12X24.2)SPACER (8.6X12X24.2)
-
1609320-12071 CUSHIONCUSHION
-
1707120-0840A BOLTBOLT
-
1814880-31G60 COVER, MUFFLERCOVER, MUFFLER
-
1914184-07G00 WASHER, MUF COVERWASHER, MUF COVER
-
2014185-07G00 SPACER, MUF COVERSPACER, MUF COVER
-
2109320-08069 CUSHIONCUSHION
-
2201550-0616A BOLTBOLT
