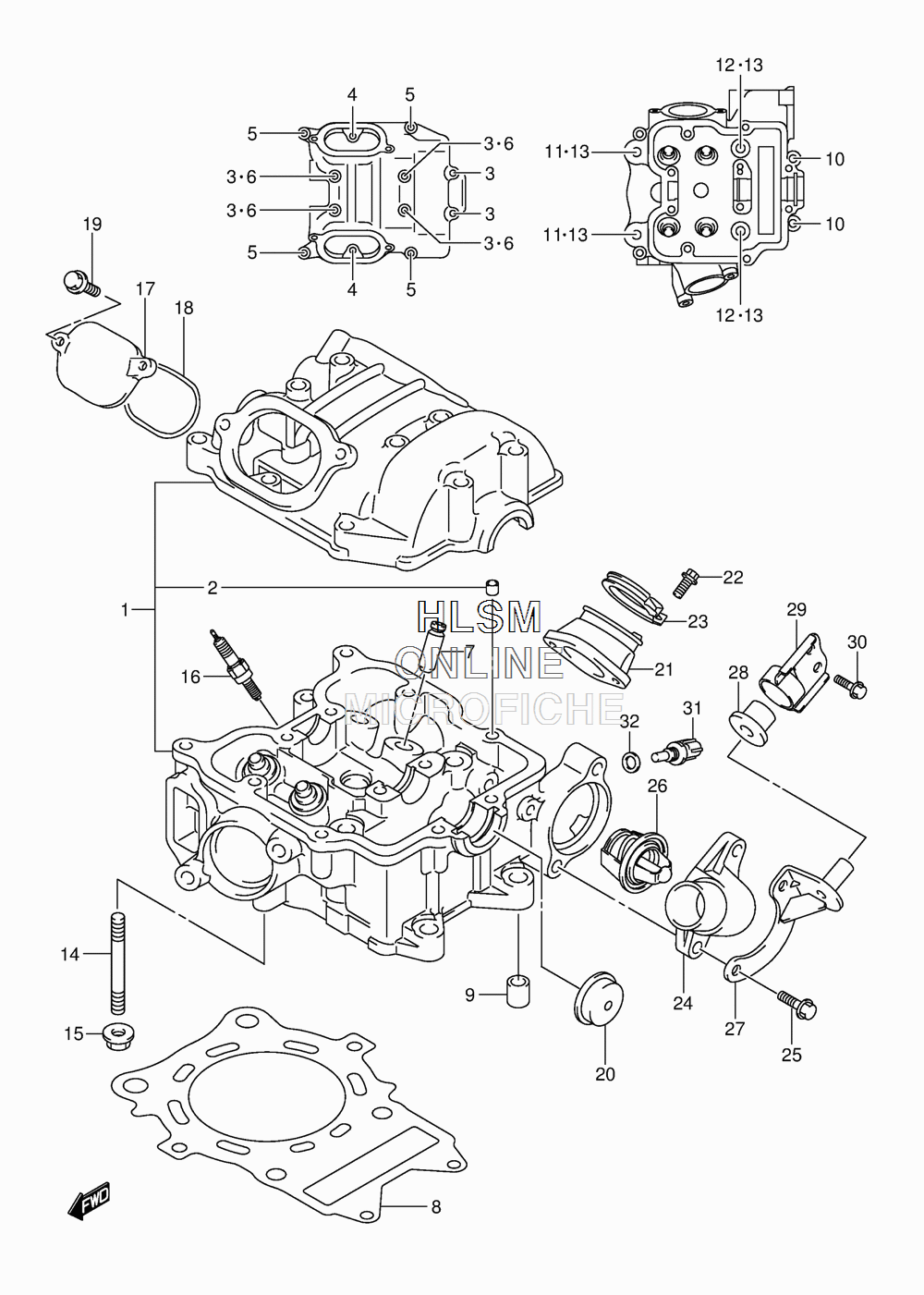

CYLINDER HEAD для Suzuki LT-A500XZ KingQuad 500X (CAMO/LTD METALLIC RED) - 2014 года выпуска
-
№АртикулНазвание
-
111100-11H10 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209206-08001 PIN (8X11)PIN (8X11)
-
309103-06064 BOLT (6X60)BOLT (6X60)
-
401550-0625A BOLTBOLT
-
501550-0635A BOLTBOLT
-
609168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
711115-14D71 GUIDE, VALVE (OS 0.3)GUIDE, VALVE (OS 0.3)
-
811141-31H00 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
904211-13189 PINPIN
-
1009103-08212 BOLT (8X135)BOLT (8X135)
-
1109103-10179 BOLT (10X190)BOLT (10X190)
-
1209103-10180 BOLT (10X200)BOLT (10X200)
-
1309168-10031 GASKET (10.2X20X2.3)GASKET (10.2X20X2.3)
-
1401421-0850A STUD BOLTSTUD BOLT
-
1508316-1008A NUTNUT
-
1609482-00528 SPARK PLUG (CR6E)SPARK PLUG (CR6E)
-
1609482-00529 SPARK PLUG (U20ESR-N)SPARK PLUG (U20ESR-N)
-
1609482-00590 SPARK PLUG (CR6EIA-9)SPARK PLUG (CR6EIA-9)
-
1609482-00516 SPARK PLUG (CR7E)SPARK PLUG (CR7E)
-
1609482-00515 SPARK PLUG (U22ESR-N)SPARK PLUG (U22ESR-N)
-
1609482-00456 SPARK PLUG (CR8E)SPARK PLUG (CR8E)
-
1609482-00457 SPARK PLUG (U24ESR-N)SPARK PLUG (U24ESR-N)
-
1711175-47D00 CAP, INSPECTIONCAP, INSPECTION
-
1811177-14D01 O RINGO RING
-
1901550-0620A BOLTBOLT
-
2009241-25007 PLUG (OD:30)PLUG (OD:30)
-
2113101-31H00 PIPE, INTAKEPIPE, INTAKE
-
2209106-06105 BOLT (6X18)BOLT (6X18)
-
2309402-56901 CLAMPCLAMP
-
2417661-31G00 COVER, THERMOSTATCOVER, THERMOSTAT
-
2507130-0825A BOLTBOLT
-
2617670-06G60 THERMOSTATTHERMOSTAT
-
2711653-11H01 PLATE, ENGINE MTG DAMPERPLATE, ENGINE MTG DAMPER
-
2811654-31G00 DAMPER, ENGINE MTGDAMPER, ENGINE MTG
-
2911655-31G03 STOPPER, ENGINE MTGSTOPPER, ENGINE MTG
-
3001550-0812A BOLTBOLT
-
3113650-10G00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
3209168-12017 GASKET (12X17X1)GASKET (12X17X1)
