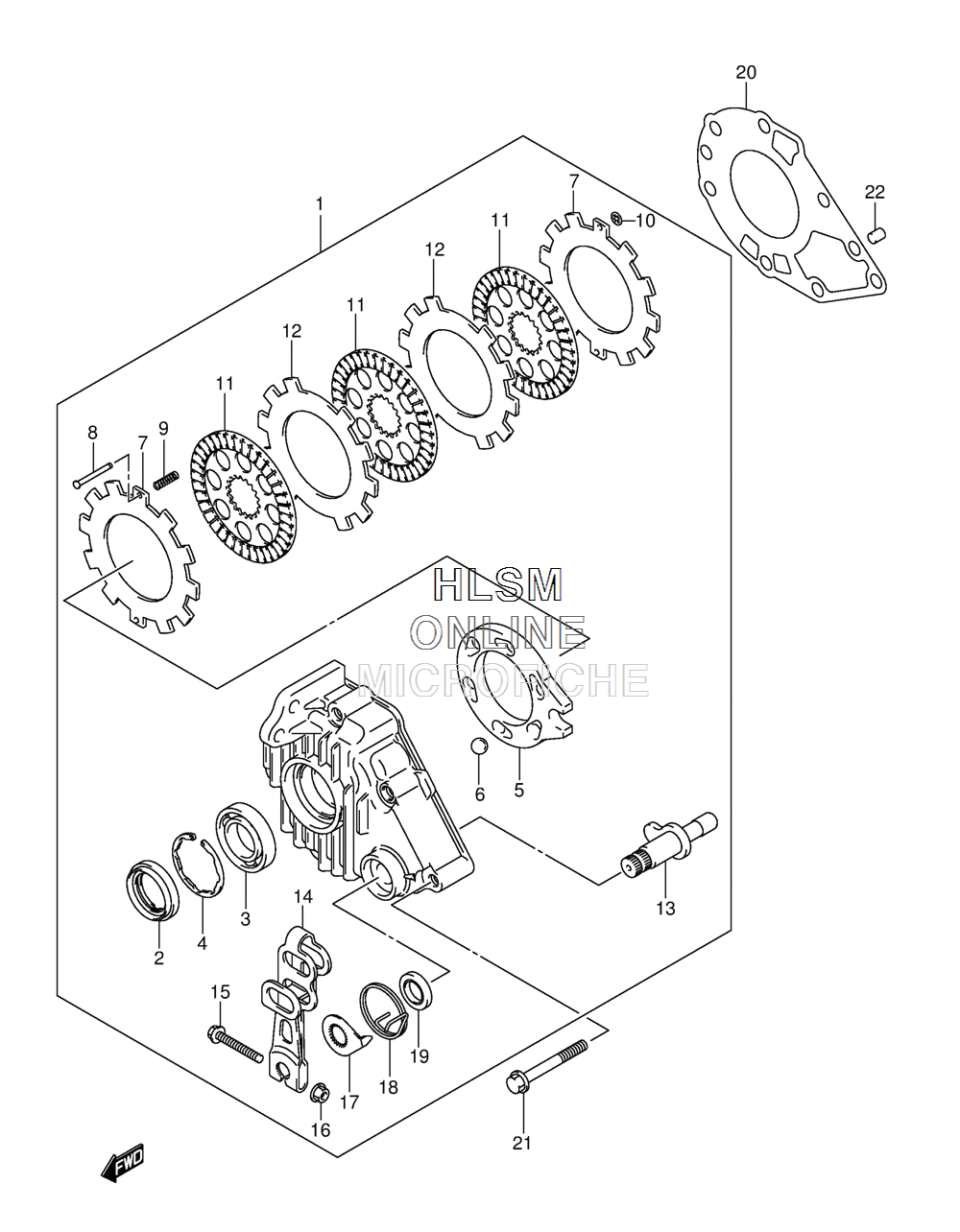

BRAKE - REAR ASSY для Suzuki LT-A750XZ KingQuad 750AXi (CAMO/LTD METALLIC RED) - 2014 года выпуска
-
№АртикулНазвание
-
164200-31G20 BRAKE ASSY, REARBRAKE ASSY, REAR
-
209283-34008 OIL SEAL (34X52X9)OIL SEAL (34X52X9)
-
308113-60050 BEARING B1 25X47X12BEARING B1 25X47X12
-
464215-31G00 CIRCLIP, REAR BRAKE CASECIRCLIP, REAR BRAKE CASE
-
564292-31G00 PLATE, PRESSUREPLATE, PRESSURE
-
664295-31G00 BALLBALL
-
764293-31G00 PLATE, SIDEPLATE, SIDE
-
864297-31G00 PIN, SIDE PLATEPIN, SIDE PLATE
-
964296-31G00 SPRING, SIDE PLATESPRING, SIDE PLATE
-
1064298-31G00 NUT, SIDE PLATENUT, SIDE PLATE
-
1164420-31G00 PLATE, FRICTIONPLATE, FRICTION
-
1264294-31G00 PLATE, SEPARATORPLATE, SEPARATOR
-
1364440-31G01 CAM, REAR BRAKECAM, REAR BRAKE
-
1464451-31G10 LEVER, REAR BRAKE CAMLEVER, REAR BRAKE CAM
-
1564455-31G00 BOLT, REAR BRAKE CAM LEVERBOLT, REAR BRAKE CAM LEVER
-
1664456-31G00 NUT, REAR BRAKE CAM LEVERNUT, REAR BRAKE CAM LEVER
-
1764492-31G00 PLATE, BRAKE LINING INDICATORPLATE, BRAKE LINING INDICATOR
-
1864484-31G00 SPRING, REAR BRAKE CAM LEVERSPRING, REAR BRAKE CAM LEVER
-
1964443-31G01 SEAL, REAR BRAKE CAMSEAL, REAR BRAKE CAM
-
2064124-31G00 GASKET, REAR BRAKE CASEGASKET, REAR BRAKE CASE
-
2109103-08332 BOLT (8X53)BOLT (8X53)
-
2209261-09002 PIN (9X10)PIN (9X10)
