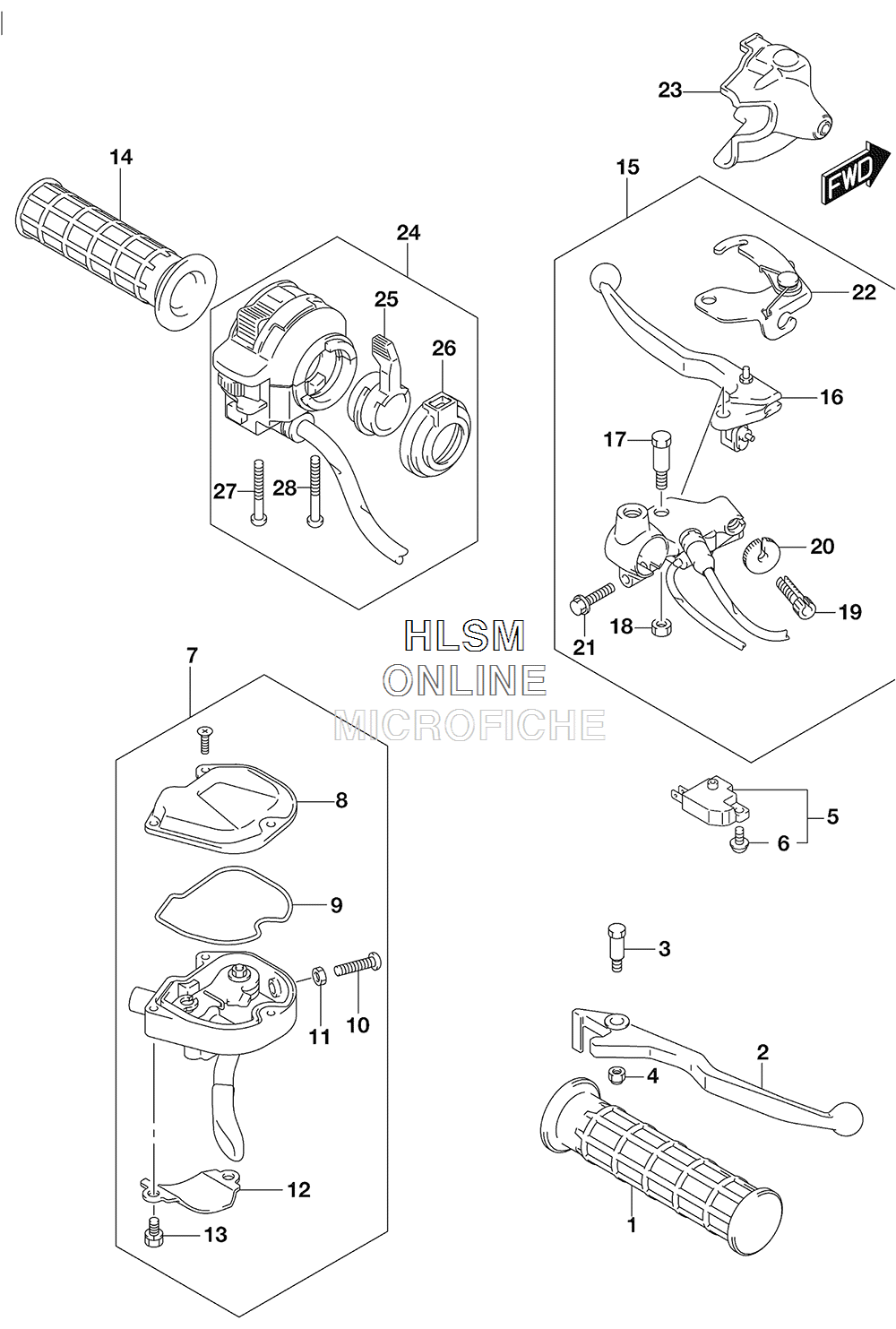

HANDLEBAR - LEVERS для Suzuki LT-A400FZL5 King Quad 400ASi - 2015 года выпуска
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257421-39D20 LEVER, FRONT BRAKELEVER, FRONT BRAKE
-
357431-04F00 BOLT, FRONT BRAKE LEVER PIVOTBOLT, FRONT BRAKE LEVER PIVOT
-
457433-09F00 NUT, FRONT BRAKE LEVER PIVOTNUT, FRONT BRAKE LEVER PIVOT
-
557460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
657465-17C00 SCREWSCREW
-
757100-27H01 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
857121-27H00 CAPCAP
-
957157-27H00 GASKETGASKET
-
1002112-0520B SCREWSCREW
-
1108310-0005B NUTNUT
-
1257126-07G00 HOLDERHOLDER
-
1357127-07G00 BOLTBOLT
-
1457211-21G10 GRIPGRIP
-
1557501-27H00 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
1657620-27820 LEVER SET, BRAKELEVER SET, BRAKE
-
1757431-09F00 BOLT, PIVOTBOLT, PIVOT
-
1808319-2106B NUTNUT
-
1957441-08C00 ADJUSTER, WIREADJUSTER, WIRE
-
2057442-08C00 NUT, LOCKNUT, LOCK
-
2101547-0620B BOLTBOLT
-
2257790-38FA0 STOPPER, BRAKE LEVERSTOPPER, BRAKE LEVER
-
2357541-38FA0 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
2437400-27H00 SWITCH ASSY, LEFT HANDSWITCH ASSY, LEFT HAND
-
2537571-19B01 LEVER, CHOKELEVER, CHOKE
-
2637576-19B01 COVER, CHOKECOVER, CHOKE
-
2702112-05407 SCREWSCREW
-
2802112-05457 SCREWSCREW
