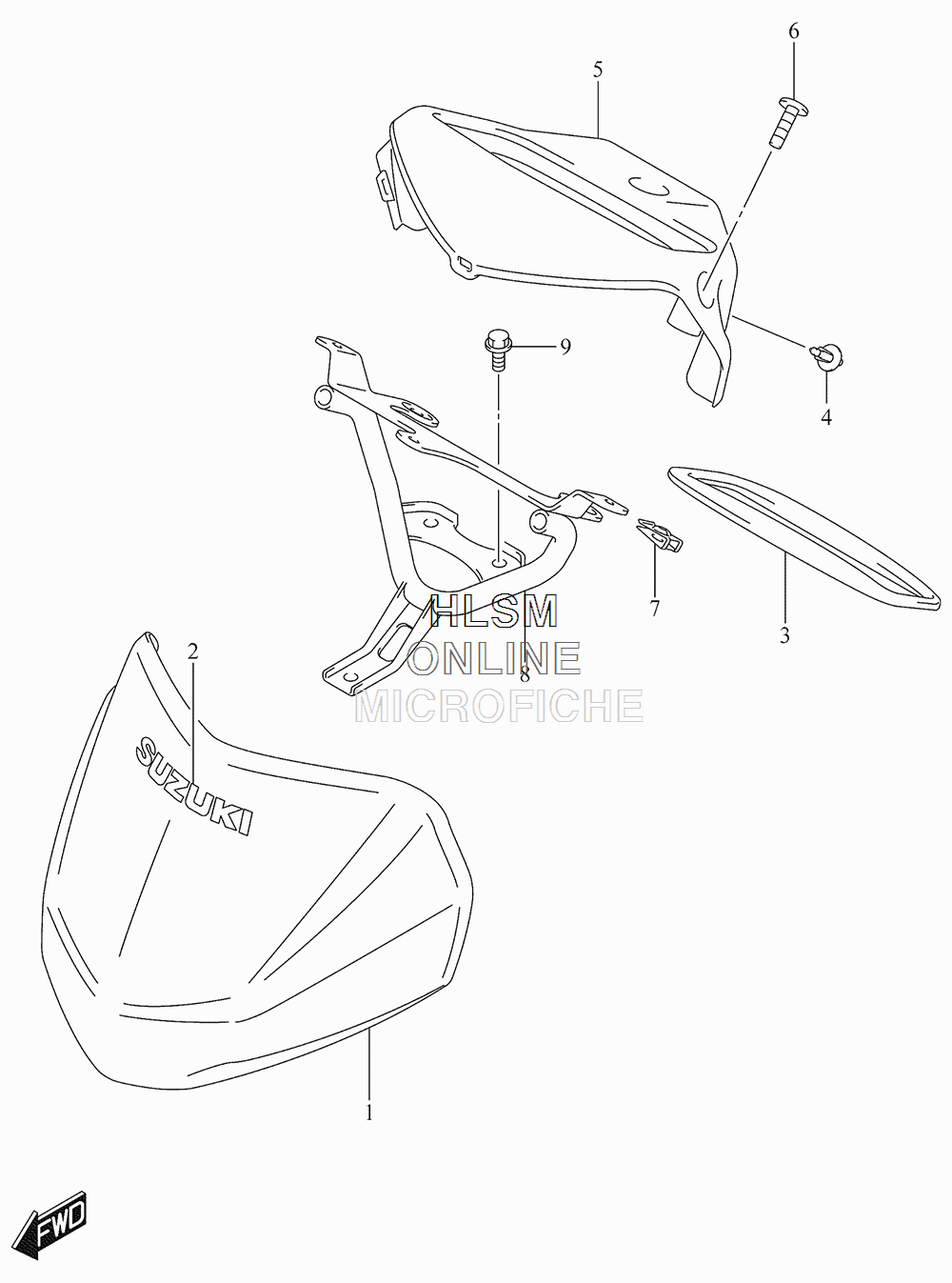

HANDLE COVER для Suzuki LT-A500XPL5 KINGQUAD 500 AXi (Power Steering) - 2015 года выпуска
-
№АртикулНазвание
-
156311-31GA0-YLG COVER, FRONT (GREEN)COVER, FRONT (GREEN)
-
156311-31GA0-YT9 COVER, FRONT (BLACK)COVER, FRONT (BLACK)
-
268171-31GA0-1ZZ EMBLEM, SUZUKI (GRAY)EMBLEM, SUZUKI (GRAY)
-
356317-31G00 MOLDING, HANDLE COVERMOLDING, HANDLE COVER
-
409409-07333 CLIPCLIP
-
556321-11H00-291 COVER, HANDLE REAR (BLACK)COVER, HANDLE REAR (BLACK)
-
603141-0525A SCREWSCREW
-
709148-05038 NUTNUT
-
856160-11H00 BRACE, COVERBRACE, COVER
-
901550-0812A BOLTBOLT
