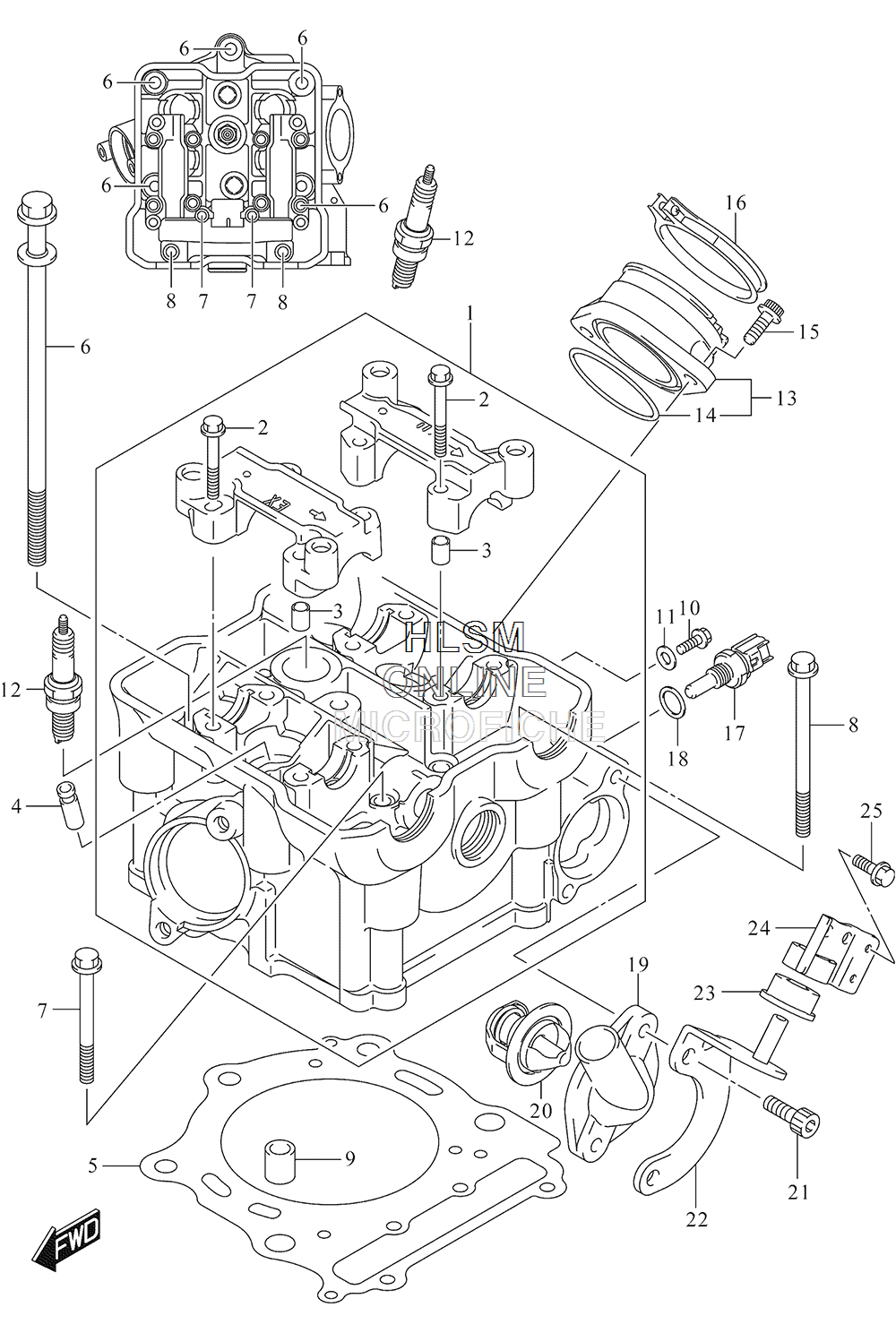

CYLINDER HEAD для Suzuki LT-A750XL5 KINGQUAD 750 AXi - 2015 года выпуска
-
№АртикулНазвание
-
111100-31G50 HEAD ASSY, CYLINDERHEAD ASSY, CYLINDER
-
209103-06266 BOLT (6X40)BOLT (6X40)
-
309206-08001 PIN (8X11)PIN (8X11)
-
411115-32E70 GUIDE, VALVE (OS:0.3) (OPT)GUIDE, VALVE (OS:0.3) (OPT)
-
511141-31G50 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
611161-31G00 BOLT, CYLINDER HEAD (L:200)BOLT, CYLINDER HEAD (L:200)
-
709103-06060 BOLT (6X100)BOLT (6X100)
-
809103-06103 BOLT (6X70)BOLT (6X70)
-
904211-13189 PINPIN
-
1009103-06222 BOLT (6X12)BOLT (6X12)
-
1109168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1209482-00624 SPARK PLUG (LMAR7A-9) (NGK)SPARK PLUG (LMAR7A-9) (NGK)
-
1209482-00623 SPARK PLUG (LMAR6A-9) (OPT NGK)SPARK PLUG (LMAR6A-9) (OPT NGK)
-
1209482-00625 SPARK PLUG (LMAR8A-9) (OPT NGK)SPARK PLUG (LMAR8A-9) (OPT NGK)
-
1313101-31G00 PIPE ASSY, INTAKEPIPE ASSY, INTAKE
-
1413118-31G00 O RINGO RING
-
1509106-06105 BOLT (6X18)BOLT (6X18)
-
1609402-62208 CLAMPCLAMP
-
1713650-10G00 SENSOR, WATER TEMPSENSOR, WATER TEMP
-
1809168-12017 GASKET (12X17X1)GASKET (12X17X1)
-
1917661-31G00 COVER THERMOSTATCOVER THERMOSTAT
-
2017670-06G60 THERMOSTAT, WATERTHERMOSTAT, WATER
-
2107130-0825A BOLTBOLT
-
2211653-31G02 PLATE, ENG MTG DAMPERPLATE, ENG MTG DAMPER
-
2311654-31G00 DAMPER, ENG MTGDAMPER, ENG MTG
-
2411655-31G10 STOPPER, ENG MTGSTOPPER, ENG MTG
-
2501550-0812A BOLTBOLT
