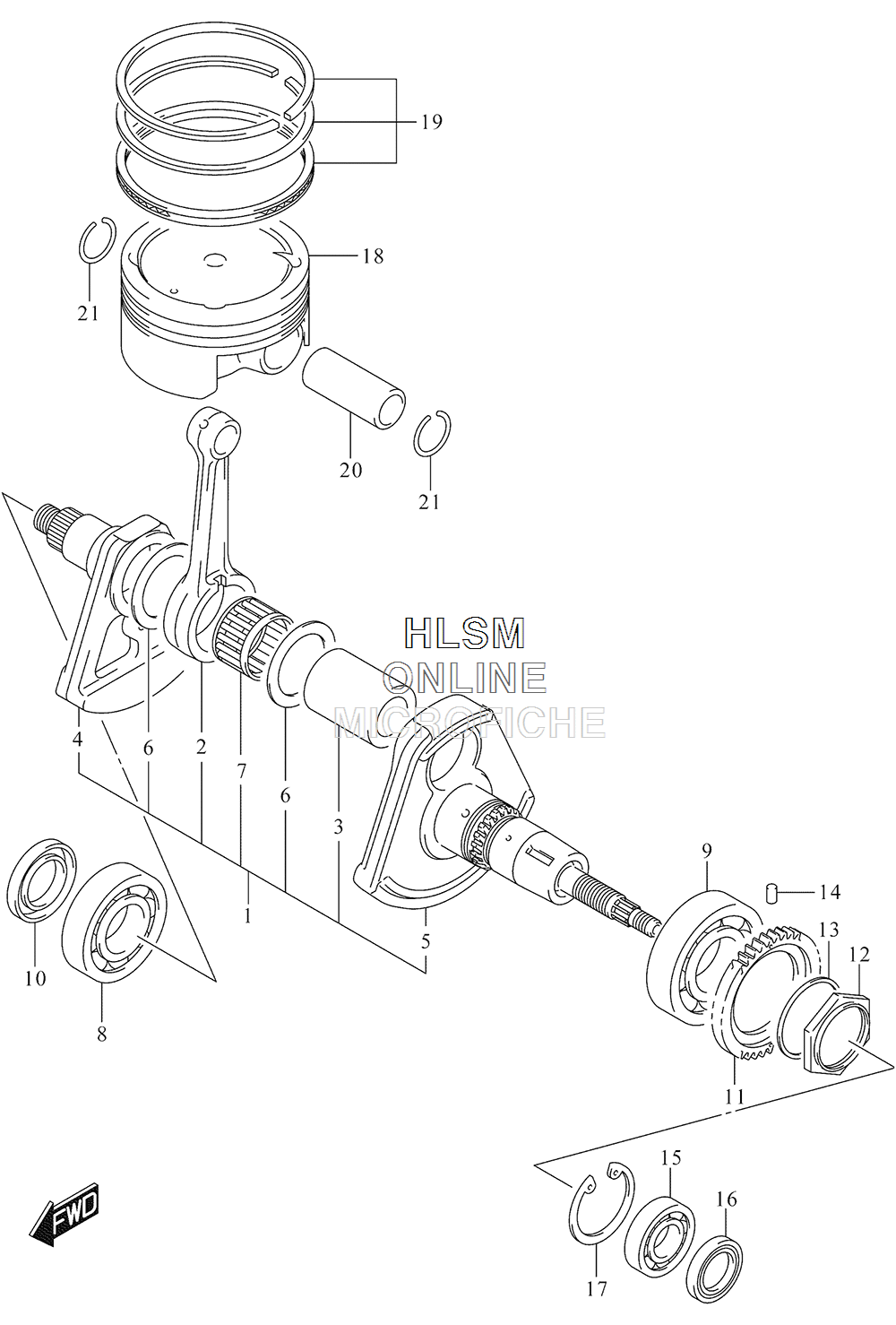

CRANKSHAFT W/ PISTON для Suzuki LT-A750XPZL5 KINGQUAD 750 AXi Limited Edition - 2015 года выпуска
-
№АртикулНазвание
-
112200-31G31 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-31G01 CONNRODCONNROD
-
312210-31D00 PIN, CRANKPIN, CRANK
-
412220-31G20 CRANKSHAFT RIGHT HANDCRANKSHAFT RIGHT HAND
-
512261-31G10 CRANKSHAFT LEFT HANDCRANKSHAFT LEFT HAND
-
609160-41002 WASHER (41X61X1)WASHER (41X61X1)
-
709263-41008 BEARING (41X51X24.8)BEARING (41X51X24.8)
-
812223-31G01 BEARINGBEARING
-
909262-45007 BEARING (45X85X19)BEARING (45X85X19)
-
1009282-34001 OIL SEAL (34X52X6)OIL SEAL (34X52X6)
-
1112661-31G01 GEAR, CRANK BALANCER DRIVE (NT:43)GEAR, CRANK BALANCER DRIVE (NT:43)
-
1212664-31G00 NUT, CRANK BALANCER DRIVE GEARNUT, CRANK BALANCER DRIVE GEAR
-
1309160-45006 WASHER (45X60X1.2)WASHER (45X60X1.2)
-
1409261-05005 PIN (5X8)PIN (5X8)
-
1509262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1609283-25095 OIL SEAL (25X42X6)OIL SEAL (25X42X6)
-
1708331-41479 CIRCLIPCIRCLIP
-
1812111-31G50-0F0 PISTONPISTON
-
1912140-31G50 RING SET, PISTONRING SET, PISTON
-
2012151-31G10 PIN, PISTONPIN, PISTON
-
2109381-23003 CIRCLIPCIRCLIP
