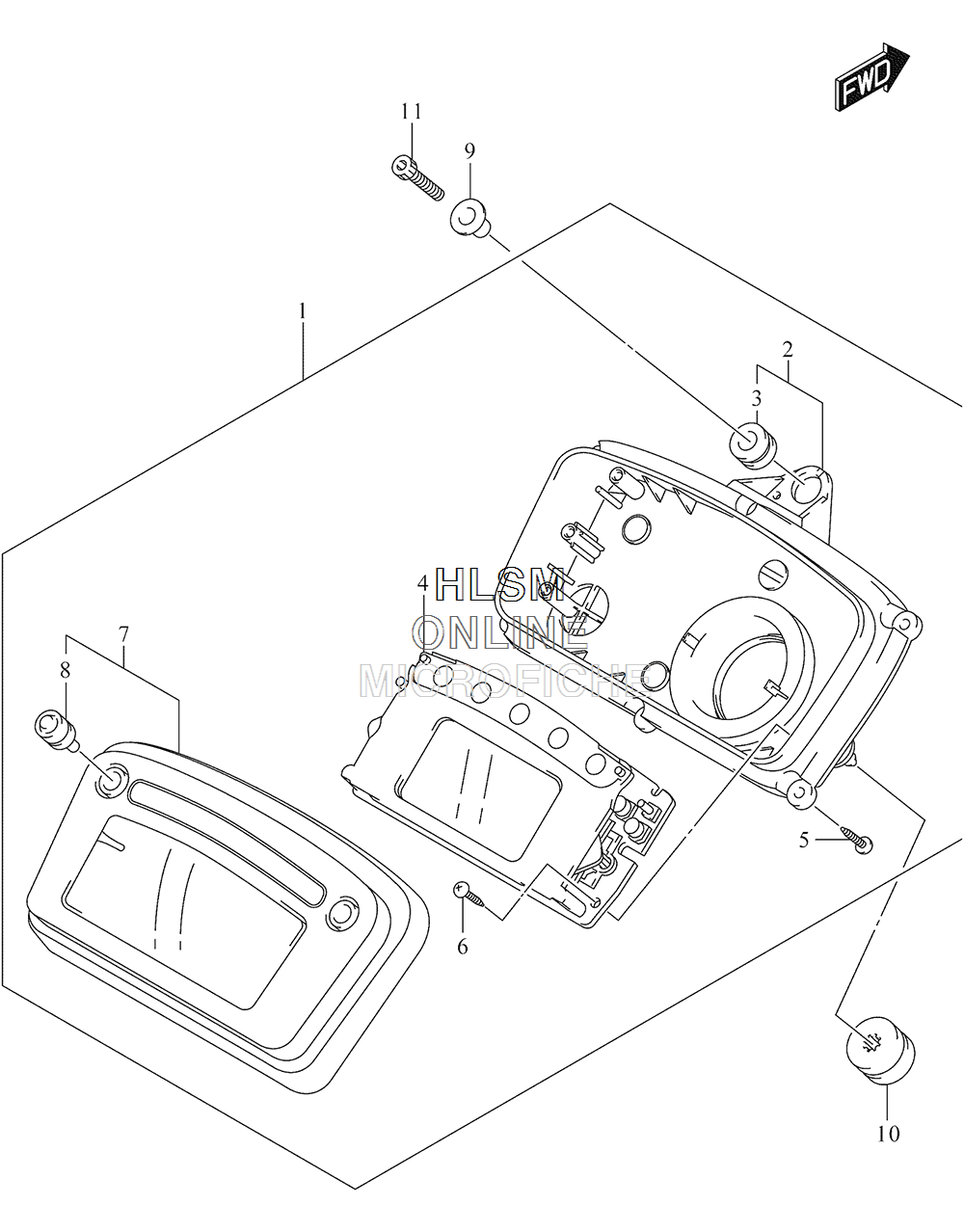

SPEEDOMETER (P28) для Suzuki LT-A750XVL5 KINGQUAD 750 AXi V 4x4 - 2015 года выпуска
-
№АртикулНазвание
-
134100-31GG0 SPEEDOMETER ASSY (KILO)SPEEDOMETER ASSY (KILO)
-
234111-31GE0 LOWER CASE ASSYLOWER CASE ASSY
-
334955-03GE0 CUSHION, METERCUSHION, METER
-
434120-31GG0 SPEEDOMETERSPEEDOMETER
-
534149-03G00 SCREW (3X14)SCREW (3X14)
-
634149-31F10 SCREW (3X14)SCREW (3X14)
-
734150-31GE0 CASE, UPPERCASE, UPPER
-
834124-03GE0 SWITCH, RUBBERSWITCH, RUBBER
-
934187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
1034955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1107130-0520B BOLTBOLT
