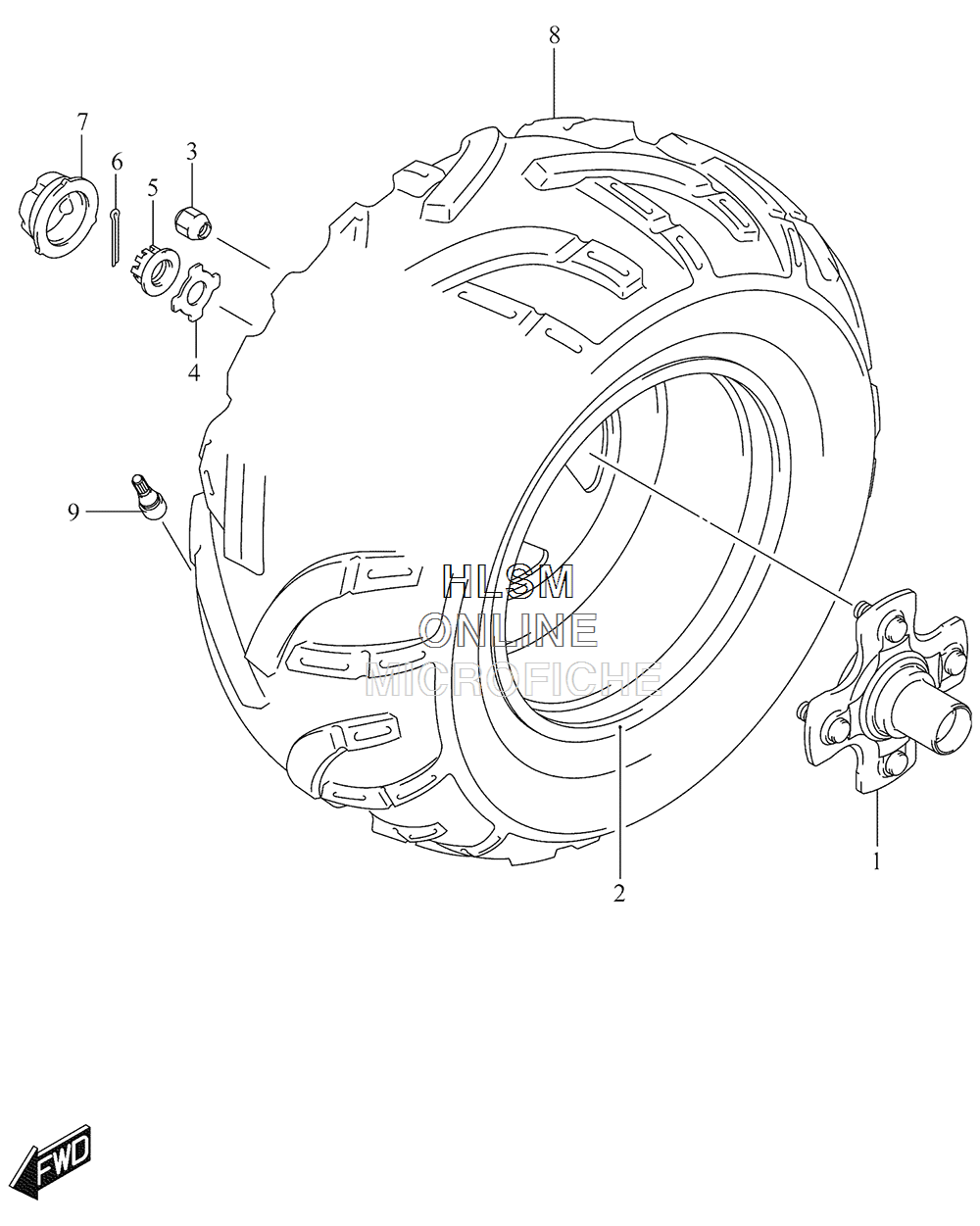

WHEEL - REAR - RIGHT HAND для Suzuki LT-A750XZVL5 KINGQUAD 750 AXi - 2015 года выпуска
-
№АртикулНазвание
-
164110-31G10 HUB, REAR WHEELHUB, REAR WHEEL
-
265310-31G50-291 RIM, REAR WHEEL (12X7.5AT) (BLACK)RIM, REAR WHEEL (12X7.5AT) (BLACK)
-
309159-10114 NUTNUT
-
464723-03G00 WASHER, HUBWASHER, HUB
-
509141-20008 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
865110-31G20 TIRE, REAR (AT25X10-12)TIRE, REAR (AT25X10-12)
-
943130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
