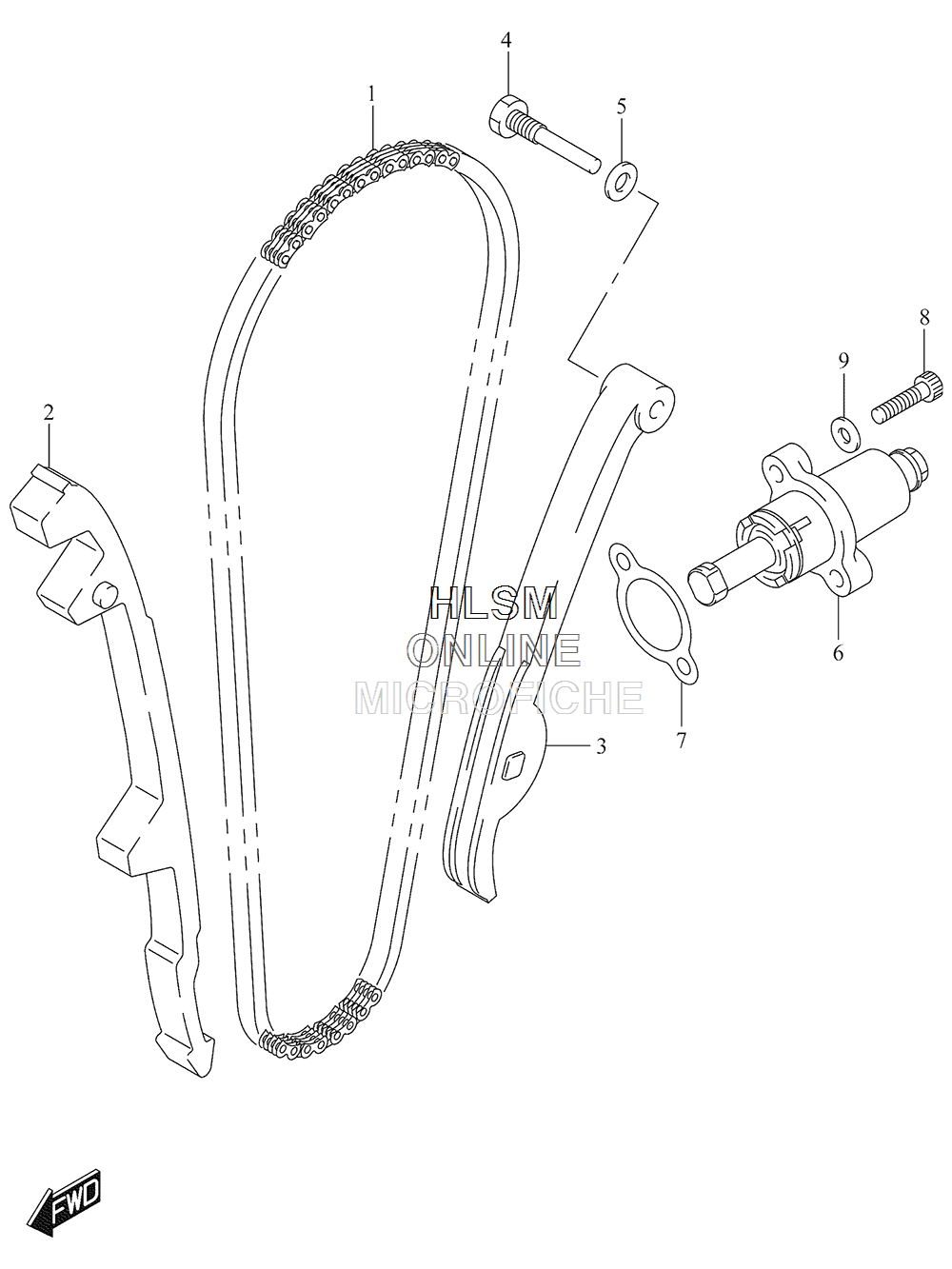

CAM CHAIN ASSY. W/ TENSIONER для Suzuki LTA500XL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
112760-09F00 CHAIN, CAM SHAFT DRIVE (92RIGHT HAND2015-124MPX)CHAIN, CAM SHAFT DRIVE (92RIGHT HAND2015-124MPX)
-
212771-11H00 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
312811-09F00 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
412812-32400 BOLTBOLT
-
509168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
612830-32E00 ADJUSTER ASSY, TENSIONERADJUSTER ASSY, TENSIONER
-
712837-24A10 GASKETGASKET
-
807130-0625A BOLTBOLT
-
909168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
