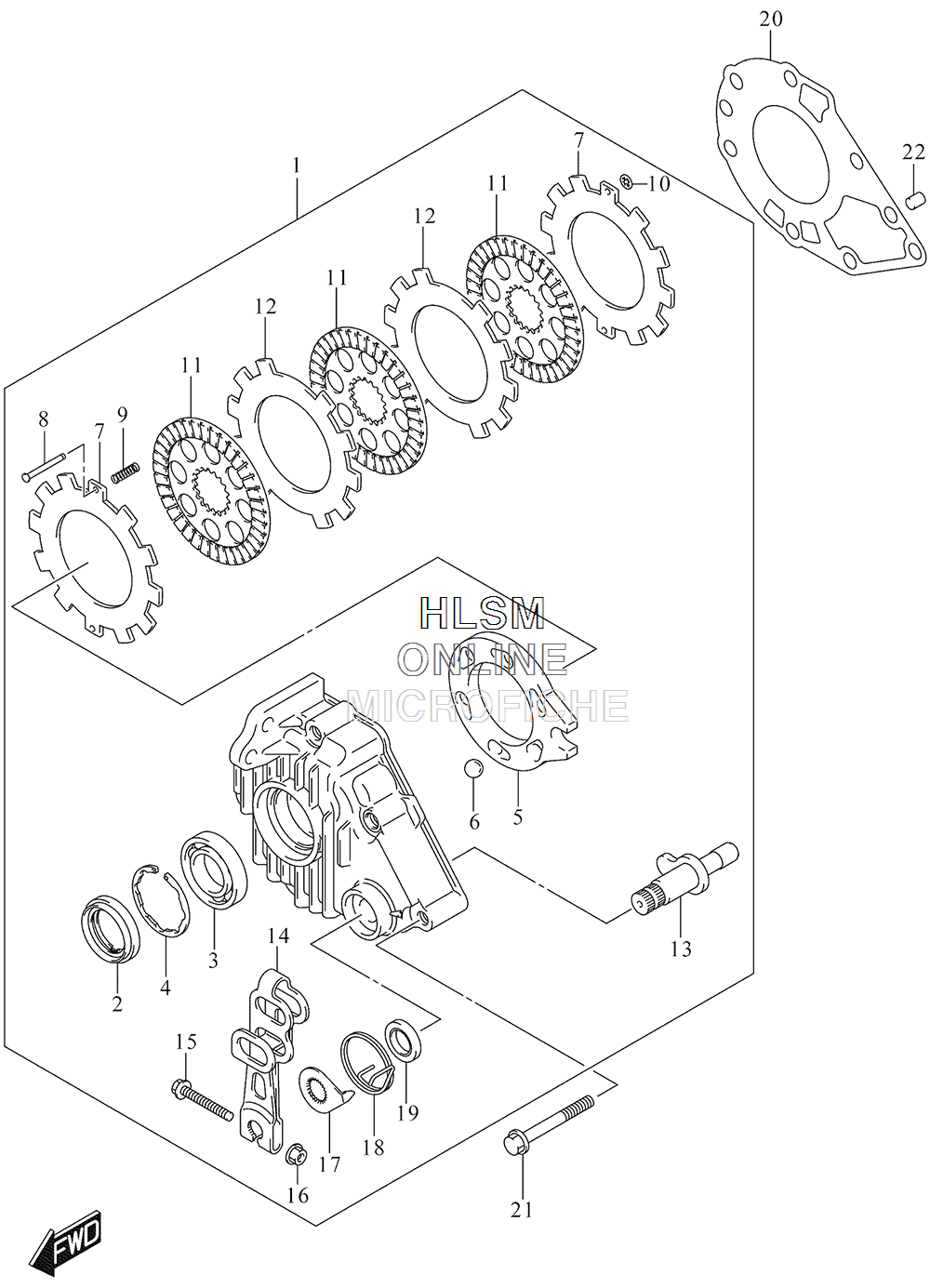

REAR BRAKE для Suzuki LTA500XL5 King Quad 500 AXi - 2015 года выпуска
-
№АртикулНазвание
-
164200-31G20 BRAKE ASSY, REARBRAKE ASSY, REAR
-
209283-34008 .OIL SEAL (34X52X9).OIL SEAL (34X52X9)
-
308113-60050 .BEARING.BEARING
-
464215-31G00 .CIRCLIP, RR BRAKE CASE.CIRCLIP, RR BRAKE CASE
-
564292-31G00 .PLATE, PRESSURE.PLATE, PRESSURE
-
664295-31G00 .BALL.BALL
-
764293-31G00 .PLATE, SIDE.PLATE, SIDE
-
864297-31G00 .PIN, SIDE PLATE.PIN, SIDE PLATE
-
964296-31G00 .SPRING, SIDE PLATE.SPRING, SIDE PLATE
-
1064298-31G00 .NUT, SIDE PLATE.NUT, SIDE PLATE
-
1164420-31G00 .PLATE, FRICTION.PLATE, FRICTION
-
1264294-31G00 .PLATE, SEPARATOR.PLATE, SEPARATOR
-
1364440-31G01 .CAM, REAR BRAKE.CAM, REAR BRAKE
-
1464451-31G10 .LEVER, RR BRAKE CAM.LEVER, RR BRAKE CAM
-
1564455-31G00 .BOLT, RR BRAKE CAM LEVER.BOLT, RR BRAKE CAM LEVER
-
1664456-31G00 .NUT, RR BRAKE CAM LEVER.NUT, RR BRAKE CAM LEVER
-
1764492-31G00 .PLATE, BRAKE LINING INDICATOR.PLATE, BRAKE LINING INDICATOR
-
1864484-31G00 .SPRING, RR BRAKE CAM LEVER.SPRING, RR BRAKE CAM LEVER
-
1964443-31G01 .SEAL, RR BRAKE CAM.SEAL, RR BRAKE CAM
-
2064124-31G00 GASKET, RR BRAKE CASEGASKET, RR BRAKE CASE
-
2109103-08332 BOLT (8X53)BOLT (8X53)
-
2209261-09002 PIN (9X10)PIN (9X10)
