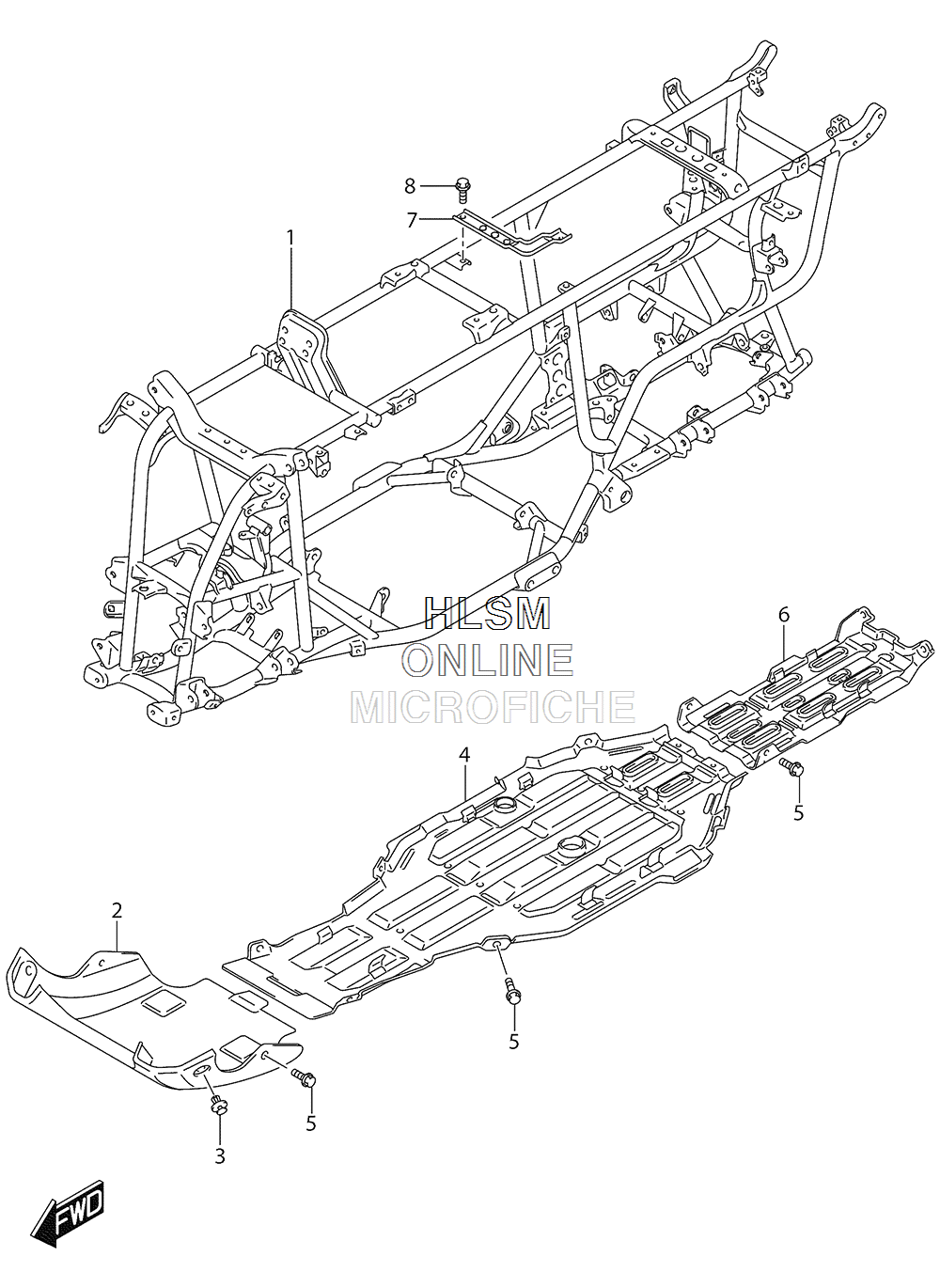

FRAME для Suzuki KINGQUAD 500 AXI (POWER STEERING) [LTA500XPL6] - 2016 года выпуска
-
№АртикулНазвание
-
141100-31GE0-019 FRAME (BLACK)FRAME (BLACK)
-
242521-31G00-291 PROTECTOR, FRONT (BLACK)PROTECTOR, FRONT (BLACK)
-
309409-08335 CLIPCLIP
-
442511-31G02 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
509111-06085 BOLT (6X12)BOLT (6X12)
-
642531-31GB0 PROTECTOR, REARPROTECTOR, REAR
-
741561-31G00 PLATE, BATTERYPLATE, BATTERY
-
809103-06283 BOLT (6X16)BOLT (6X16)
