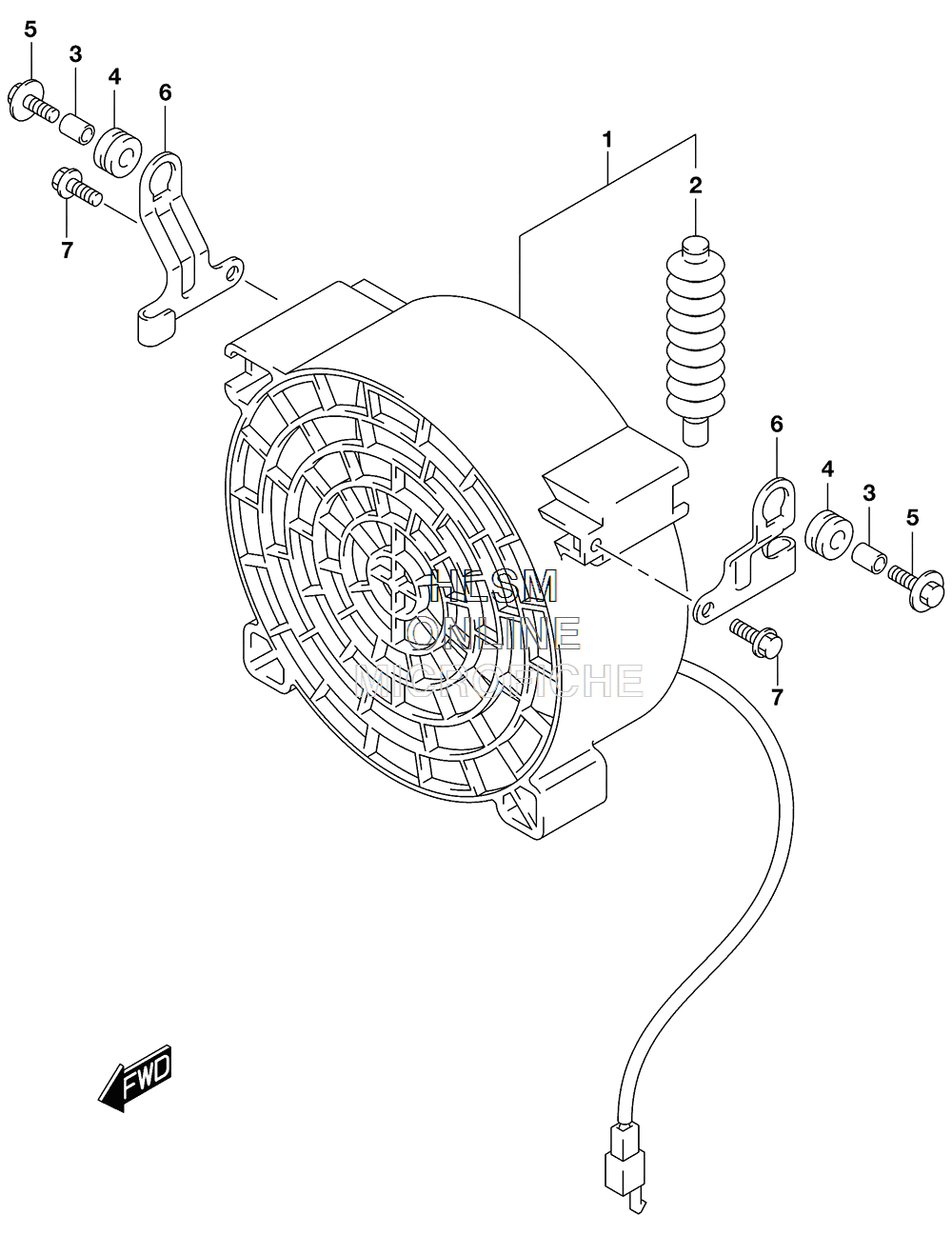

COOLING FAN для Suzuki KingQuad 400ASi [LT-A400F] - 2017 года выпуска
-
№АртикулНазвание
-
117800-27H10 FAN ASSY, COOLINGFAN ASSY, COOLING
-
217820-07G10 ...BOOT...BOOT
-
309180-06310 SPACER (6.5X10X10)SPACER (6.5X10X10)
-
409320-10015 CUSHIONCUSHION
-
509116-06212 BOLT (6X20)BOLT (6X20)
-
617810-38F00 BRACKET, COOLING FANBRACKET, COOLING FAN
-
701550-0612A BOLTBOLT
