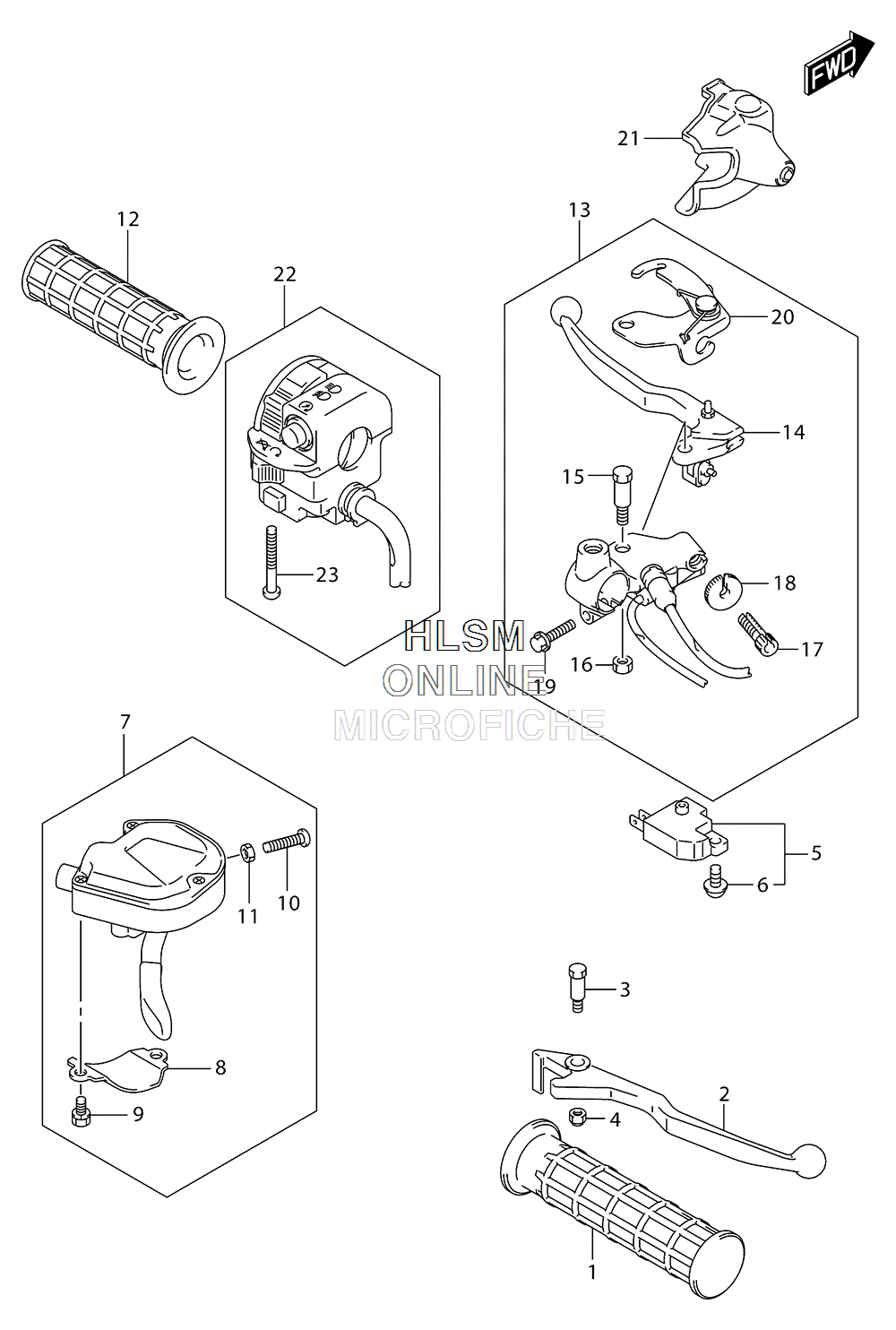

HANDLEBAR - LEVERS / SWITCHES для Suzuki KINGQUAD 750AXi [LT-A750X] - 2017 года выпуска
-
№АртикулНазвание
-
157211-21G10 GRIPGRIP
-
257421-39D20 LEVER, BRAKELEVER, BRAKE
-
357431-04F00 BOLT, PIVOTBOLT, PIVOT
-
457433-09F00 NUTNUT
-
557460-14J01 SWITCH ASSY, FRONT BRAKESWITCH ASSY, FRONT BRAKE
-
657465-17C00 ...SCREW...SCREW
-
757100-27H11 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
857126-07G00 ...HOLDER...HOLDER
-
957127-07G00 ...BOLT...BOLT
-
1002112-0520B ...SCREW...SCREW
-
1108310-0005B ...NUT...NUT
-
1257211-21G10 GRIPGRIP
-
1357501-27H00 LEVER ASSY, REAR BRAKELEVER ASSY, REAR BRAKE
-
1457620-27820 ...LEVER...LEVER
-
1557431-09F00 ...BOLT, PIVOT...BOLT, PIVOT
-
1608319-2106B ...NUT...NUT
-
1757441-08C00 ...ADJUSTER, WIRE...ADJUSTER, WIRE
-
1857442-08C00 ...NUT, WIRE...NUT, WIRE
-
1901547-0620B ...BOLT...BOLT
-
2057790-38FA0 ...STOPPER, BRAKE LEVER...STOPPER, BRAKE LEVER
-
2157541-38FA0 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
2237400-31G00 SWITCH ASSY, LEFT HANDSWITCH ASSY, LEFT HAND
-
2302112-0535B ...SCREW...SCREW
