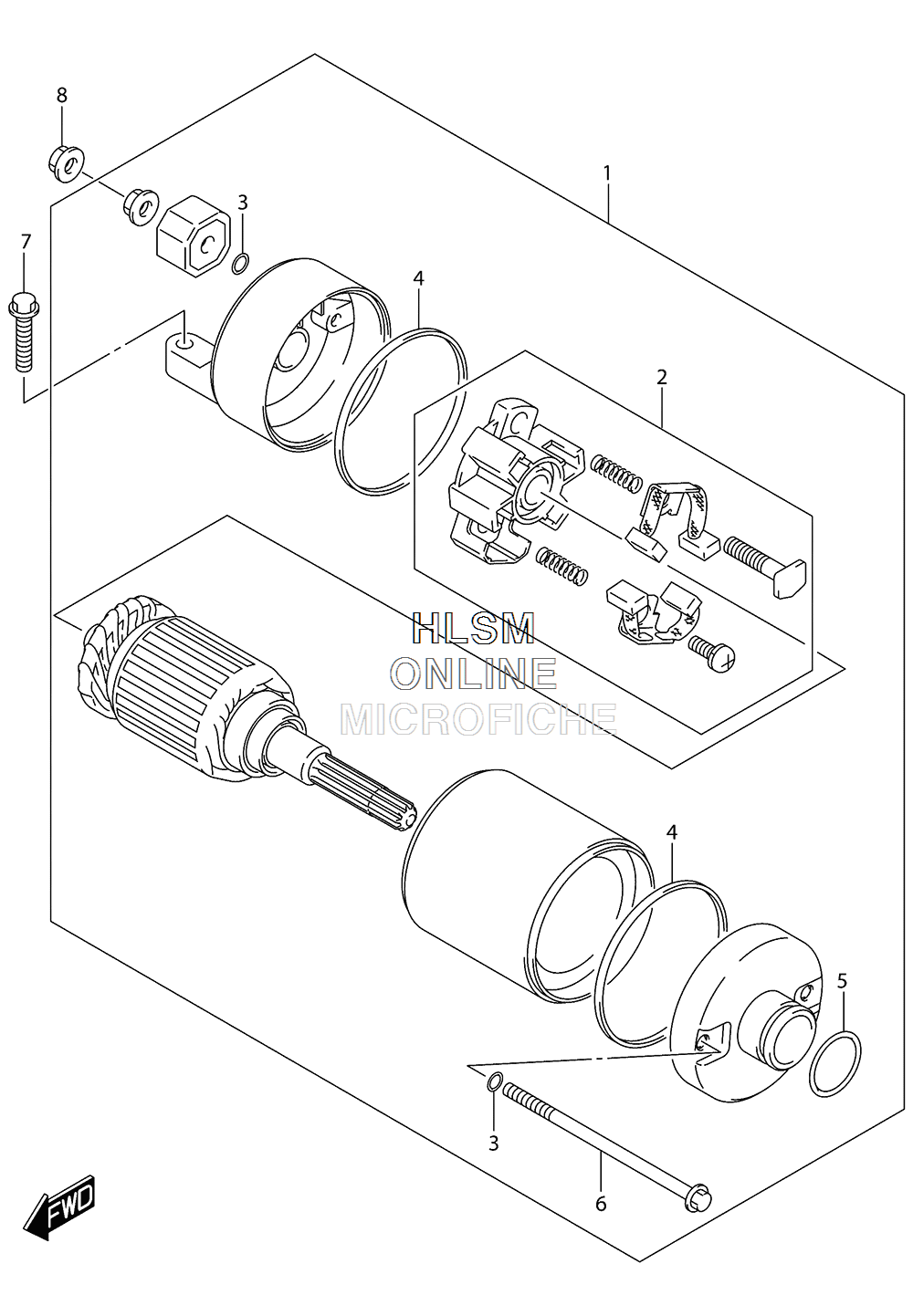

STARTING MOTOR для Suzuki KINGQUAD 750AXi POWER STEERING SPECIAL EDITION [LT-A750XPZ] - 2017 года выпуска
-
№АртикулНазвание
-
131100-31G10 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231132-18H00 ...BRUSH HOLDER SET...BRUSH HOLDER SET
-
331143-49040 ...O RING...O RING
-
431156-98E00 ...O RING...O RING
-
531264-31300 ...O RING...O RING
-
631280-18H00 ...SET BOLT...SET BOLT
-
701547-0625A BOLTBOLT
-
808361-3506A NUTNUT
