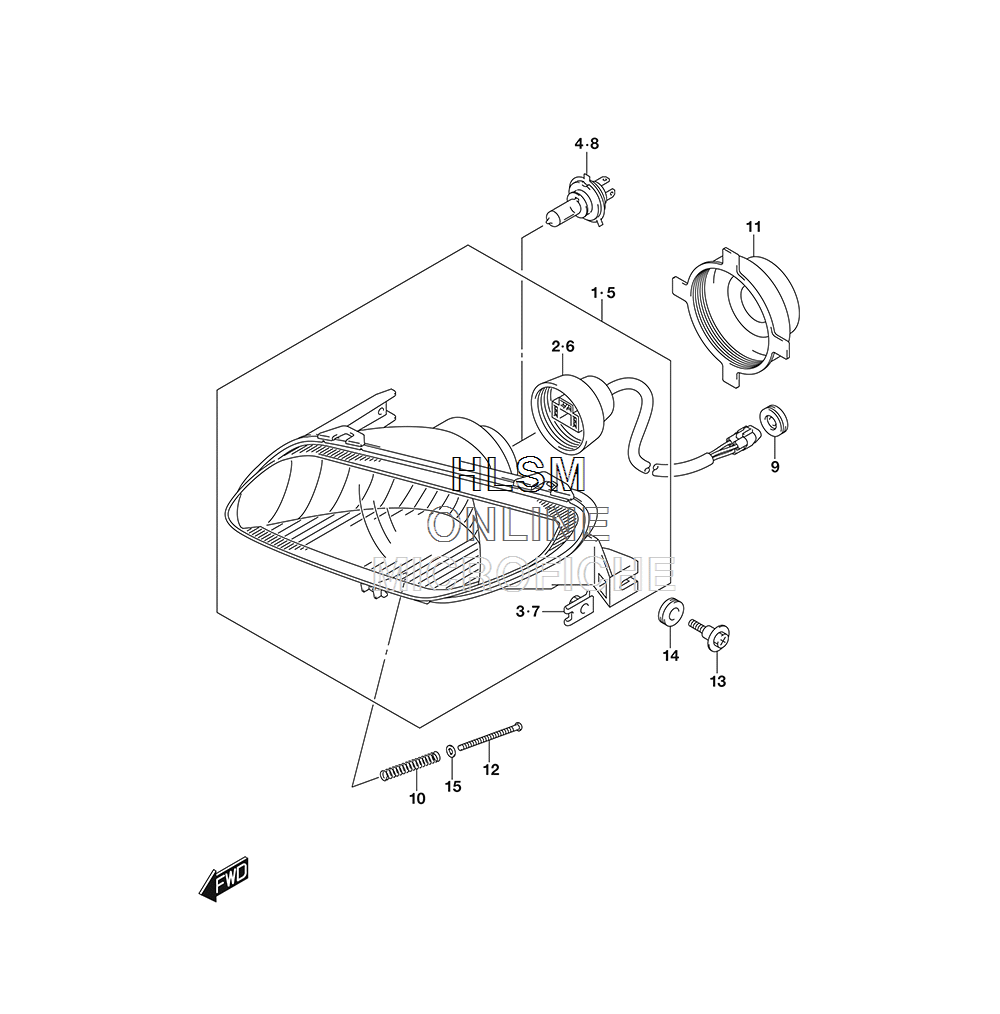

HEADLAMP (CALIF.) для Suzuki LT-A750XL8 KINGQUAD 750AXI - 2018 года выпуска
-
№АртикулНазвание
-
135100-31G92-999 HEADLAMP ASSY (RH)HEADLAMP ASSY (RH)
-
235171-31GM1 ...CORD ASSY (RH)...CORD ASSY (RH)
-
335157-31G90 ...NUT...NUT
-
409471-12225 BULB (12V,35/35W)BULB (12V,35/35W)
-
535300-31G92-999 HEADLAMP ASSY (LH)HEADLAMP ASSY (LH)
-
635171-31GH1 ...CORD ASSY (LH)...CORD ASSY (LH)
-
735157-31G90 ...NUT...NUT
-
809471-12225 BULB (12V,35/35W)BULB (12V,35/35W)
-
909308-07011 GROMMETGROMMET
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW (4X50)SCREW (4X50)
-
1309139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1409320-10043 CUSHIONCUSHION
