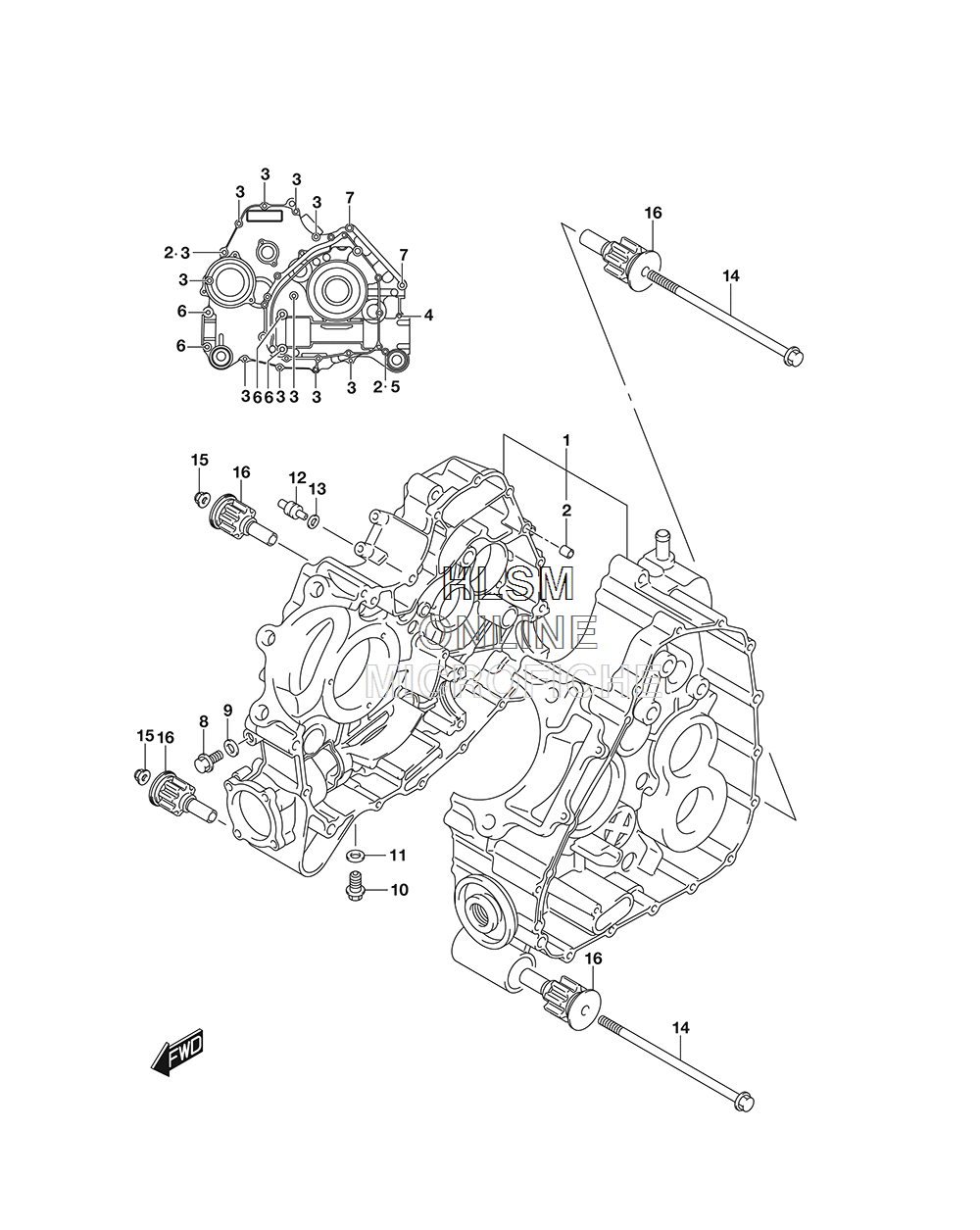

CRANKCASE для Suzuki LT-A750XPL8 KINGQUAD 750 AXI POWER STEERING - 2018 года выпуска
-
№АртикулНазвание
-
111300-31811 CRANKCASE SETCRANKCASE SET
-
204211-11169 ...PIN...PIN
-
301547-0650A ...BOLT...BOLT
-
401547-0680A ...BOLT...BOLT
-
501547-0690A ...BOLT...BOLT
-
601550-0850A ...BOLT...BOLT
-
701550-0875A ...BOLT...BOLT
-
801550-0812A BOLTBOLT
-
909168-08016 GASKET (8.2X14X1)GASKET (8.2X14X1)
-
1009247-12102 PLUG (OIL DRAIN)PLUG (OIL DRAIN)
-
1109168-12002 GASKET (12.1X16.2X3.7)GASKET (12.1X16.2X3.7)
-
1209493-20014 JET, OIL GALLERYJET, OIL GALLERY
-
1309280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
1409103-10118 BOLT (10X195)BOLT (10X195)
-
1509159-10115 NUTNUT
