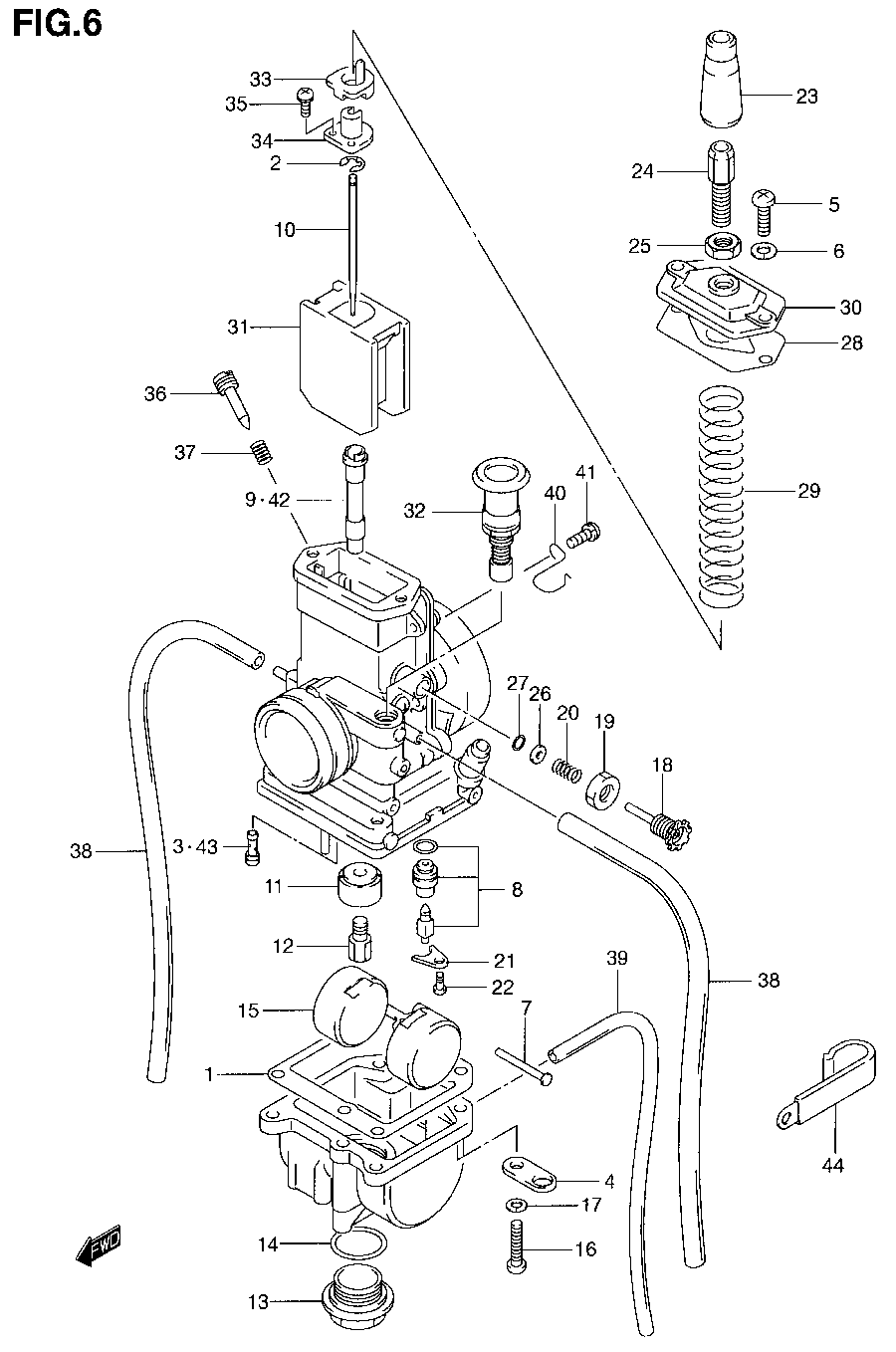

CARBURETOR для Suzuki RM80Y - 2000 года выпуска
-
№АртикулНазвание
-
13200-03B00 CARBURETOR ASSYCARBURETOR ASSY
-
113251-02B40 ...GASKET...GASKET
-
213394-10010 ...E RING...E RING
-
309492-30006 ...JET, PILOT (30)...JET, PILOT (30)
-
413693-36500 ...PLATE...PLATE
-
502112-04123 ...SCREW...SCREW
-
608321-01043 ...LOCK WASHER...LOCK WASHER
-
713254-92311 ...PIN, FLOAT...PIN, FLOAT
-
813370-02B50 ...VALVE ASSY, NEEDLE...VALVE ASSY, NEEDLE
-
909494-00523 ...JET, NEEDLE (P-4)...JET, NEEDLE (P-4)
-
1013383-46900 ...NEEDLE, JET (5DP39-4)...NEEDLE, JET (5DP39-4)
-
1113331-28710 ...RING...RING
-
1209491-42005 ...JET, MAIN (210)...JET, MAIN (210)
-
1313247-46900 ...PLUG, DRAIN...PLUG, DRAIN
-
1413246-29630 ...O RING...O RING
-
1513252-02B50 ...FLOAT...FLOAT
-
1602112-04203 ...SCREW...SCREW
-
1708321-01043 ...LOCK WASHER...LOCK WASHER
-
1813267-16700 ...ADJUSTER, THROTTLE STOP...ADJUSTER, THROTTLE STOP
-
1913661-02B00 ...NUT...NUT
-
2013268-35010 ...SPRING...SPRING
-
2113373-39110 ...PLATE, NEEDLE VALVE...PLATE, NEEDLE VALVE
-
2202112-04087 ...SCREW...SCREW
-
2313681-33010 ...CAP, ADJUSTER...CAP, ADJUSTER
-
2413577-41612 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
2513661-16600 ...NUT...NUT
-
2613291-35010 ...WASHER...WASHER
-
2713295-33010 ...O RING...O RING
-
2813266-16700 ...GASKET, TOP...GASKET, TOP
-
2913573-16700 ...SPRING, THROTTLE VALVE...SPRING, THROTTLE VALVE
-
3013261-16700 ...CAP, TOP...CAP, TOP
-
3113551-20910 ...VALVE, PISTON (CA:4.0)...VALVE, PISTON (CA:4.0)
-
3213410-26410 ...PLUNGER ASSY...PLUNGER ASSY
-
3313629-16700 ...RING...RING
-
3413398-16700 ...CONNECTOR...CONNECTOR
-
3502112-33103 ...SCREW...SCREW
-
3613269-16700 ...SCREW, AIR (1 1/2)...SCREW, AIR (1 1/2)
-
3713268-01010 ...SPRING...SPRING
-
3809351-35653-600 ...HOSE (3.5X6.5X600)...HOSE (3.5X6.5X600)
-
3909352-30503-600 ...HOSE, OVER FLOW (3X5X600)...HOSE, OVER FLOW (3X5X600)
-
4013692-14500 ...CLIP...CLIP
-
4113601-04148 ...SCREW...SCREW
-
42-109494-00519 JET, NEEDLE (P-0) (OPT)JET, NEEDLE (P-0) (OPT)
-
42-209494-00522 JET, NEEDLE (P-2) (OPT)JET, NEEDLE (P-2) (OPT)
-
42-309494-00585 JET, NEEDLE (P-6) (OPT)JET, NEEDLE (P-6) (OPT)
-
43-109492-25005 JET, PILOT (25) (OPT)JET, PILOT (25) (OPT)
-
43-209492-35004 JET, PILOT (35) (OPT)JET, PILOT (35) (OPT)
-
4409403-06307 CLAMPCLAMP
