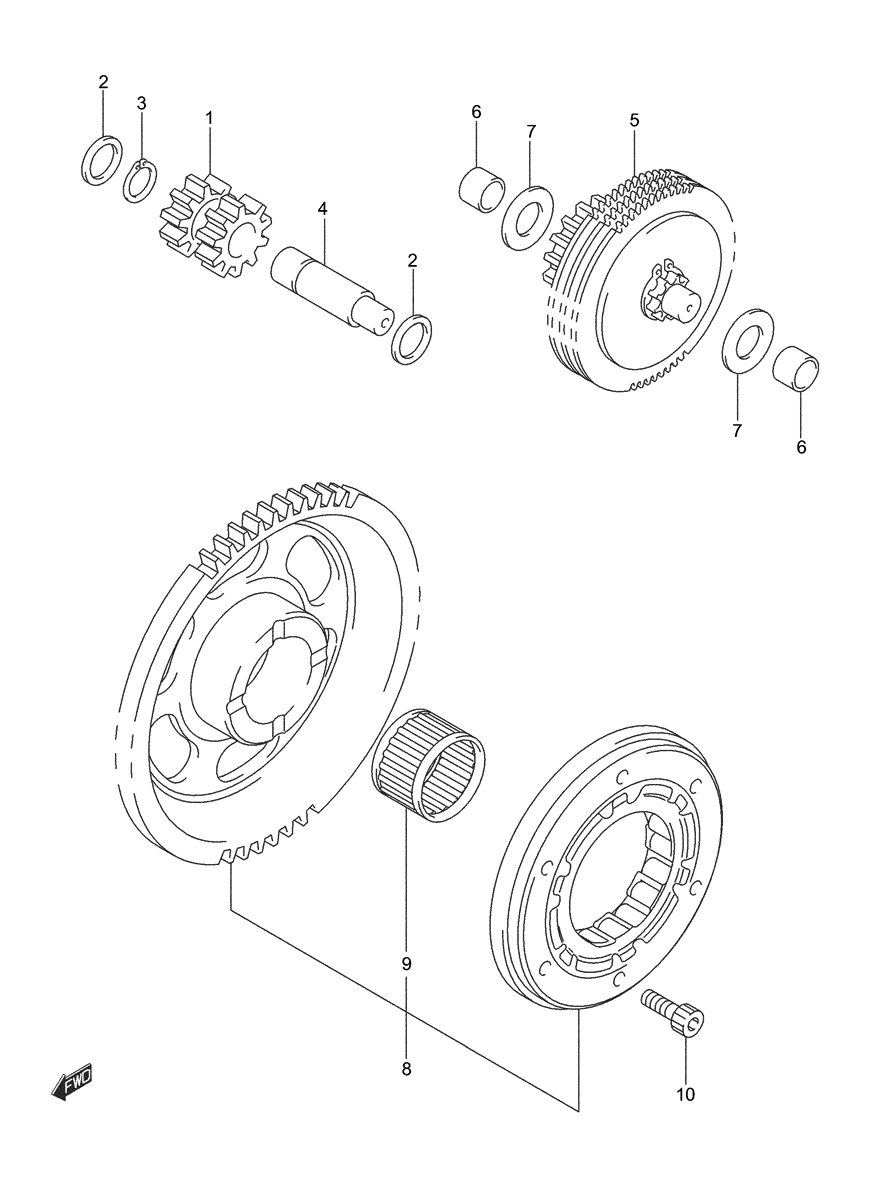

STARTER CLUTCH для Suzuki DR-Z400EK1 - 2001 года выпуска
-
№АртикулНазвание
-
112611-29F00 GEAR, STARTER IDLE NO.1GEAR, STARTER IDLE NO.1
-
209181-12130 WASHERWASHER
-
308331-31126 CIRCLIPCIRCLIP
-
412615-29F00 PINPIN
-
512600-29F00 LIMITER ASSY, STARTER IDLE GEARLIMITER ASSY, STARTER IDLE GEAR
-
612618-31D01 BUSHBUSH
-
708211-10221 WASHERWASHER
-
812600-29810 CLUTCH SET, STARTERCLUTCH SET, STARTER
-
909263-25049 BEARING (25X31X19)BEARING (25X31X19)
-
1007130-06163 BOLTBOLT
