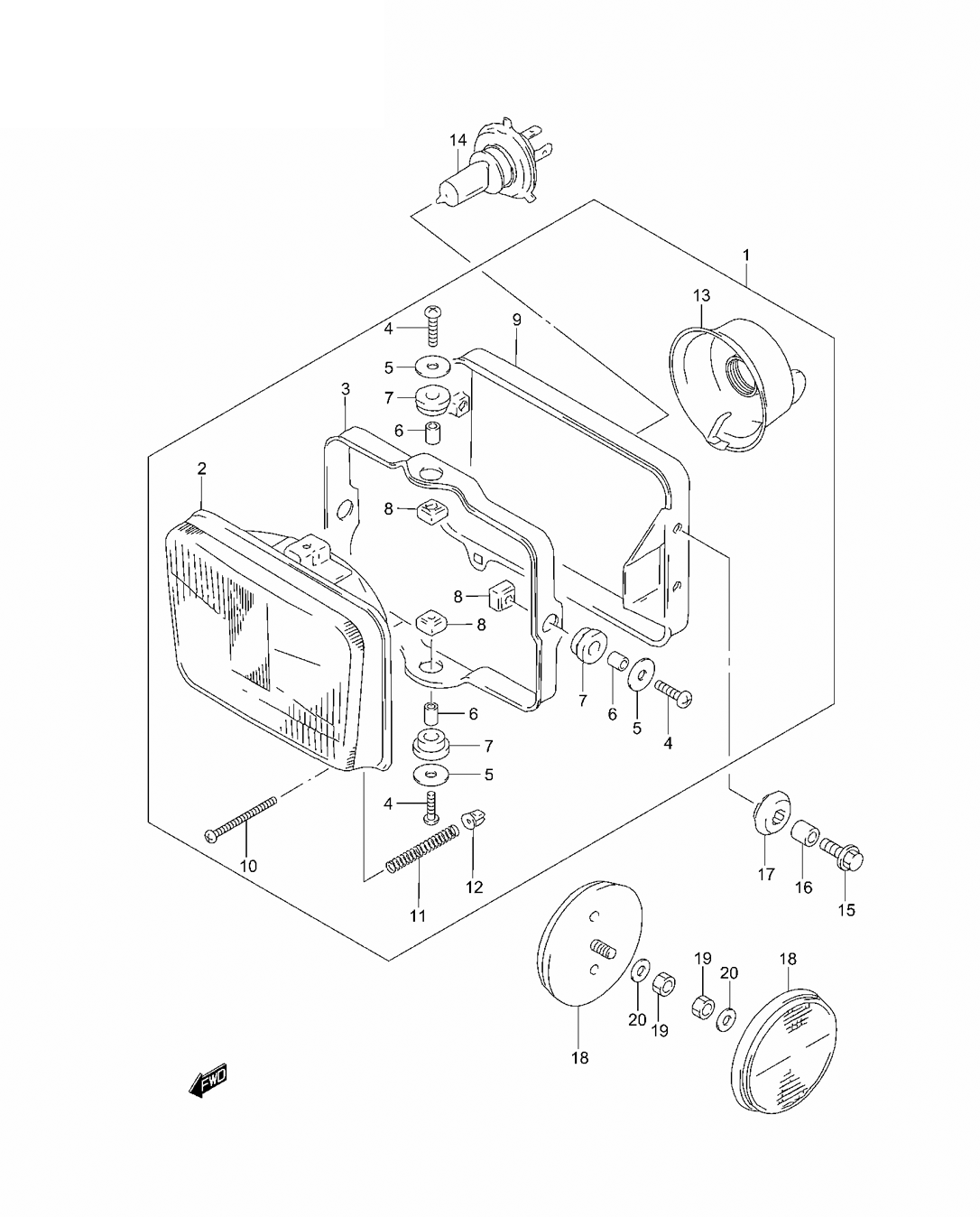

HEADLAMP для Suzuki DR650SEK1 - 2001 года выпуска
-
№АртикулНазвание
-
135100-12E31-999 HEADLAMP ASSYHEADLAMP ASSY
-
235121-12E30 UNIT ASSYUNIT ASSY
-
335130-12E20 RING, MOUNTINGRING, MOUNTING
-
402112-05163 SCREWSCREW
-
509160-05045 WASHER (5.5X18X1.0)WASHER (5.5X18X1.0)
-
635133-45230 SPACERSPACER
-
735139-45230 CUSHIONCUSHION
-
835135-45900 NUTNUT
-
935141-12E20 HOUSINGHOUSING
-
1009125-04501 SCREW, ADJUSTER (4X45)SCREW, ADJUSTER (4X45)
-
1135154-12E20 SPRING, ADJUSTINGSPRING, ADJUSTING
-
1235135-12E20 NUTNUT
-
1335173-01440 COVER, SOCKETCOVER, SOCKET
-
1409471-12060 BULB (12V,60/55W H4)BULB (12V,60/55W H4)
-
1509116-06167 BOLT (6X20)BOLT (6X20)
-
1609180-06310 SPACER (6.8X10X10)SPACER (6.8X10X10)
-
1709320-09018 CUSHIONCUSHION
-
1835950-14A10 REFLECTOR ASSY, FRONT SIDEREFLECTOR ASSY, FRONT SIDE
-
1908313-10053 NUT, FRONT SIDE RRNUT, FRONT SIDE RR
-
2008321-01053 WASHERWASHER
