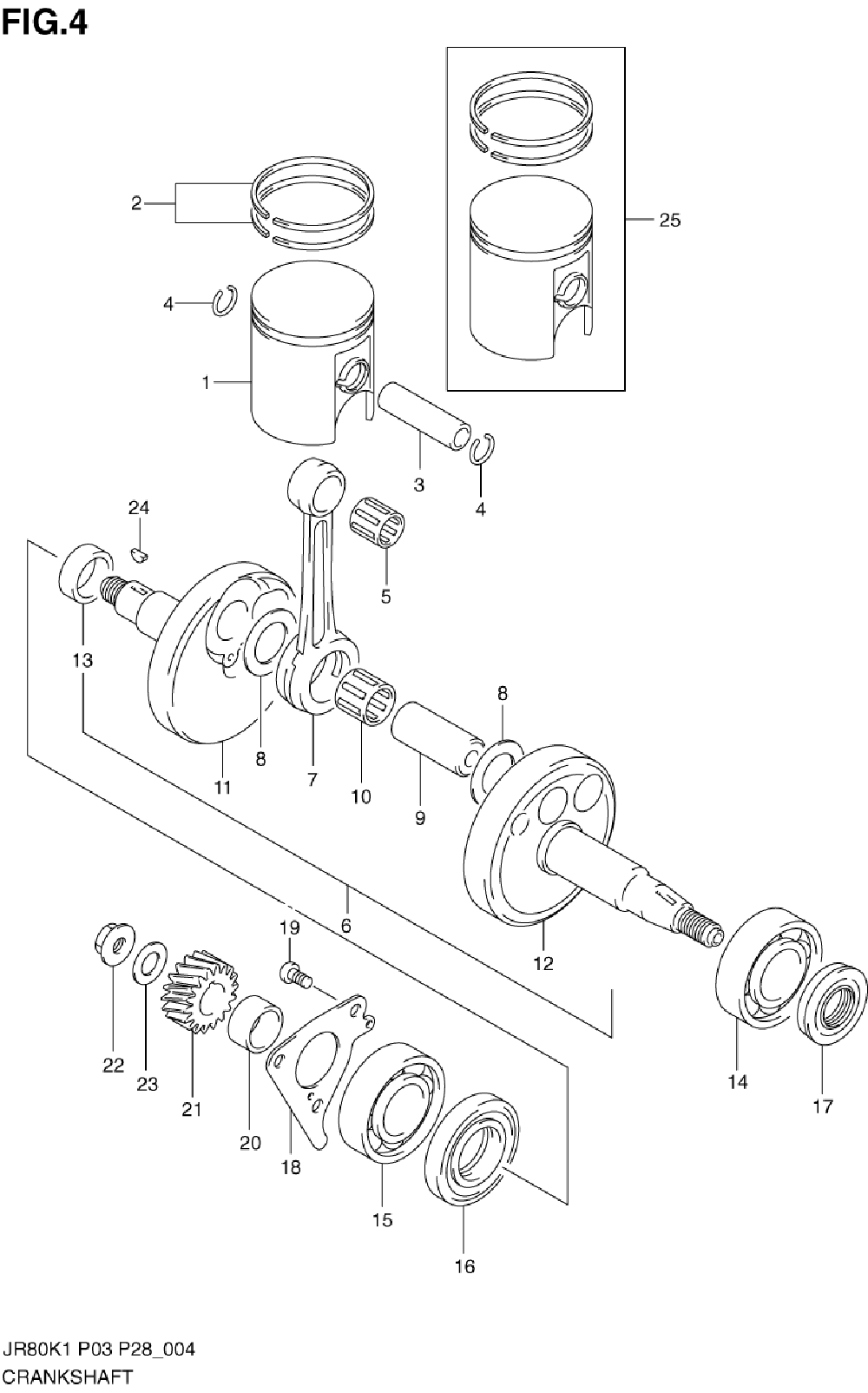

CRANKSHAFT W/ PISTONS для Suzuki JR80K1 - 2001 года выпуска
-
№АртикулНазвание
-
1-112110-46410 PISTON (STD)PISTON (STD)
-
2-112140-25631 RING SET, PISTON (STD)RING SET, PISTON (STD)
-
2-212140-25631-050 RING SET, PISTON (OS:0.5) (OPT)RING SET, PISTON (OS:0.5) (OPT)
-
2-312140-28630 RING SET, PISTON (OS:1.0) (OPT)RING SET, PISTON (OS:1.0) (OPT)
-
312151-35400 PIN, PISTONPIN, PISTON
-
409381-12001 CIRCLIPCIRCLIP
-
509263-12023 BEARING (12X16X15.8)BEARING (12X16X15.8)
-
612200-46412 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
712161-14001 ...ROD, CONNECTING...ROD, CONNECTING
-
809160-17022 ...WASHER...WASHER
-
912211-46000 ...PIN, CRANK...PIN, CRANK
-
1009263-17016 ...BEARING (17.7X22.9X14)...BEARING (17.7X22.9X14)
-
1112220-46810 ...CRANKSHAFT (RIGHT)...CRANKSHAFT (RIGHT)
-
1212261-46411 ...CRANKSHAFT (LEFT)...CRANKSHAFT (LEFT)
-
1309180-20021 ...SPACER (RIGHT)...SPACER (RIGHT)
-
14-109262-20019 BEARING (LEFT) (20X47X14)BEARING (LEFT) (20X47X14)
-
1509262-20064 BEARING (RIGHT) (20X47X14)BEARING (RIGHT) (20X47X14)
-
1609283-26015 OIL SEAL (RIGHT) (26X47X7.3)OIL SEAL (RIGHT) (26X47X7.3)
-
1709283-20034 OIL SEAL (LEFT) (20X37X8)OIL SEAL (LEFT) (20X37X8)
-
1812541-46001 RETAINER, BEARING (RIGHT)RETAINER, BEARING (RIGHT)
-
1902112-06123 SCREWSCREW
-
2009180-20059 SPACERSPACER
-
2121111-46000 GEAR, PRIMARY DRIVE (NT:19)GEAR, PRIMARY DRIVE (NT:19)
-
2209159-12005 NUTNUT
-
2309164-12020 WASHERWASHER
-
2408341-31039 KEYKEY
-
25-112100-46410-050 PISTON SET (OS:0.5) (OPT)PISTON SET (OS:0.5) (OPT)
-
25-312100-46410-100 PISTON SET (OS:1.0) (OPT)PISTON SET (OS:1.0) (OPT)
