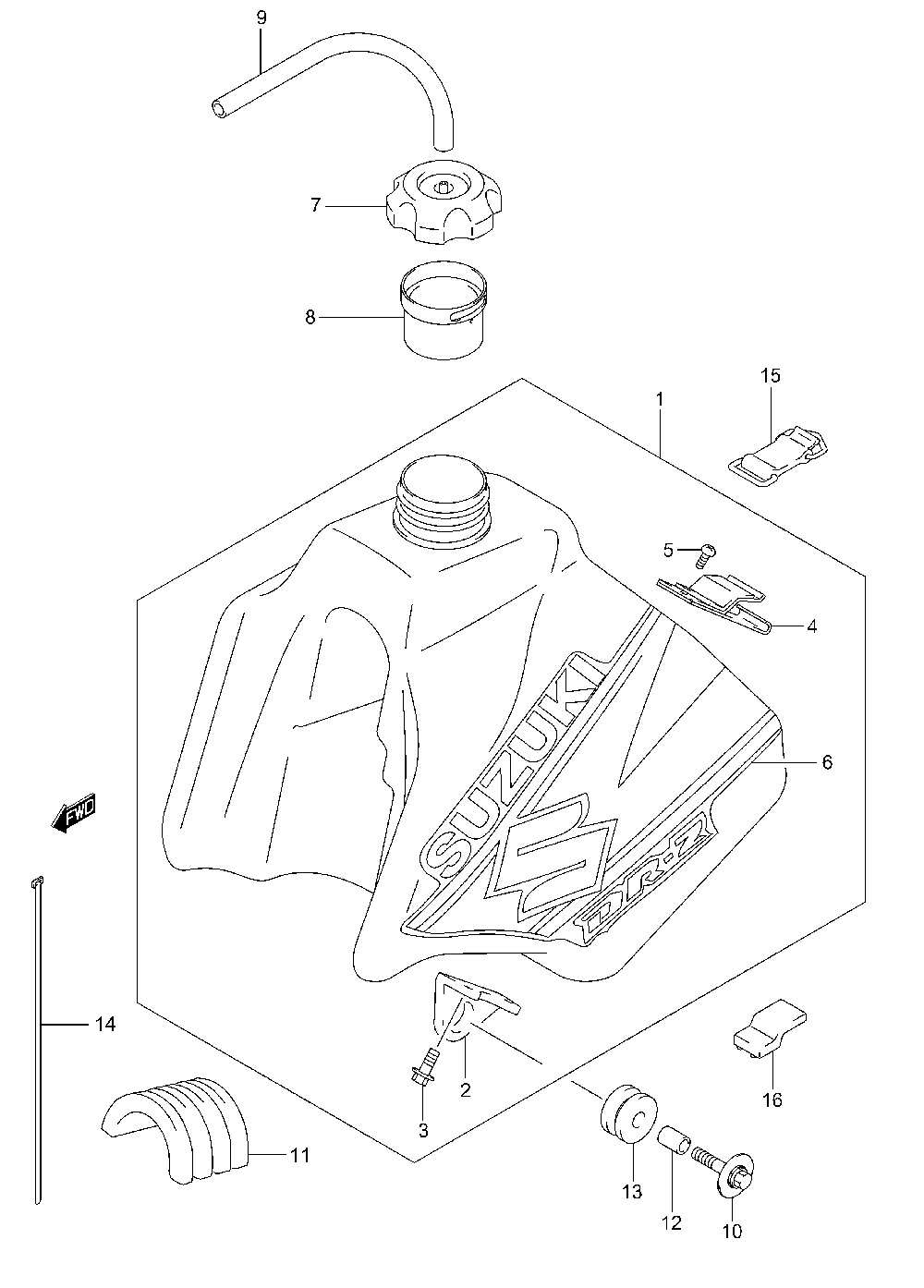

FUEL TANK для Suzuki DR-Z250K2 - 2002 года выпуска
-
№АртикулНазвание
-
144100-13ED0-YU1 TANK ASSY, FUEL (YELLOW)TANK ASSY, FUEL (YELLOW)
-
244131-27C01 BRACKET, FRONTBRACKET, FRONT
-
301547-06123 BOLT, BRACKETBOLT, BRACKET
-
444150-13E30 BRACKET, REARBRACKET, REAR
-
502112-06123 SCREW, REARSCREW, REAR
-
668110-13ED0-GY7 TAPE SET, FUEL TANKTAPE SET, FUEL TANK
-
744200-29F00 CAP SET, FUEL TANKCAP SET, FUEL TANK
-
844199-19A00 TUBE, FUEL TANKTUBE, FUEL TANK
-
909352-50823-600 HOSE (L:600!360)HOSE (L:600!360)
-
1009118-06112 BOLT, FRONTBOLT, FRONT
-
1144541-13E10 CUSHION, FRONTCUSHION, FRONT
-
1209180-06268 SPACERSPACER
-
1314762-01B01 CUSHION, UPPERCUSHION, UPPER
-
1409407-30402 CLAMPCLAMP
-
1544560-44E00 BAND, REARBAND, REAR
-
1644542-13E30 CUSHION, FUEL TANKCUSHION, FUEL TANK
