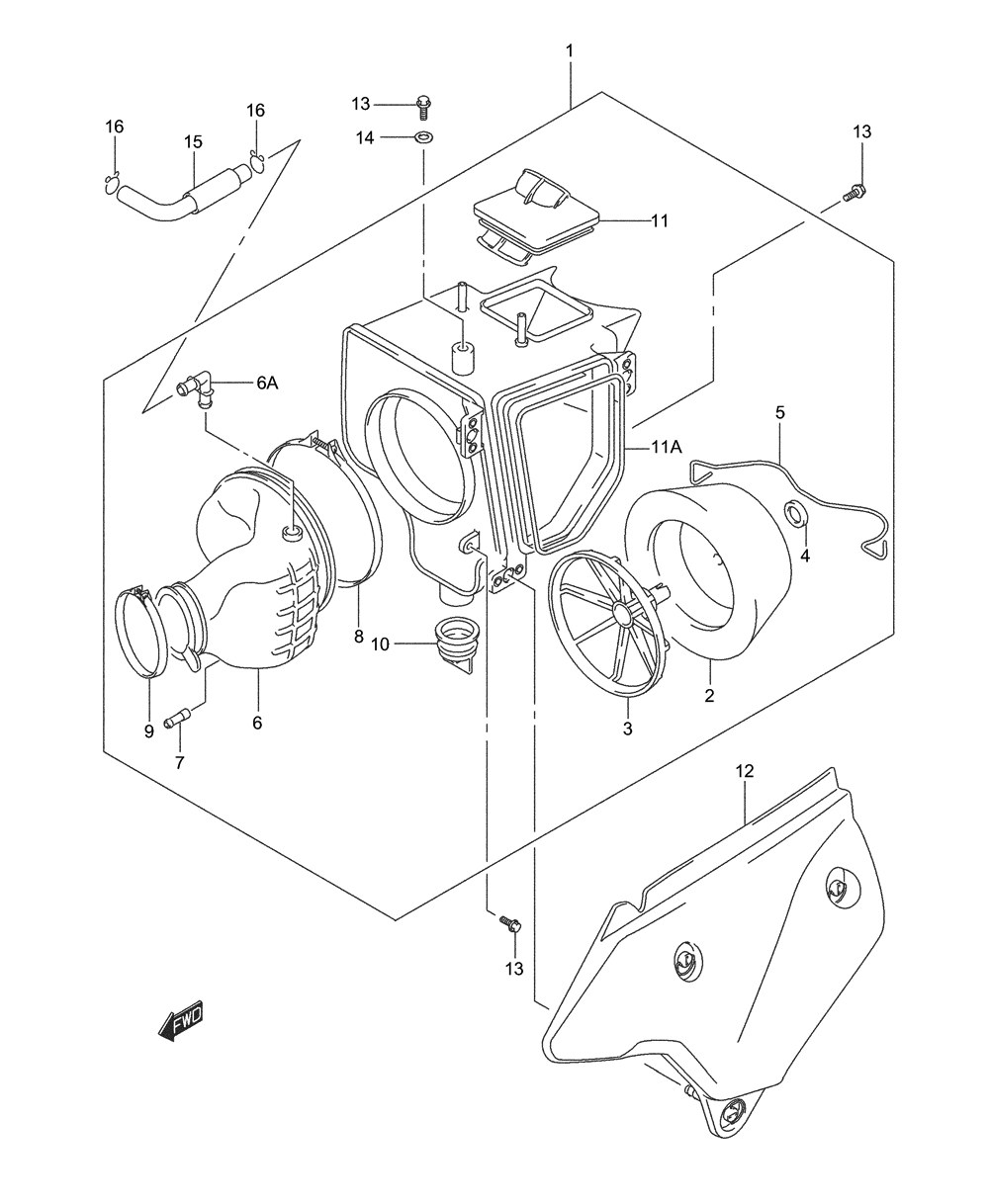

AIR CLEANER для Suzuki DR-Z400K2 - 2002 года выпуска
-
№АртикулНазвание
-
113701-29F30 CLEANER, AIRCLEANER, AIR
-
113701-29F40 CLEANER, AIRCLEANER, AIR
-
113701-29F41 CLEANER, AIRCLEANER, AIR
-
113701-29F10 CLEANER, AIRCLEANER, AIR
-
213780-44E00 FILTER, AIR CLEANERFILTER, AIR CLEANER
-
313791-44E00 HOLDER, FILTERHOLDER, FILTER
-
413796-44E00 SPACERSPACER
-
513941-29F00 SPRINGSPRING
-
613881-29F20 TUBE, OUTLETTUBE, OUTLET
-
613881-29FB0 TUBE, OUTLETTUBE, OUTLET
-
6A13858-14D10 JOINTJOINT
-
709364-06005 UNIONUNION
-
813826-29F00 CLAMPCLAMP
-
909402-60208 CLAMPCLAMP
-
909402-64203 CLAMPCLAMP
-
1013872-29F00 VALVEVALVE
-
1113891-29F30 TUBE, INLETTUBE, INLET
-
11A13746-29F00 GASKET, AIR CLEANERGASKET, AIR CLEANER
-
1213740-29F00-YU1 CAP, AIR CLEANER (YELLOW, YU1)CAP, AIR CLEANER (YELLOW, YU1)
-
1301547-06163 BOLTBOLT
-
1309111-06054 BOLTBOLT
-
1513850-29FA0 TUBE, BREATHERTUBE, BREATHER
-
1609401-14101 CLIPCLIP
