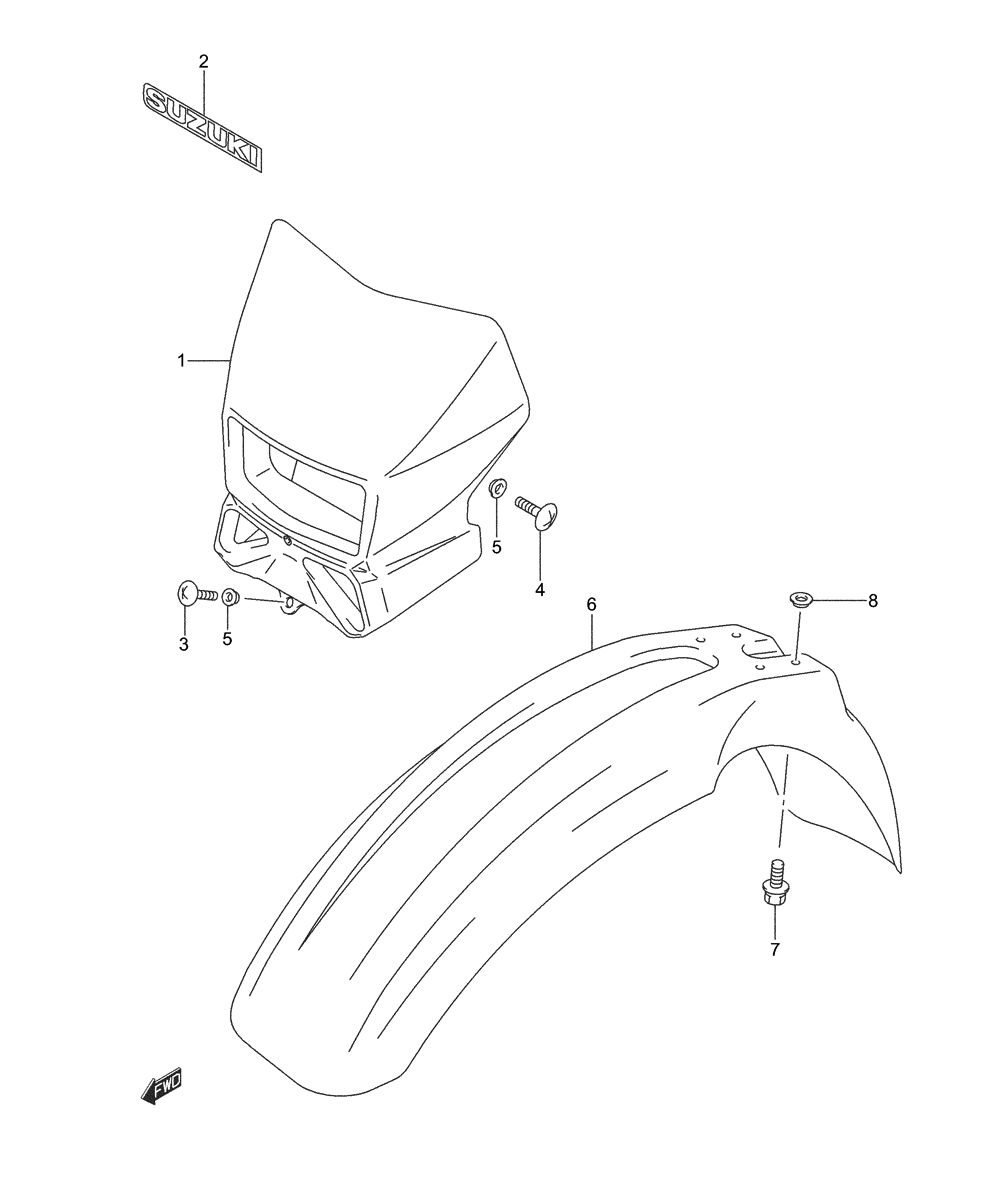

FENDER - FRONT для Suzuki DR-Z400SK2 - 2002 года выпуска
-
№АртикулНазвание
-
151811-29F10-YU1 COVER, HEADLAMP (YELLOW, YU1 FOR YU1)COVER, HEADLAMP (YELLOW, YU1 FOR YU1)
-
151811-29F10-30H COVER, HEADLAMP (WHITE, 30H FOR N9J)COVER, HEADLAMP (WHITE, 30H FOR N9J)
-
268721-29F00-GY8 EMBLEM (FOR YU1)EMBLEM (FOR YU1)
-
268721-29F00-8YM EMBLEM (FOR N9J)EMBLEM (FOR N9J)
-
302142-05123 SCREW, LOWERSCREW, LOWER
-
402142-06123 SCREW, SIDESCREW, SIDE
-
509169-06033 WASHERWASHER
-
653111-27C22-YU1 FENDER, FRONT (YELLOW, YU1 FOR YU1)FENDER, FRONT (YELLOW, YU1 FOR YU1)
-
653111-27C22-YJ4 FENDER, FRONT (BLUE, YJ4 FOR N9J)FENDER, FRONT (BLUE, YJ4 FOR N9J)
-
709116-06170 BOLTBOLT
-
809169-06073 WASHERWASHER
