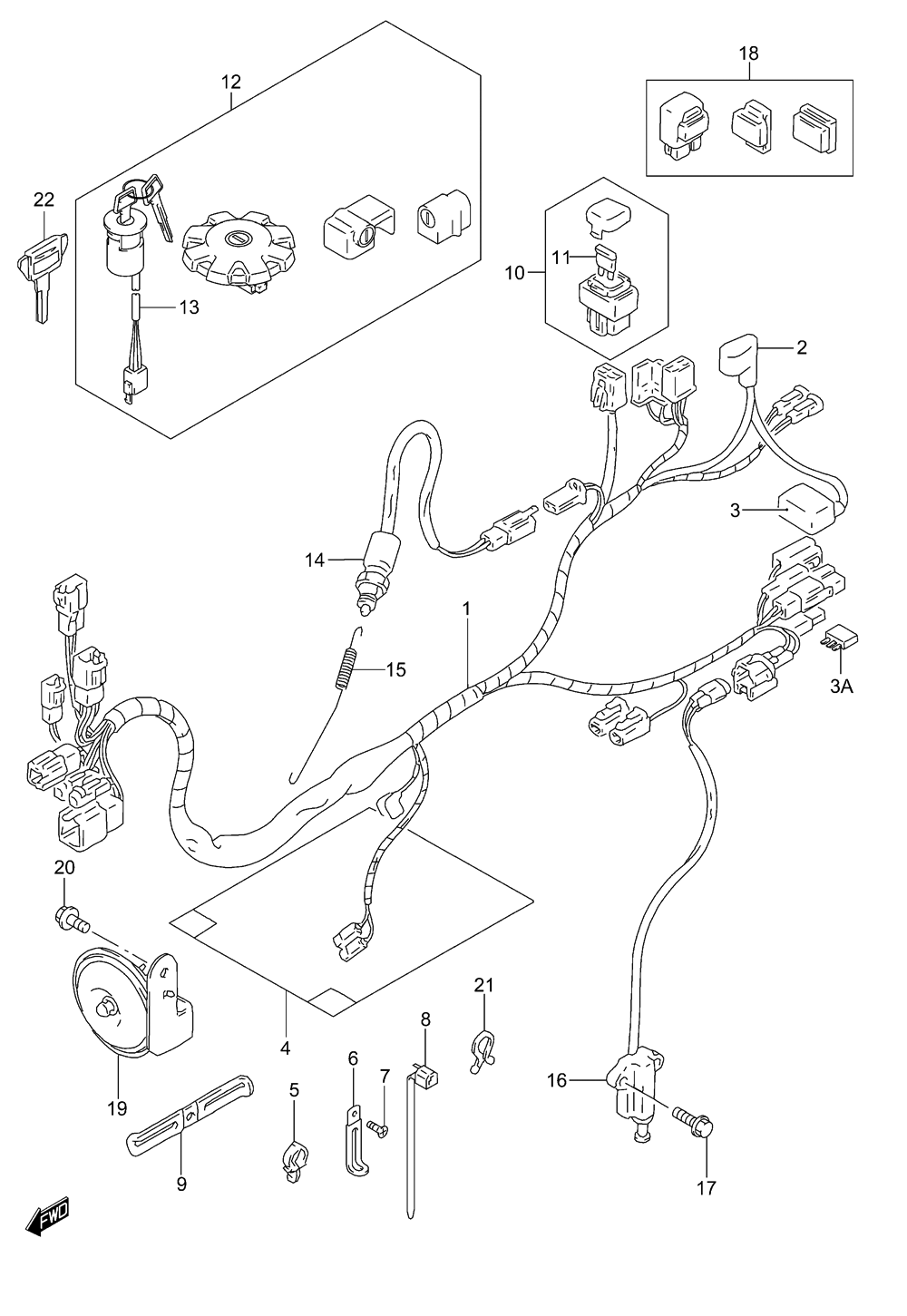

ELECTRICAL - WIRING HARNESS для Suzuki DR200SEK2 - 2002 года выпуска
-
№АртикулНазвание
-
136610-42A50 HARNESS, WIRINGHARNESS, WIRING
-
231861-10D00 CAP, RELAYCAP, RELAY
-
333624-10D00 CAP, BATTERY (+)CAP, BATTERY (+)
-
3A36611-38A00 DIODEDIODE
-
436618-15D20 COVER, WIRE HARNESSCOVER, WIRE HARNESS
-
509403-12404 CLAMPCLAMP
-
609404-06429 CLAMP (L:45)CLAMP (L:45)
-
609404-06434 CLAMP (L:95)CLAMP (L:95)
-
703541-04103 SCREWSCREW
-
809407-11401 CLAMP (L:95)CLAMP (L:95)
-
809407-14403 CLAMP (L:125)CLAMP (L:125)
-
809407-18402 CLAMP (L:165)CLAMP (L:165)
-
809407-25401 CLAMP (L:235)CLAMP (L:235)
-
936651-05301 CLAMP, STARTER MOTOR LEADCLAMP, STARTER MOTOR LEAD
-
1036740-24B01 BOX ASSY, FUSEBOX ASSY, FUSE
-
1109481-20101 FUSE (20A)FUSE (20A)
-
1237000-44820 LOCK SET (CALIF ONLY)LOCK SET (CALIF ONLY)
-
1237000-44830 LOCK SET (EXCEPT CALIF)LOCK SET (EXCEPT CALIF)
-
1337110-44A01 SWITCH ASSY, IGNITIONSWITCH ASSY, IGNITION
-
1437740-45D00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1509443-06064 SPRINGSPRING
-
1637840-44X50 SWITCH ASSY, SIDE STANDSWITCH ASSY, SIDE STAND
-
1701550-06203 BOLTBOLT
-
1838740-24X50 RELAY ASSY, SIDE STANDRELAY ASSY, SIDE STAND
-
1938500-44B00 HORN ASSYHORN ASSY
-
2001550-06123 BOLTBOLT
-
2109408-00012 CLIP, LEAD WIRECLIP, LEAD WIRE
-
2237146-03A00 KEY, BLANK (TYPE C)KEY, BLANK (TYPE C)
-
2237146-03A10 KEY, BLANK (TYPE D)KEY, BLANK (TYPE D)
-
2237146-03A20 KEY, BLANK (TYPE E)KEY, BLANK (TYPE E)
-
2237146-03A30 KEY, BLANK (TYPE F)KEY, BLANK (TYPE F)
