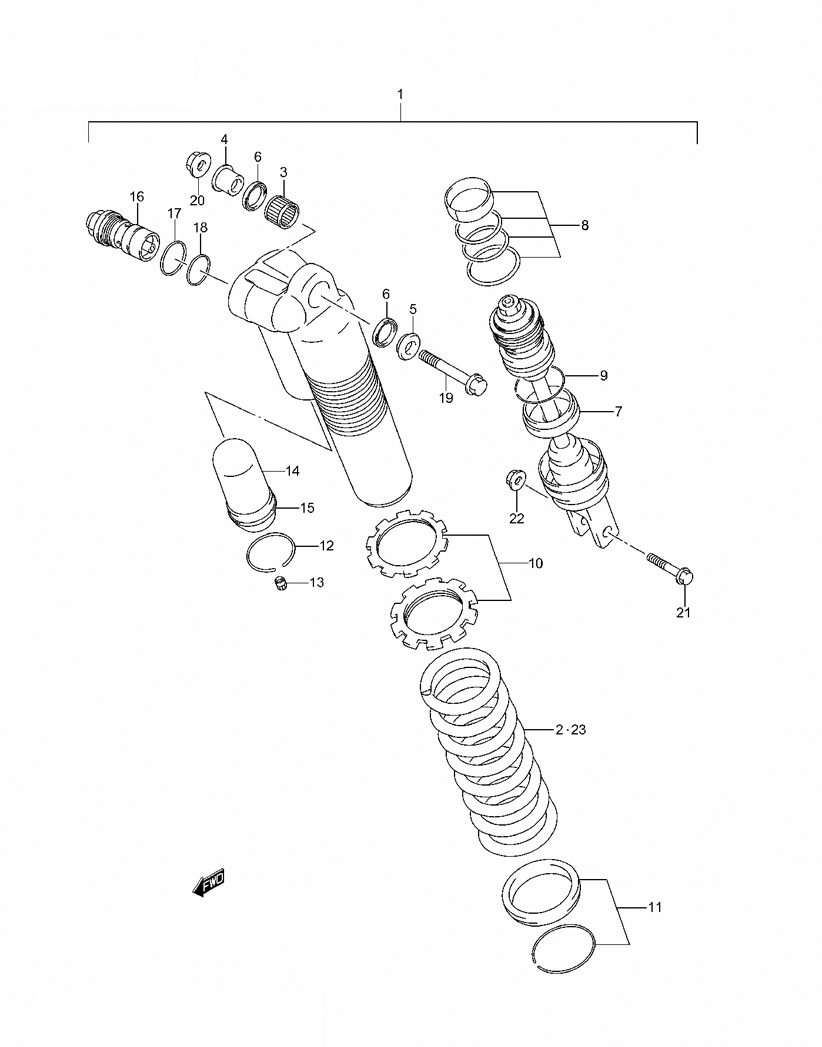

SUSPENSION - SHOCKS REAR для Suzuki RM125K2 - 2002 года выпуска
-
№АртикулНазвание
-
162100-36F50-37W ABSORBER ASSY, REAR SHOCK (RED) (EXCEPT CANADA)ABSORBER ASSY, REAR SHOCK (RED) (EXCEPT CANADA)
-
162100-36F40-37W ABSORBER ASSY, REAR SHOCK (RED) (CANADA ONLY)ABSORBER ASSY, REAR SHOCK (RED) (CANADA ONLY)
-
262211-36F10 SPRING (K=4.8)SPRING (K=4.8)
-
309263-16033 BEARING (16X22X12)BEARING (16X22X12)
-
462684-36F00 SPACER, BEARING RIGHT HANDSPACER, BEARING RIGHT HAND
-
562685-36F00 SPACER, BEARING LEFT HANDSPACER, BEARING LEFT HAND
-
609284-16005 SEAL, DUST RIGHT HANDSEAL, DUST RIGHT HAND
-
762120-36F40 ROD, PISTONROD, PISTON
-
862150-36EB0 O RING SETO RING SET
-
962279-36E80 RING, STOPPERRING, STOPPER
-
1062190-36F00 ADJUSTER SETADJUSTER SET
-
1162220-36F00 SPRING SEAT SETSPRING SEAT SET
-
1262278-36E00 RING, STOPPERRING, STOPPER
-
1351294-20400 CAPCAP
-
1462273-36F00 BLADDERBLADDER
-
1562275-36E00 CAP CHAMBERCAP CHAMBER
-
1662130-36F10 BOLT, PLUGBOLT, PLUG
-
1662130-36F30 BOLT, PLUGBOLT, PLUG
-
1762131-28E00 O RINGO RING
-
1851174-43D00 O RINGO RING
-
1909103-10329 BOLTBOLT
-
2009159-10058 NUTNUT
-
2109103-10325 BOLTBOLT
-
2209159-10067 NUTNUT
-
2362211-36EB0 SPRING (SOFT, K=4.6) (OPT)SPRING (SOFT, K=4.6) (OPT)
-
2362211-36F00 SPRING (HARD, K=5.0) (OPT)SPRING (HARD, K=5.0) (OPT)
-
2362211-36E80 SPRING (HARD, K=5.2) (OPT)SPRING (HARD, K=5.2) (OPT)
