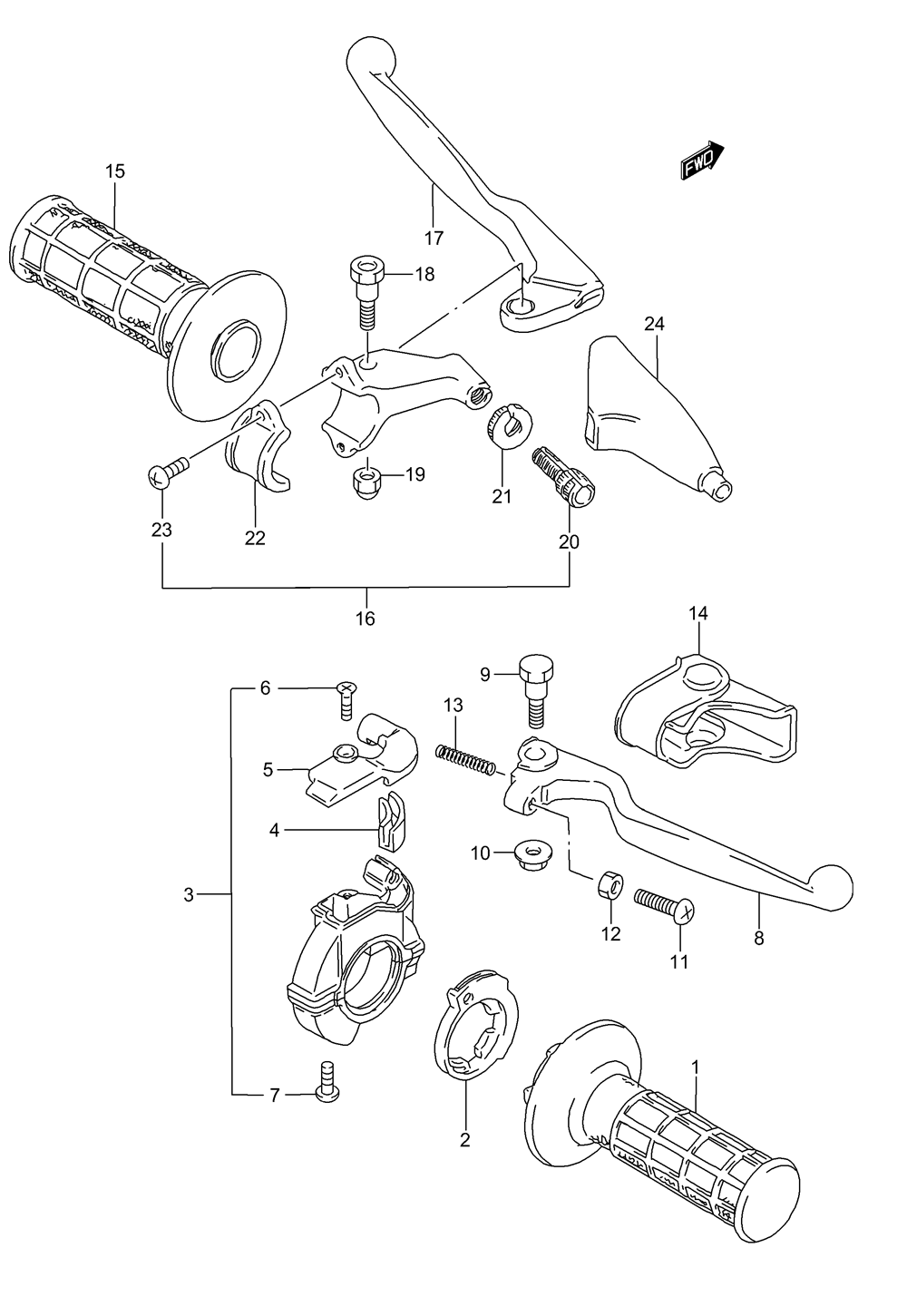

HANDLEBAR - LEVERS для Suzuki RM85K2 - 2002 года выпуска
-
№АртикулНазвание
-
157110-27C00 GRIP, THROTTLEGRIP, THROTTLE
-
257114-20410 ROTOR, THROTTLEROTOR, THROTTLE
-
357100-20411 CASE ASSY, THROTTLECASE ASSY, THROTTLE
-
457122-20410 GUIDE, PIECEGUIDE, PIECE
-
557129-20411 COVERCOVER
-
602122-04103 SCREWSCREW
-
702112-05167 SCREWSCREW
-
857421-27C00 LEVER, BRAKELEVER, BRAKE
-
957431-14500 BOLTBOLT
-
1008316-10063 NUTNUT
-
1157431-14511 SCREWSCREW
-
1208310-00053 NUTNUT
-
1357318-14502 SPRINGSPRING
-
1457341-14501 COVER, BRAKE LEVERCOVER, BRAKE LEVER
-
1557211-27C00 GRIP, LEFT HANDGRIP, LEFT HAND
-
1657500-14300 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
1757620-14300 LEVER, CLUTCHLEVER, CLUTCH
-
1857431-14301 BOLTBOLT
-
1908319-21068 NUTNUT
-
2057441-14210 ADJUSTER, CABLEADJUSTER, CABLE
-
2157442-14200 NUTNUT
-
2257512-14300 BRACKETBRACKET
-
2309125-05102 SCREWSCREW
-
2457341-40001 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
